Product Details:
Payment & Shipping Terms:
|
| Power: | 22 Watt | IP Class: | IP54 |
|---|---|---|---|
| Color Tempcolor Temp: | 2800-6500K | ||
| High Light: | fluorescent led tube,led light tubes |
||

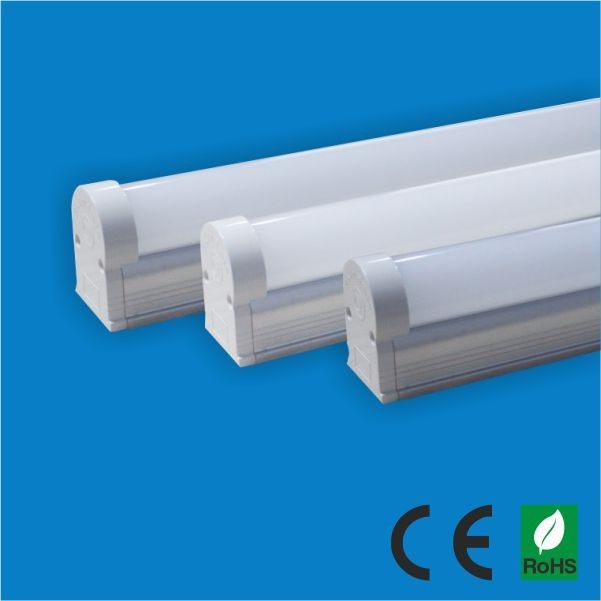

SMD5630 sumsung led chip 1500mm LED tube lamp 22W Light , 144pcs Leds
Quick Detail:
1. power: 22W
2. Size: D16*1500mm
3. LM: 3100
4. Color temp:2800-6500K
5. IP class:IP54
Description:
Size: D16*1500mm
LED quantity(pcs): 144
power- supply efficiency : 85%-87%
PF value: 0.97 above
LED angle: 120
color temp: 2800-6500K
cover type: transparant and frosted
lumen LM(per 6000k): 3100
life span: 50000H
work Temp: -30-45℃
Specification:
| Type | 1.5m(5 feet) |
| Size | D16*1500mm |
| Led type | Smd5630 |
| Led quantity | 144 |
| Voltage | 85-277 |
| PF | 0.97 |
| Power | 22W |
| Ra | 70-80 |
| Led brand | Sumsung |
Product detail:
Competitive advantages:
1. Al shell:
high quality aluminum Alloy ,safe and durable, sophisticated technology thermal conductivity is strong.
2. lamp base:
high quality PC material, good flam retardant performance, anti-aging do not change color, effectively
prevent oxidation of the electronic shock.
3. lamp shade:
Delicate and high quality PC lampshade, light transmittance as high as 98%, refraction light even high
degree of safety service life is long.
4. lamp bead:
led super bright light bead, avirulent environmental protection, high conversion rate, lamp bead uniform
distribution the heat better.
Our Package:
25pcs/carton
cartion Size: 690*25*25
volume weight:8.0KG
Gross weight:4.6KG
the install procedure as below:
Applications:
This led tube has the widely use:
the most important use for the commercial lighting, just as the office, supermarket, parking, it will
supply us the same power but just use the one third of the traditional fluorescent tube, so it can help us
save the power for the commercial environment,
Certification:
FAQ:
Q:Does LED tube T5 really have 50,000 hours lifespan?
A:50,000 or longer lifespan is only theroy from lab test.But due to working enviroments are different from in lab,actual lifespan is only <=30,000hours.
Especially for LED high bays and LED floods,the power is very huge,and lots of heat cause LEDs junction temperature very high.And light decay will be higher than low power LED products.
Our LED tubes are in the market over 7 years,and according to feedbacks from our clients,nearly no faluire in 4-5 years.
Q:For same power,why different suppliers with different brightness?
A:Different chips,or same chip but different brightness version.The brightness will be different.But for same chip and same brightness version,the brightness will be slight difference.But please make clear the difference between LEDs and lamp fixture.
For example,18W LED tube light,LEDs brightness is 2200lm,true fixture brightness is only 1700-1900lm(even lower).but many suppliers type 2200lm in their data sheet,please note this.
Q:What is CRI?
A:CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers write a high data to attract clients,please note.
Q:What is PF and efficiency?
A:PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher cost.
Q:Is there cheap shipping cost to import to our country?
A:For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q:Can we get support if we have our own market position?
A:Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
For any further information,please feel free to contact,we will send you PDF document to show full issues you care on LED business.
