Product Details:
Payment & Shipping Terms:
|
| High Light: | t5 led fluorescent tube,t5 led lamps |
||
|---|---|---|---|

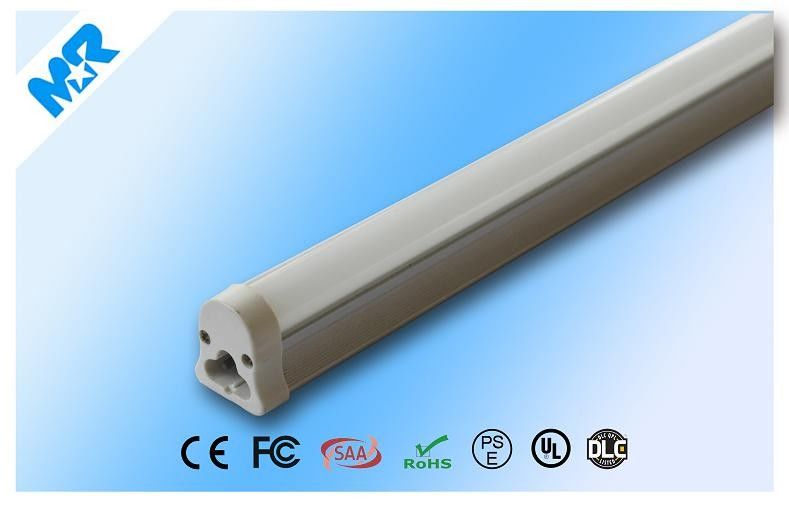

SMD2835 1200mm 17W T5 LED Tube Light Energy Saving 5000K / 6000K 130lm / w
Products Advantages of t5 fixture 18W with 2 Years Warranty
1.Longer life time 30,000hrs.
2.Higher luminous efficacy,80-120lm/w.
3.Lower luminous decay, 10% at 2000hrs.
4.Lower energy usage, up to 50% energy saving.
5.Environmental friendly, no mercury content.
6.Instant start, no delay and flickers.
7.IC Driver, constant current, safety guaranteed.
8.Passed CE, RoHS, ERP, SAA certification.
9.More attractive price.
10.No flash.
Products datasheet of t5 fixture 18W with 2 Years Warranty
Electrical data
| LED chips | SMD 2835 96pcs |
| Rated wattage | 18W ± 0.5W |
| Nominal voltage | AC85-265V |
| Operating frequency | 50/60Hz |
| Power factor | >0.9 |
| Claimed equiv. conventional lamp power | 40W |
Photometrical data
| Beam angle | 120° |
| Nominal luminous flux | 1800lm |
| Rated luminous flux | 1800lm |
| Color temperature | 3000-6500K |
| Light color as per EN 12464-1 | Warm Light - Day Light |
| Standard deviation of color matching | <6.0sdcm |
| CRI(Ra) | 80 |
Dimensions
| Overall length | 1178.0mm |
| Diameter | 23.0mm |
Life span
| Nominal lamp life time | 30,000hrs |
Additional product data
| Energy efficiency class | A |
| Material | Aluminum |
Items No.
| Type | power | Dimension(mm) | CRI | LED chips | voltage | Power factor | luminous flux | Color temperature | Material | base | certifications |
| T5 5w | 5w | 300*23*34 | 80 | SMD 2835 24pcs | 85-265V | >0.9 | 400lm | 3000-6500K | Aluminum | G13 | CE ROHS |
| T5 9w | 9w | 572*23*34 | 80 | SMD 2835 48pcs | 720lm | ||||||
|
T5 12w |
12w | 880*23*34 | 80 | SMD 2835 72pcs | 960lm | ||||||
| T5 18w | 18w | 1178*23*34 | 80 | SMD 2835 96pcs | 1440lm | ||||||
| T5 22w | 22w | 1478*23*34 | 80 | SMD 2835 144pcs | 1760lm | ||||||
Products Feature of t5 fixture 18W with 2 Years Warranty
1. can directly repalce T5 Fluorescent tubes.
2. high lumen and constant current technology.
Products Advantage of t5 fixture 18W with 2 Years Warranty
1. Super energy saing, long life lasting.
2 No flickers, no UV radiations, environmentalfriendly.
3 Compatible to the traditional fixtures, easy toreplace.
Products of t5 fixture 18W with 2 Years Warranty
1).Hotels, Hospitals, Factories & Offices
2).Commercial Complexes
3).Conference/Meeting rooms
4).Residential/Institution Buildings
5).Schools, Colleges & Universities
