Product Details:
Payment & Shipping Terms:
|
Size: | 1200mm/4ft | LED Chip: | SMD2835 96pcs |
---|---|---|---|
CRI: | 80 | Wattage: | 15w |
Lumen: | 1350-1600lm | Material: | Aluminum+PC |
Warranty: | 3 Year | ||
High Light: | led tube lights for home,white tube light |

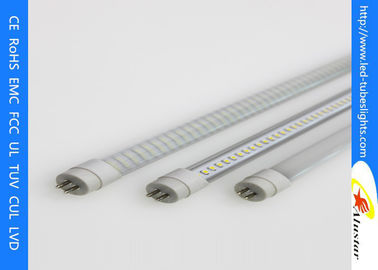

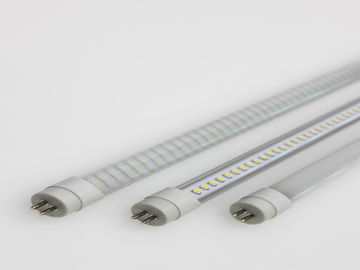

Cool White 15w LED T5 Tube Light Fixtures 4 foot For LED Light uk Market CE ROSH Approved
Product Parameter:
Note: We can do the CCT and Ra according to customer's demand.
Item No. |
ALS-TL01/T5-23 |
||||
LED Tube |
T5 tube |
||||
LED Chip |
SMD2835 |
||||
Cover | Frosted Oval | ||||
Power |
15W |
||||
Length |
1200mm/4ft |
||||
Light output |
1350-1600lm |
||||
Leds | 80 | ||||
Body Material |
PC+aluminium |
||||
CRI |
≥80 |
||||
Color Tem |
3000K/4000K/5000K |
||||
Power Supply |
AC 100-240V |
||||
Working |
50/60Hz |
||||
Power Factor |
>0.98 |
||||
Working Temp. |
-20~35℃ |
||||
Working Lifetime |
30,000 hours |
||||
Certificate |
CE,RoHS |
The T5 Series:
Item No. |
ALS-TL02/T5-22 |
ALS-TL03/T5-22 |
LED Tube |
T8 tube |
T8 tube |
LED Chip |
SMD2835 |
SMD2835 |
Power |
20W |
22W |
Length |
1200mm/4FT |
1500mm/5FT |
Light output |
1900-2200lm |
2100-2300lm |
Body Material |
PC tube+aluminium |
PC tube+aluminium |
CRI |
≥80 |
≥80 |
Color Temp. |
3000K/4000K/5000K |
3000K/4000K/5000K |
Power Supply |
AC 100-277V |
AC 100-277V |
Working |
50/60Hz |
50/60Hz |
Power Factor |
>0.95 |
>0.95 |
Working Temp. |
-20~35℃ |
-20~35℃ |
Working Lifetime |
30,000 hours |
30,000 hours |
Certificate |
CE,RoHS, |
CE,RoHS, |
Product Description:
1.Energy saving: low power consumption, low heat, high level of brightness, uniform light-emitting, energy-saving about 80%.
2. Long lifespan: the normal lifespan of LED tubes is above or equal to 30.000H.
3. No twinkling: rapid start, steady work, no noise, no twinkling can effectively protect the eyes.
4. Good heat disspation:Use the high quality aluminum PCB for LED’s better heat dissipation.
5. Warranty time : 3 years(the range of colour temperature:2800K-6500K.
6. Color rendering index(CRI)is optional , for example we can make Ra>80.
We Provide You With
> the best pricing
> the finest products
> the most complete warranties
1. Accept OEM&ODM.
|
Application:
1. Can be used in office, conference room, lecture hall, reception room, supermarket, shops, exhibition hall, restaurant, hotel.
2. Can also be used in bublic places such as library, school, tunnel, metro, bus, train, bus station, railway station, airport etc.
3. Living room, bedroom, kitchen, washroom; school, university, hospital, hotel;
4. Conference room, meeting room, show room, showcase;
5. Commercial complexes; Factory, plant, warehouse, office.
T5 LED Installation :
1. cut off the power supply before installation;
2. Install lamp stand and T5 lamp holder first with the same length;
3. Lamp working voltage is AC100-240V.
4. Connect the two wire terminals located at the side of the lamp to the electricity L and N respectively;
5. Do not supply the power to both pins on the same end simultaneously
