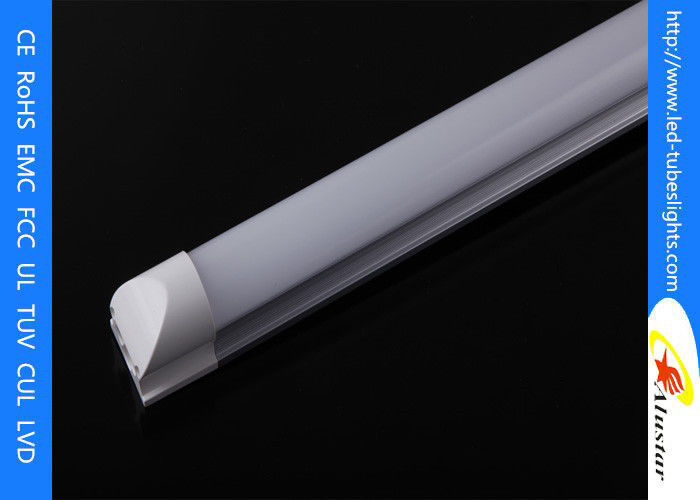

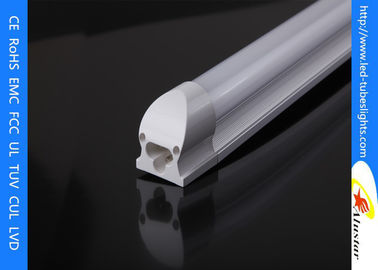

Energy Conservation Warm White 1200mm LED Tube Light T5 80Ra , Waterproof LED Tube

Energy Conservation Warm White 1200mm LED Tube Light T5 80Ra , Waterproof LED Tube
Energy Conservation Warm White 1200mm LED Tube Light T5 80Ra , Waterproof LED Tube Energy Conservation Warm White 1200mm LED Tube Light T5 80Ra , Waterproof LED Tube

Large Image :  Energy Conservation Warm White 1200mm LED Tube Light T5 80Ra , Waterproof LED Tube

Product Details:
Place of Origin: jiangsu
Brand Name: Alustar
Certification: CE,RoHS
Model Number: ALS-TL01/T5-4
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Fobshanghai US $ 5 - 8 / Piece
Packaging Details: paper tube+carton or according to customers' requirements
Delivery Time: 20-35 working days
Payment Terms: Western Union, L/C, T/T, D/A, MoneyGram
Supply Ability: 5000 Piece/Pieces per Day
Detailed Product Description
Size: 1200*27*34mm LED Chip: SMD3014
CRI: 80 Wattage: 13w
Lumen: 960-1140lm Material: Aluminum+ PC
Warranty: 3 Year
High Light:

white tube light

,

1200mm led tube

180 Degree Beam Angle LED Tube Wholesale Better Heat Dissipation LED T5 Tube Light  4ft Warm Light





Specifications:



1. Item no.: ALS-TL01/T5-4

2. Dimension:T5 1200*27*34mm

3. Led Type: Chip SMD3014

4. Input Voltage: AC 100-240V

5. Power: 13W

6. Luminous Flux :960-1140lm

7. Light Efficiency: 70-80 lm/W

8. CRI: >80



Product Description:



1. Own complete production lines to ensure the best quality and cost control.Aluminum housing: Better heat dissipation&longer lifetime for the LED’s.

2. No flicking or dazzing during operating.

3. Patent design for structure,rotatable end cap and isolated power supply.

4. Lower constant current to drive the LED to insure the lifespan and light decay.

5. 3 years warranty.

6. Good aluminum alloy material for better heat dissipation, and transparent, striped, frosted PC covers are available.

7. Accept OEM&ODM.

8. Instant start without flicker led tube light.





Product Parameter:



Part No.  T5 13W 1200 4FT
Optics Parameters  Light Source  132pcs SMD2835
Luminous Flux(lm) 960-1140m
CCT(K)  WW(3000K)/NW(4000K)/CW(6000K)
CRI(Ra)  more than 80Ra
Beam Angle  180 degree
Light Attenuation ratio (%)  less than 3% in 30,000Hrs
Lifespan (Hrs)  more than 50,000Hrs
Electric Parameters  Input Voltage(V)  100-240V AC
Frequency(Hz)  50/60 Hz
Input Current(mA)  90mA (@ 220 Vac )
Total Power(W)  13W
Power Factor  0.9
Turn-on Time(S)  less than 0.05 S (@ 220Vac)
Dielectric Voltage Withstand Test  3750Vac/1min
Structure Parameters  Material  Aluminum+ PC
Size(mm)  1200*27mm
Weight(kg)  0.42kg
Water Proof(IP)  Indoor Use Only
Integrated Parameters Operating Temperature -20℃~40℃Centigrade
Storage Humidity 0% ~ 95%R.H.
Safety Requirement CE
Environmental Directives RoHS




Application:



Can be used in office, conference room, lecture hall, reception room, supermarket, shops, exhibition hall, restaurant, hotel.

Can also be used in bublic places such as library, school, tunnel, metro, bus, train, bus station, railway station, airport etc.





T5 LED Installation :


1. cut off the power supply before installation;
2. Install lamp stand and T5 lamp holder first with the same length;
3. Lamp working voltage is AC100-240V.
4. Connect the two wire terminals located at the side of the lamp to the electricity L and N respectively;
5. Do not supply the power to both pins on the same end simultaneously



The Contrast Of CCT:



Energy Conservation Warm White 1200mm LED Tube Light T5 80Ra , Waterproof LED Tube 0
