Product Details:
Payment & Shipping Terms:
|
| Size: | 900*27*34mm | LED Chip: | SMD3014 |
|---|---|---|---|
| CRI: | 80 | Wattage: | 10w |
| Lumen: | 700-850lm | Material: | Aluminum+ PC |
| Warranty: | 3 Year | ||
| High Light: | led tube lights for home,white tube light |
||

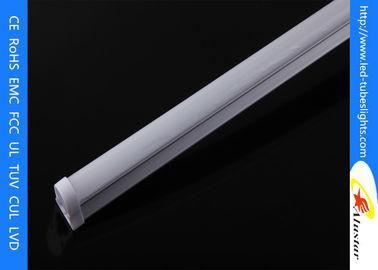

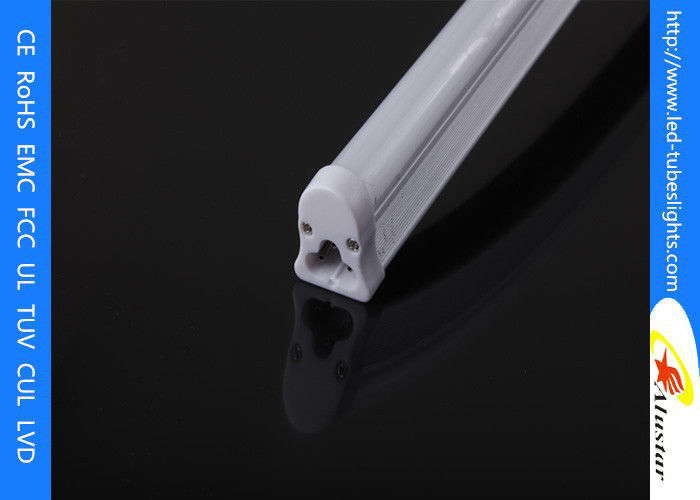

10W LED Tube Lamp 180 Degree Beam Angle Energy Saving LED T5 Tube Light 3ft With 2700-6500K Color Temperture
Specifications:
1. Item no.: ALS-TL01/T5-3
2. Dimension:T5 900*27*34mm
3. Led Type: Chip SMD3014
4. Input Voltage: AC 100-240V
5. Power:10W
6. Luminous Flux: 700-850lm
7. Light Efficiency: 70-80 lm/W
8. CRI: >80
| Item no | Dimension | Led Type | Power | Luminous | Light Efficiency | CRI |
| ALS-TL01/T5-3 | T5 900*27*34mm | Chip SMD3014 | 10W | 700-850lm | 70-80 lm/W | >80 |
Product Parameter:
| Part No. | T5 10W 900 3FT | |
| Optics Parameters | Light Source | 88pcs SMD2835 |
| Luminous Flux(lm) | 700-850lm | |
| CCT(K) | WW(3000K)/NW(4000K)/CW(6000K) | |
| CRI(Ra) | more than 80Ra | |
| Beam Angle | 180 degree | |
| Light Attenuation ratio (%) | less than 3% in 30,000Hrs | |
| Lifespan (Hrs) | more than 50,000Hrs | |
| Electric Parameters | Input Voltage(V) | 100-240V AC |
| Frequency(Hz) | 50/60 Hz | |
| Input Current(mA) | 90mA (@ 220 Vac ) | |
| Total Power(W) | 8W | |
| Power Factor | 0.9 | |
| Turn-on Time(S) | less than 0.05 S (@ 220Vac) | |
| Dielectric Voltage Withstand Test | 3750Vac/1min | |
| Structure Parameters | Material | Aluminum+ PC |
| Size(mm) | 900*27mm | |
| Weight(kg) | 0.42kg | |
| Water Proof(IP) | Indoor Use Only | |
| Integrated Parameters | Operating Temperature | -20℃～40℃Centigrade |
| Storage Humidity | 0% ~ 95%R.H. | |
| Safety Requirement | CE | |
| Environmental Directives | RoHS |
|
Application:
Can be used in office, conference room, lecture hall, reception room, supermarket, shops, exhibition hall, restaurant, hotel.
Can also be used in bublic places such as library, school, tunnel, metro, bus, train, bus station, railway station, airport etc.
Product Description:
|
1. Own complete production lines to ensure the best quality and cost control.Aluminum housing: Better heat dissiation&longer lifetime for the LED’s. 2. No flicking or dazzing during operating. 3. Patent design for structure,rotatable end cap and isolated power supply. 4. Lower constant current to drive the LED to insure the lifespan and light decay. 5. 3 years warranty. 6. Good aluminum alloy material for better heat dissipation, and transparent, striped, frosted PC covers are available. 7. Accept OEM&ODM. 8. Instant start without flicker led tube light. |
T5 LED Installation :
1. cut off the power supply before installation;
2. Install lamp stand and T5 lamp holder first with the same length;
3. Lamp working voltage is AC100-240V.
4. Connect the two wire terminals located at the side of the lamp to the electricity L and N respectively;
5. Do not supply the power to both pins on the same end simultaneously
