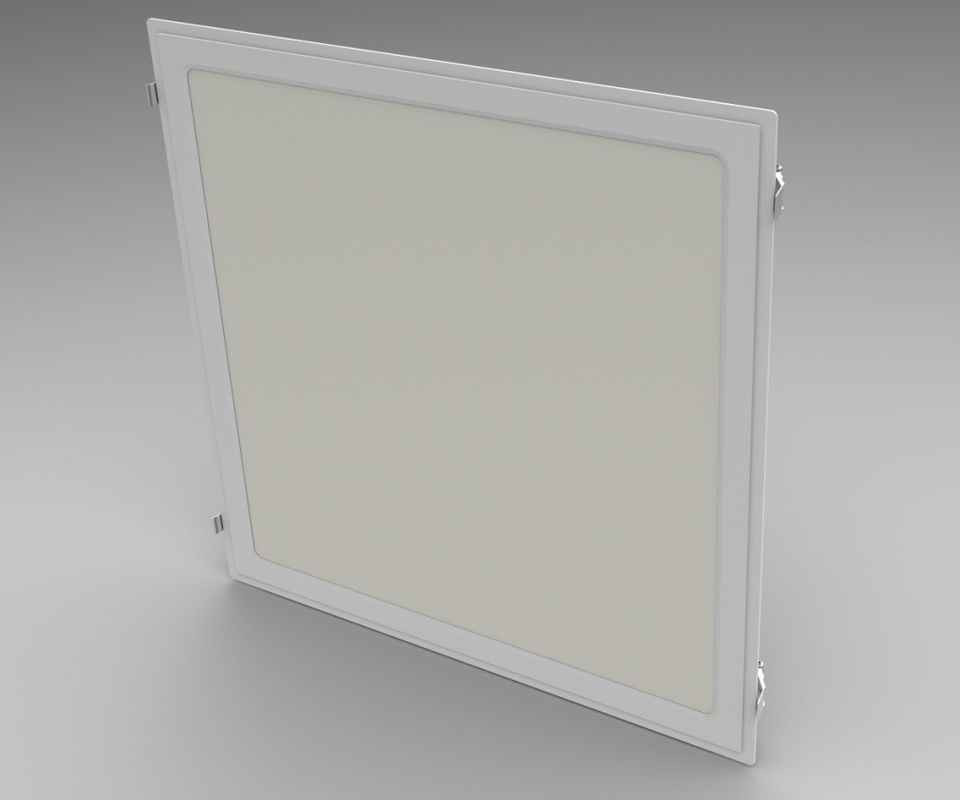

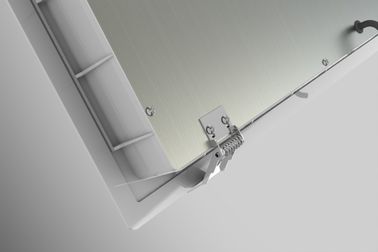

Square LED Panel Light 600 x 600

Square LED Panel Light 600 x 600
Square LED Panel Light 600 x 600 Square LED Panel Light 600 x 600 Square LED Panel Light 600 x 600 Square LED Panel Light 600 x 600

Large Image :  Square LED Panel Light 600 x 600

Product Details:
Place of Origin: China
Brand Name: Ground Halo
Certification: TUV, CE, RoHs
Model Number: GH-PLB-6060-45W
Compatible: SAA, UL
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: EXW / FOB / CNF / CIF
Packaging Details: Packing with foam and bubble wrap
Delivery Time: 7 Days
Payment Terms: T/T, PayPal, Western Union,
Supply Ability: 10,000PCS Per Month
Detailed Product Description
High Light:

led panel lights for home

,

led ceiling panels

Square LED Panel Light 600 x 600





Quick Detail:



  • Product Model: GH-PLB-6060-45W
  • Luminous Way: Backlit
  • Wattage: 45W
  • Protection Rate: IP50
  • Color Temperature: Warm White / Nature White / Cold White
  • Life Span: 50,000H
  • Certificate: CE, RoHs, TUV, GS
  • Compatible: SAA, UL
  • Voltage: AC85V-265V 50/60HZ
  • Warranty: 3 Years
  • Product Size: 595mm x 595mm x 43mm
  • Led Brand: Epistar
  • LED Source: SMD3014
  • Diffuser: Japanese Import
  • Lighting Transmittance Efficiency: Up to 93%
  • Driver: Isolated Constant Current Driver (GS/SAA/CE approval)







Description:



Our Elegant and Elaborately designde Backlit LED panel light is mainly intended to reducing enrgy consumption and landscaping.High brightness, soft light and no need for guide plate is the main characteriistic of this series of backlit panel. The high Lighting Efficency can up to 100-110lm/w. Easy to install and maintain to repllace the conventional lights, like fluorescent lamp, energy saving lamps, Down lights, etc. Especially applied for Office buildings, Supermarkets, Shopping malls, Conference halls, and Hotels etc, The warranty is three years. Our products are all strictly TUV/CE/RoHS approved.







More Details:





Elegant and Elaborately design. Every detail is in result of our engineers' delicate workmanship and continuing efforts.



The luminous flux has been dramatically improved, compare to side lit LED Panel Light. It’s great to apply as commercial Lighting, and those other places need bright light.



Backlit, Japanese Imported Diffuser, integrate our engineers’ dedicated development, compose a remarkable LED Panel Lighting fixture.



Benefit from White polish plastic frame, this Backlit LED Panel Light still is easy to be suspended although it’s backlit (thickness: 42mm). Moreover, the whole panel is looked more upmarket.





Features and Advantages:



  1. Elegant appearance: no screws on the surface, smooth and tidy;
  2. Outstanding Heat Dissipation: help to reduce the luminous degradation and extent lifespan of products;
  3. High Lighting Transmittance Efficiency: up to 93% by imported diffuser from Japan;
  4. High Lighting Efficiency: over 100lm/W by SMD 3014 LED;
  5. No start-up time, no flickering, no humming;
  6. No such hazard that mercury or lead enters the enviroument. No RF and electronic magnetic interferece;
  7. Over 50,000 hours life expectancy.





Specification:



A: Technical Parameter

Item  No.

GH-PLB-6060-45W

Dimension

595x595x42mm

Voltage

AC85V-265V  50/ 60HZ

Power

45W

LED  Type

SMD3014

LED  Quantity

484pcs



Luminous Flux

Warm  white

> 3825 lm

Neutral  white

> 4050 lm

Pure White

> 4275lm



Color  Temperature

(CCT)

Warm  white

2800-3500K

Neutral  white

3800-4500K

Pure White

5500- 6500K

Beam Angle

120°

Color  Rendering  Index  (CRI)

Ra 80

Power  Supply  Efficiency

>90%

LED  Luminous  Efficiency

Up  to  110 lm/W

Power  Factor  (PF)

>0.95

Total Harmonic Distortion  (THD)

≤15%

IP Rank

IP  50

Net weight

2.5kgs

Certificate

TUV/CE/RoHS



B: Mechanical Specifications

LED Driver

Isolated Constant Current LED Driver

Connection  to  Power

2X1.0mm 2PVC Cable

Housing  Processing

White  Paint  Coating

Material

PMMA, Plastic  housing

Cover

Frosty  Front Cover



Installation  Component Set

1. Recessed Installation, YES

2.Suspend Installation, Optional



C: Environmental

Temperature  Range  Operating

-20℃ to 40℃

Humidity  Range  Operating

20 % to 95 %

Temperature  Range Storage

-40℃ to 75℃

Humidity  Range Storage

10 % to  80 %





Dimension:



Square LED Panel Light 600 x 600 0





Light Distribution Curve & Max CD Distribution Curve:



Square LED Panel Light 600 x 600 1





Illumination  Diameter:



Square LED Panel Light 600 x 600 2





Electrical Connection:

Square LED Panel Light 600 x 600 3





Installation:



Warning: Before installation, please make sure the power is turned off.



A. The standard False Ceiling Installation

Square LED Panel Light 600 x 600 4

Step1:Opening the false ceiling





Square LED Panel Light 600 x 600 5



Step2:Install the panel light








Square LED Panel Light 600 x 600 6

Step3:Connect the wire for panel










B . The embedded installation

Square LED Panel Light 600 x 600 7

Step1.To Saw a hole according the panel holing demension





Square LED Panel Light 600 x 600 8



Step2.Install the panel in the hole of ceiling








Square LED Panel Light 600 x 600 9

B . The embedded installation










C.The suspended installation

Square LED Panel Light 600 x 600 10

1.To drill the holes on the Ceiling,Fix the components with screws on the Ceiling.

Square LED Panel Light 600 x 600 11

2.To fix the steel rope at the panel suspended  components








Square LED Panel Light 600 x 600 12

3.To adjust the panel height.

Square LED Panel Light 600 x 600 13

C.The suspended installation












Packing Information:



Material

QTY/ CTN

Carton  Size

G.W.

Carton

1pcs

680*640*110mm

3.28kgs





Packing Details:



Square LED Panel Light 600 x 600 14





Drop and Impact Test:



  1. Each edge (as chart below) has been  tested.
  2. The appearance and Performance of the LED Panel Light  has  been rechecked  after the Test.



Square LED Panel Light 600 x 600 15





Application:





Shopping Mall, Supermarket, Office, School, Library, Bathroom, Kitchen, Department Store, Restaurant, Cafeteria, Hospital, Laboratory, and Conference Room etc.

Square LED Panel Light 600 x 600 16





Square LED Panel Light 600 x 600 17





Square LED Panel Light 600 x 600 18







Warranty:



3-year warranty since the date of purchase is offered for all Backlit Panel Light.





Term of Warranty:



  • Under terms of this warranty, if the product has a failure occurring under normal usage within warranty period, Ground Halo will provide free maintenance service based on the proof- documents and invoice (copy) of failure product.
  • Ground Halo will not provide paid maintenance service by under conditions within warranty.
    • Failure or damage due to force majeure.
    • Failure or damage due to transport or unloading.
    • Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
    • Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
  • Please deliver the failure product by original packing for maintenance service, Ground Halo will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.



Ground Halo reserves the right for final explanation of aforesaid terms.



Caution : Ground Halo will not be responsible for any other failure or damage by incorrectly usage.





Term of Trade:



1. Payment: T/T 30% deposit, 70% before shipment ,L/C ,western union or paypal.
2. Lead time : Within 7-20 working days after receiving the deposit
3. Samples: Can be ready in 5 working days once payment received
4. Shipping port: Shenzhen, China
5. Discounts : We offer discount for large quantity
6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand etc.





Why Choose Us?



  • Your inquiry related to our products or prices will be replied whitin 24 hour
s.
  • Experienced sales to answer all your inquiry in short time.

  • Clients' special requirement is accepted. We also provide Lighting Solution and recommend the best suitable lights to you.

  • Protect your sales area, ideas of design and all your private information.
