High Light: | led panel lights for home,slim LED Panel Light |
---|
Quick Detail:
Description:

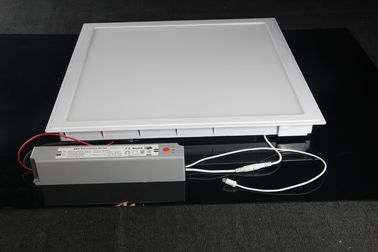

Our Elegant and Elaborately designde Backlit LED panel light is mainly intended to reducing enrgy consumption and landscaping.High brightness, soft light and no need for guide plate is the main characteriistic of this series of backlit panel. The high Lighting Efficency can up to 100-110lm/w. Easy to install and maintain to repllace the conventional lights, like fluorescent lamp, energy saving lamps, Down lights, etc. Especially applied for Office buildings, Supermarkets, Shopping malls, Conference halls, and Hotels etc, The warranty is three years. Our products are all strictly TUV/CE/RoHS approved.
More Details:
Elegant and Elaborately design. Every detail is in result of our engineers' delicate workmanship and continuing efforts.
The luminous flux has been dramatically improved, compare to side lit LED Panel Light. It’s great to apply as commercial Lighting, and those other places need bright light.
Backlit, Japanese Imported Diffuser, integrate our engineers’ dedicated development, compose a remarkable LED Panel Lighting fixture.
Benefit from White polish plastic frame, this Backlit LED Panel Light still is easy to be suspended although it’s backlit (thickness: 42mm). Moreover, the whole panel is looked more upmarket.
Features and Advantages:
Elegant appearance: no screws on the surface, smooth and tidy;
Outstanding Heat Dissipation: help to reduce the luminous degradation and extent lifespan of products;
High Lighting Transmittance Efficiency: up to 93% by imported diffuser from Japan;
High Lighting Efficiency: over 100lm/W by SMD 3014 LED;
No start-up time, no flickering, no humming;
No such hazard that mercury or lead enters the enviroument. No RF and electronic magnetic interferece;
Over 50,000 hours life expectancy.
Specification:
A: Technical Parameter
Item No. |
GH-PLB-6060-45W |
|
Dimension |
595x595x42mm |
|
Voltage |
AC85V-265V 50/ 60HZ |
|
Power |
45W |
|
LED Type |
SMD3014 |
|
LED Quantity |
484pcs |
|
Luminous Flux |
Warm white |
> 3825 lm |
Neutral white |
> 4050 lm |
|
Pure White |
> 4275lm |
|
Color Temperature (CCT) |
Warm white |
2800-3500K |
Neutral white |
3800-4500K |
|
Pure White |
5500- 6500K |
|
Beam Angle |
120° |
|
Color Rendering Index (CRI) |
Ra 80 |
|
Power Supply Efficiency |
>90% |
|
LED Luminous Efficiency |
Up to 110 lm/W |
|
Power Factor (PF) |
>0.95 |
|
Total Harmonic Distortion (THD) |
≤15% |
|
IP Rank |
IP 50 |
|
Net weight |
2.5kgs |
|
Certificate |
TUV/CE/RoHS |
B: Mechanical Specifications
LED Driver |
Isolated Constant Current LED Driver |
Connection to Power |
2X1.0mm 2PVC Cable |
Housing Processing |
White Paint Coating |
Material |
PMMA, Plastic housing |
Cover |
Frosty Front Cover |
Installation Component Set |
1. Recessed Installation, YES 2.Suspend Installation, Optional |
C: Environmental
Temperature Range Operating |
-20℃ to 40℃ |
Humidity Range Operating |
20 % to 95 % |
Temperature Range Storage |
-40℃ to 75℃ |
Humidity Range Storage |
10 % to 80 % |
Installation:
Warning: Before installation, please make sure the power is turned off.
Packing Information:
Material |
QTY/ CTN |
Carton Size |
G.W. |
Carton |
1pcs |
680*640*110mm |
3.28kgs |
Drop and Impact Test:
Application:
Shopping Mall, Supermarket, Office, School, Library, Bathroom, Kitchen, Department Store, Restaurant, Cafeteria, Hospital, Laboratory, and Conference Room etc.
Warranty:
3-year warranty since the date of purchase is offered for all Backlit Panel Light.
Term of Warranty:
Ground Halo reserves the right for final explanation of aforesaid terms.
Caution : Ground Halo will not be responsible for any other failure or damage by incorrectly usage.
Term of Trade:
1. Payment: T/T 30% deposit, 70% before shipment ,L/C ,western union or paypal.
2. Lead time : Within 7-20 working days after receiving the deposit
3. Samples: Can be ready in 5 working days once payment received
4. Shipping port: Shenzhen, China
5. Discounts : We offer discount for large quantity
6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand etc.
