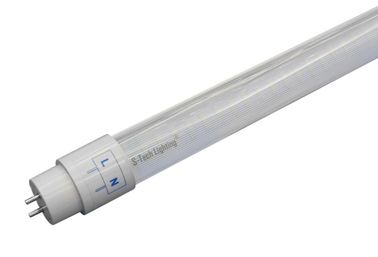

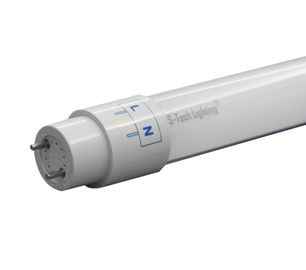

2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness

2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness
2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness 2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness 2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness 2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness 2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness

Large Image :  2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness

Product Details:
Place of Origin: Shenzhen City, China
Brand Name: S-Tech, Lightingtalk
Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
Model Number: 208D20-X20
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Qty/CTN: 30pcs, Gross Weight: 10.5Kg
Delivery Time: 3~7 days
Payment Terms: L/C,D/P,T/T, Western Union, cash , pay pal
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Application: Factory, Office Color Temperature: Warm White, Natural White, Cold White
Features: High Brightness, Energy Saving Key Material: Aluminum Alloy, PC
Light Source: Epistar Product Name: T8 LED Tube
High Light:

T8 led tube lights

,

LED T8 tube lights





2ft / 4Ft DC24V 18W T8 LED Tube Light fixtures , Warm White and high brightness





Quick Detail:



Japanese led light tube 18W with PSE ETL SAA, CE ROHS 2ft 1200mm DC 24V18W 208D20-X20 T8 LED Tube Light Fixtures with external power supply

  • Model Number: 208D20-X20
  • Item Type: 1.2m DC 24V LED T8 tube
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
  • Power: 18W
  • Input Voltage(V): AC 110~240V
  • Light efficiency: 85-100lm/w
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years



Description:



  • Model Number: 208D20-X20
  • Item Type: 1.2m DC 24V LED T8 tube light
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
  • Power: 18W
  • Input Voltage: DC 18~25V
  • Light efficiency: 85-100lm/w
  • Lamp Luminous Flux: 1250~1600Lm
  • Lamp Luminous Efficiency(lm/w): 90
  • CRI (Ra>): 70
  • Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
  • Working Temperature: -20℃ - 40℃
  • Working Lifetime: 50000hrs
  • IP Rating: IP33
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years
  • External power supply



Applications:



Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.



Specifications:



Rated Voltage

DC 18~25V CC:750mA

Wattage

18W*

Power Factor

>0.85

Lumen

1250~1600Lm*

Efficiency

>75Lm/w*

Beam Angle

≥180°

Flux(Lux)@1M

>150Lux*

Lifespan (hrs) @25℃

50,000hrs *

Ambient Temp. (℃)

-20℃~40℃

Storage Temp. (℃)

-40℃~65℃

Color Temp.

3000K±300K, 4000K±400K, 5700K±570K

CRI

>70%

Key Material

Aluminum Alloy+ PC Cover

N.W.(g)

260g*

Warranty

3years



Item

Wattage

CCT

Flux@1m

Lumen

Efficiency

CRI

208D18-R20

18W

3000K±300K

250lux*

1250~1400lm*

>75Lm/W*

>80%

208D18-T20

18W

4000K±400K

270lux*

1400~1550lm*

>85Lm/W*

>70%

208D18-W20

18W

5700K±570K

290lux*

1450~1600lm*

>90Lm/W*

>70%





Size:



Length A

Length  B

Length  C

Length  D

Dia  E

Dia  F

1212mm

1205mm

1198mm

55mm

Ø29.5

Ø26



2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness 0

Flux Data:



           Distance

Item

1m

2m

3m

208D18-R20

250 lux

59 lux

30 lux

208D18-T20

270 lux

63 lux

31 lux

208D18-W20

290 lux

68 lux

34 lux





Certificate Applicable:



CE Applicable standards: EN55015:2006+A12007+A2:2009

                                                EN61547:2009

                                                EN61000-3-2:2006+A1:2009+A2:2009

                                                EN61000-3-3:2008

2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness 1

2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness 2

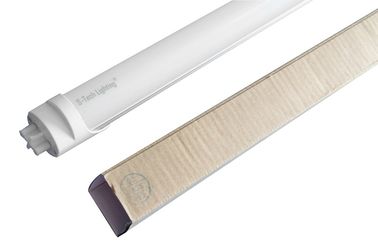

Packing:


Qty/CTN:  30pcs
Gross Weight:  10.5Kg
Size of Carton:
CTN A: 1218×32×32mm
CTN B: 1235×210×180mm




2ft / 4Ft DC 24V 18W Warm White T8 LED Tube Light with High Brightness 3



Competitive Advantage:



* Structure & Material

1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.

2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%

3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!

4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

* Optics Design

1) Glare Index <19, No glare for our nice optics design

2) The lighting effect is very even (just like traditional fluorescent tube

* Quality Control & Lead time Control

1) Strict Materials testing & purchasing

2) Automatically production with SMT & Reflow Soldering machines

3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.

4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!

* Certificate

 CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,



CE 120cm DC 24V T8 SMD led tube light, 18W 1.2m T8 led tube lighting, 18W 3014SMD T8 led tube lamp
