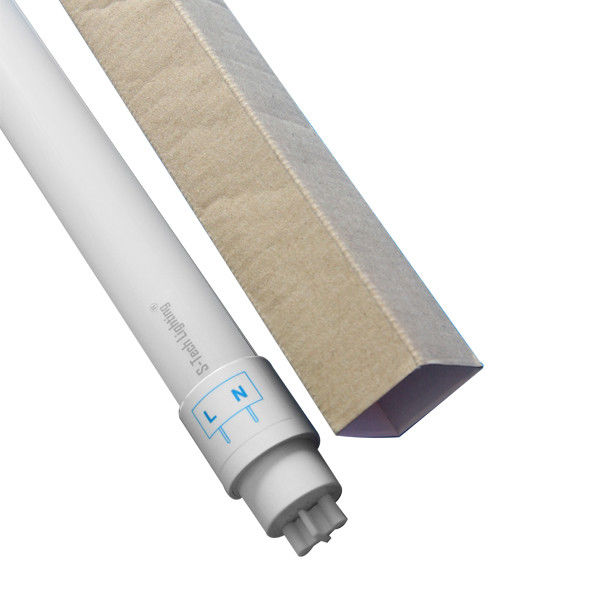

Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85

Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85
Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85 Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85 Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85

Large Image :  Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85

Product Details:
Place of Origin: Shenzhen City, China
Brand Name: S-Tech, Lightingtalk
Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
Model Number: 108E23-X10
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Qty/CTN: 30pcs, Gross Weight: 17Kg
Delivery Time: 3~7 days
Payment Terms: L/C,D/P,T/T, Western Union, cash , pay pal
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
High Light:

T8 led tube lights

,

LED T8 tube lights





 Waterproof  T8 Led Tube Commercial Lighting And Warehouse CRI 85





Quick Detail:



Japanese led light tube 23w with PSE ETL SAA, CE ROHS 2ft 1500mm 23W 108E23-X10 T8 LED Tube Light Fixtures

  • Model Number: 108E23-X10
  • Item Type: 1.5m LED T8 tube
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
  • Power: 23w
  • Input Voltage(V): AC 110~240V
  • Light efficiency: 85-100lm/w
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years



Description:



  • Model Number: 108E23-X10
  • Item Type: 1.5m LED T8 tube light
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
  • Power: 23w
  • Input Voltage: 110~240V AC
  • Light efficiency: 85-100lm/w
  • Lamp Luminous Flux: 1610~2150Lm
  • Lamp Luminous Efficiency(lm/w): 90
  • Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
  • Working Temperature: -20℃ - 40℃
  • Working Lifetime: 40000hrs
  • IP Rating: IP54
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years



Applications:



Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.



Specifications:



Rated Voltage

100~240VAC / 50~60 Hz

Wattage

23w*

Power Factor

>0.85

Lumen

1610~2150Lm*

Efficiency

>75Lm/w*

Beam Angle

≥180°

Flux(Lux)@1M

>340Lux*

Lifespan (hrs) @25℃

40,000hrs *

Ambient Temp. (℃)

-20℃~40℃

Storage Temp. (℃)

-40℃~65℃

Color Temp.

3000K±300K, 4000K±400K, 5700K±570K

CRI

>70%

Key Material

Aluminum Alloy+ PC Cover

N.W.(g)

420g*

Warranty

3years



Item

Wattage

CCT

Flux@1m

Lumen

Efficiency

CRI

108E23-R10

23w

3000K±300K

340lux*

1610~1800lm*

>70Lm/w*

>80%

108E23-T10

23w

4000K±400K

370lux*

1840~2050lm*

>80Lm/w*

>70%

108E23-W10

23w

5700K±570K

390lux*

1950~2150lm*

>85lm/w*

>70%





Size:



Length A

Length  B

Length  C

Length  D

Dia  E

Dia  F

1513mm

1506mm

1499mm

45mm

Ø28.7

Ø26


Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85 0

Flux Data:



           Distance

Item

1m

2m

3m

108E23-R10

340 lux

73 lux

39 lux

108E23-T10

370 lux

76 lux

42 lux

108E23-W10

390 lux

80 lux

45 lux





Certificate Applicable:



CE Applicable standards: EN55015:2006+A12007+A2:2009

                                                EN61547:2009

                                                EN61000-3-2:2006+A1:2009+A2:2009

                                                EN61000-3-3:2008

Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85 1

Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85 2

Packing:


Qty/CTN:  30pcs
Gross Weight:  17Kg
Size of Carton:
CTN A: 1518×32×32mm
CTN B: 1530×210×185mm




Waterproof T8 Led Tube Commercial Lighting And Warehouse CRI 85 3



Competitive Advantage:



* Structure & Material

1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.

2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%

3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!

4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

* Optics Design

1) Glare Index <19, No glare for our nice optics design

2) The lighting effect is very even (just like traditional fluorescent tube

* Quality Control & Lead time Control

1) Strict Materials testing & purchasing

2) Automatically production with SMT & Reflow Soldering machines

3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.

4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!

* Certificate

 CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,



CE 150cm T8 SMD led tube light, 23w 1.5m T8 led tube lighting, 23w 3014SMD T8 led tube lamp
