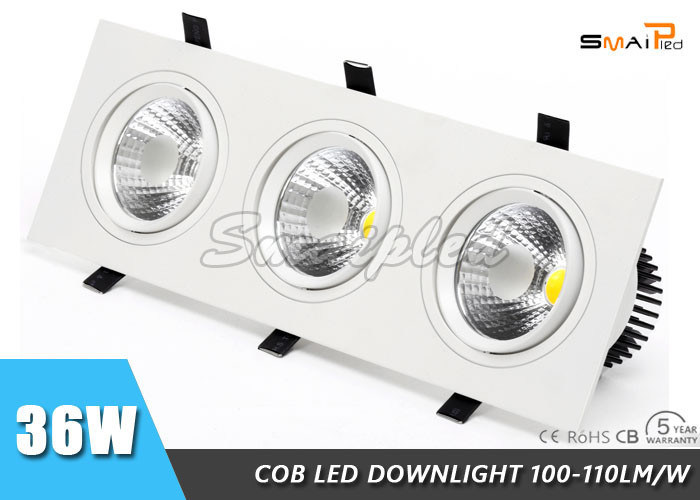

Super Bright Recessed LED Downlight 3X12W 3500lm 100lm/W , LED Lamp Downlight
3X12W Surface Mounted LED Downlights Specification
|
Product Model |
SP-COB-SCL-3X12W |
|
Input voltage |
AC85-265V |
|
Freqency Range |
47-63Hz |
|
Housing material |
Aluminum body |
|
Led Consumption |
36w |
|
System Consumption |
39w |
|
LED Brand |
Epistar |
|
LED quantity |
3PCS 12W COB |
|
Luminous flux |
3400-3800LM |
|
Color temperature |
2500-10000K |
|
Color Rendering Index |
>80 |
|
Emitting angle |
30° |
|
Size |
335x120x72mm |
|
Working Temperature |
40°-65° |
|
Lifetime |
50000 Hours |
|
Certificate |
CE/ROHS |
|
Cut out |
310x90mm |
|
Quality guarantee |
3 Years |
|
Waterproof class |
IP44 |
Sell Point : Rotatable , Adjust Emitting Angle
Features of Surface Mounted LED Downlights
1) CE&Rohs, PSE, SAA,UL&DLC and FCC approval
2) Long life span, energy saving, environmental protection,without causing any flickering,helpful to protect the eyes.
3) Adopt high-quality-high-efficiency constant current driver, to ensure the products' stability, to reduce the power consumption greatly.
4) With high-quality LED light source with a long lifespan, lower temperatures.
5) Full series from 100W to 500W, support indoor and outdoor use
6) OEM&ODM could be available, manufacturer focusing on led lighting more than 8years offer reasonable price, delivery time and quality could be guaranteed
12W COB Parameter
 |
COB Power | 12 Wattage |
| PCB Material | PCB Material / Ceramics | |
| Chips Brand | Epistar 28*14mil | |
| Chips Quantity | 60PCS | |
| Color Rendering Index | >80 | |
| Output Voltage | 36-40VDC | |
| Current | 320MA |
12W Driver Parameter (The 36w downlight with 3pcs driver)
|
Input Voltage | AC85-265V |
| Output Voltage | 36-42VDC | |
| Input Current | 0.2A | |
| Output Current | 300MA | |
| Power Factor | >0.9 | |
| Certification | CE / ROHS / SAA / ETL | |
| Dimmable | Triac / 0-10V |
Approximate Comparison Chart
| 1 x12w COB LED Ceiling Downlight | 2 X 10W CFL |
| 2 x12w COB LED Ceiling Downlight | 2 X 20W CFL |
| 3 x12w COB LED Ceiling Downlight | 2 X 30W CFL |
15W COB Surface Mounted LED Downlights Packing
| Model | SP-COB-SCL-12W |
| Net Weight | 1.3KG |
| Inner box size | 30x12x10CM |
| Outter carton size | 49x37x30CM |
| Carton G.w | 10KG |
| Pcs/carton | 6PCS |
Dimension
Inatallation instructions Recessed LED Downlights
