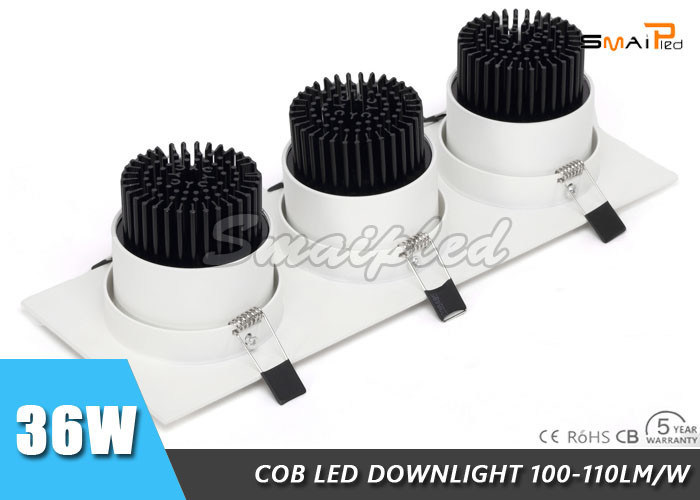

RA80 Rotatable Recessed Adjustable LED Downlights  3x12W For Building / Supermarket 3500LM

Sell Point : Rotatable , Adjust Emitting Angle


Quick Detail:
Consumption Power: 36W
Beam Angle: 30°
LED Light Source: 3PCS 12w COB LED
Material: Aluminum + Glass Cover
Luminous Flux: 3500lm±10%
Dimension: 335x120x72mm
Cut Size: 310x90mm
LED Chip: Epistar
Input Voltage: AC85~265V
Driver: Build In Constant Current IC
Finish Color: White+black
Certificate: CE, RoHs
CRI: RA>80
Color Temperature: 2700 ~ 10000K
Warranty: 2 Years
Model Name : SP-COB-SCL-3X12W

Features of Surface Mounted LED Downlights

1. 1x12w, 2x12w, 3x12w
2. White outer ring with black body appears very high-grade.
3. High transmittance glass, Light Transmission up to 90%
4. The COB led made of 0.2w epistar chips 90-100LM/ W,Ra>80.
5. Reflective cup with good focusing effect, emitting angle is 30 degree.
6. Driver adopt series circuit,with function of automatic protection circuit.
7. Non-Dimmable or Dimmable, Dimming Type Triac and 0-10V.
8. High quality with CE, Rohs certificates, 3 years warranty
9. Life span: 50,000 hours
10. CE / ROHS / FCC / SAA / ETL


3X12W Surface Mounted LED Downlights Specification




12W COB Parameter (3pcs)


	COB Power	12 Wattage
	PCB Material	PCB Material / Ceramics
	Chips Brand	Epistar 28*14mil
	Chips Quantity	60PCS
	Color Rendering Index	>80
	Output Voltage	36-40VDC
	Current	320MA



12W Driver Parameter (The 36w downlight with 3pcs driver)



	Input Voltage	AC85-265V
	Output Voltage	36-42VDC
	Input Current	0.2A
	Output Current	300MA
	Power Factor	>0.9
	Certification	CE / ROHS / SAA / ETL
	Dimmable	Triac / 0-10V





Approximate Comparison Chart



Dimension

Inatallation instructions Recessed LED Downlights
