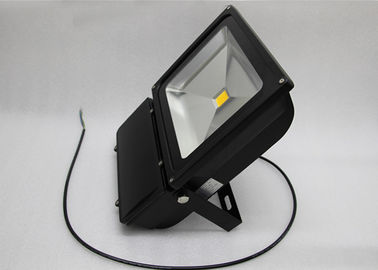

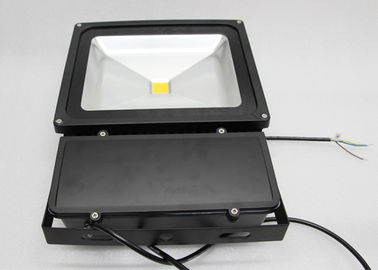

meanwell 100w led flood light ,outdoor waterproof floodlight ip66,SAA floodlight
SPEC of ZLONE led flood light:
1. Single color & RGB led bulb. Can get fantastic color changing effects.
2. Easy plug technology,more reliable and easy maintenance.
3. IP65/IP68 protection.Waterproof and dustproof.
4. Energy saving, saving 50% than the traditional lights at the same brightness.
5. Inner high efficiency (95%) heat protection system, with the latest high efficiency constant,currency driver, making the products can work under unstable voltage.
6. Long life span, more than 50000 hours.
|
Optical Parameters of High power LED Floodlight 100w
|
|
Model
|
ZL-FL410-100W
|
|
Power
|
100W
|
|
LED chip
|
Epistar /Bridgelux 45mil LED chip
|
|
Lumens
|
9900 lm
|
|
Color Temperature
|
2700-6500k
|
|
Warm White: 2700-3200k
|
|
Neutral White/Nature white 4000-4500K
|
|
Day White: 5000-5500K
|
|
Cool White, Cold White > 6500K
|
|
CRI
|
>75
|
|
Beam Angle
|
120 degre
|
|
Physical parameters of LED floodlight 100W
|
|
Housing Material
|
Aluminum Alloy + Toughened glass
|
|
Surface Treatment
|
Oxidation Treatment, Silver Treatment
|
|
Current
|
950 mA
|
|
Voltage
|
AC 85-265V
|
|
Frequency
|
50/60 HZ
|
|
LED driver
|
Meanwell Driver
|
|
Power Factor
|
0.90
|
|
Power Efficiency
|
85%
|
|
RGB flood light is available
|
Customized your LED flood light:
1. Different led chip brand:Epistar/Bridgelux/CREE
2. Dimmable are available,compatible most dimmer,RF remote prepared
3. Isolated power supplier and non-isolated power could be chosen.
4. Regular lumen 90-100lm/w,Highest lumen 130lm/w or 120-140lm/w for chosen.
5. Different power supplier solution:lowest temperature upto -40 degree.it could be updated to Meanwell power supplier.
6. Long life span,20000/50000 hours,2-5 years warranty by your request.
-------------------------------------PRODUCT Feature ---------------------------------------
1. Led chip: High lumen EPISTAR chip-on-board chips or BRIDGELUX delivery 130lm/w high lumens in high CRI for lighting performance and have 120o beam angle for lighting.
2. Lifespan: ZLONE’s led flood light has 50000 hours lifespan for using. You can using 8 years base on using 10 hours per day.
3. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.

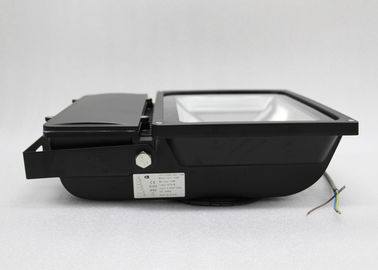

4. Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. Also the quality of the lamp housing is same.
5. Glass Cover: High quality 4mm-5mm thickness heat-resistant temper glass will not splash when the flood light is exploded in wrong operation. It guarantees 100% light transmittance and uniform light distribution.
6. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.
7. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.
8. Adjustable bracket: It can adjust 0-180o beam angle in horizontal direction for different application purpose.
9. Warranty: ZLONE offers 3 years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.
Related products of LED Flood Light:
|
Size(mm)
|
Power
|
Lumen
|
Efficiency
|
CRI
|
Beam
|
Voltage
|
IP Grade
|
N.W
|
Replacement
|
|
115*85*85
|
10W
|
800lm
|
80 lm/w
|
>75
|
120°
|
85~265V
|
IP65
|
700g
|
30W HPS
|
|
180*140*110
|
20W
|
1600lm
|
80 lm/w
|
>75
|
120°
|
85~265V
|
IP65
|
1500g
|
60W HPS
|
|
225*185*125
|
30W
|
2400lm
|
80 lm/w
|
>75
|
120°
|
85~265V
|
IP65
|
2580g
|
100W HPS
|
|
288*238*160
|
50W
|
4000lm
|
80 lm/w
|
>75
|
120°
|
85~265V
|
IP65
|
4000g
|
150W HPS
|
|
360*285*130
|
70W
|
5600lm
|
80 lm/w
|
>75
|
120°
|
85~265V
|
IP65
|
7000g
|
200W HPS
|
|
360*285*97
|
80W
|
6400lm
|
80 lm/w
|
>75
|
120°
|
85~265V
|
IP65
|
7000g
|
250W HPS
|
|
425*328*190
|
100W
|
8000lm
|
80 lm/w
|
>75
|
120°
|
85~265V
|
IP65
|
7500g
|
300W HPS
|
|
425*328*190
|
120W
|
9600lm
|
80 lm/w
|
>75
|
120°
|
85~265V
|
IP65
|
8600g
|
350W HPS
|
|
425*328*190
|
150W
|
12000lm
|
80 lm/w
|
>75
|
120°
|
85~265V
|
IP65
|
9000g
|
500W HPS
|
Applications:
Ideal lamp for Warehouse, Basketball Court, Sports Center, Gymnasium halls, Football Field,Tennis Field and etc.
