Product Details:
Payment & Shipping Terms:
|
| Product Number: | RM-F5050IP68-60P | Voltage: | 12V |
|---|---|---|---|
| Waterproof Grade: | IP68 | Qty: | 60leds |
| Lumen: | 16-18lm | ||
| High Light: | Flexibele LED Strip Light,warm white led strip |
||

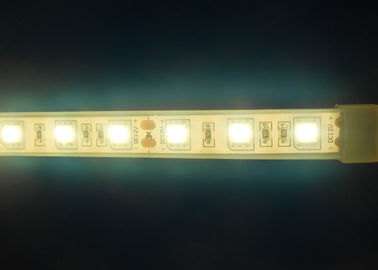

Waterproof IP68 Silicone tube 60leds/m 16-18lm 5050 strip light warranty 3 years
IP20 Nonwaterproof
IP65 Waterproof Silicone glue
IP67 Waterproof Silicone tube
IP68 Waterproof glue plus silicone tube
Specification:
1. smd5050*30/60leds,epistar chip,18~20lm/led
2. 5m/roll,3 or 6led cuttable
3. DC12/24V,36W/72W
4. CE & RoHS certificate
5. Use low energy consumption SMD led for light source, high energy conservation efficiency, up to 75% than traditional light; high brightness, low brightness attenuation.
6. No heavy metal. environmental protection, with lifespan up to 50000 H
7. Adopt super flexible PCB board as a base, can be folded and bended to 360 degree; low voltage, safe and reliable to use.
8. Many colors: red,green,blue,yellow,pure white,warm white,RGB are available.
9. Input voltage: 12V/24V DC. 3 LEDS make one group under 12V while 6 LEDs make a group under 24V.
10. With non-waterproof and waterproof type,the waterproof level has IP65,IP67,IP68.
11. Warranty three years
|
Tech Date |
|
|
|
Model |
RM-F5050IP68-60P |
|
|
LED Qty |
60leds/m |
|
|
LED Type |
5050SMD |
|
|
LED Power |
14.4W/M |
|
|
LED Color |
WW/NW/CW |
|
|
Input Voltage |
DC12V/ 24V |
|
|
Power Factor |
>98 |
|
|
Power Efficiency |
>85% |
|
|
Luminous Efficiency |
16lm~18lmLM/LED |
|
|
Color Temperature |
WW |
2700-3200K |
|
NW |
4000-4500K |
|
|
CW |
6000-6500K |
|
|
Lamp Efficiency |
>85% |
|
|
Beam Angle |
120° |
|
|
Working Temperature |
-40℃ ～ +55℃ |
|
|
Storage Temperature |
-25℃ ～ +65℃(25℃best) |
|
|
Life span |
>30000hrs |
|
|
Certification |
CE, RoHS, FCC |
|
|
IP Grade |
IP68 |
|
|
Board Width |
12 |
|
|
Net Weight |
0.3kgs |
|
|
Dimension |
1000*12*5mm |
|
|
package |
5m/roll in each Anti-static bag |
|
Competitive Advantage:
1. Super bright 5050 SMD top LED, high intensity and reliability.
2. Cuttable every 3 LEDs along the cutting marks, according to practical requirement.
3. Long life span 50,000 + hours
4. Flexible ribbon for curving around bends
5. Completely smooth and even light spread, solving the uneven luminous problem
6. Ultra-bright but running at low temperature
7. High brightness, low power, long life, easy installation, the production of highly customizable,
8. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
Applicattions:
* Cove lighting
* Architectural lights for canopy, corridor, window, archway
* Backlight or edge lighting for signage
* DIY lights for home use
* Path and contour marking
* Decorative lights for holiday, event, show, exhibition
* Special light effect for art gallery and glass-made items
Features:
1. There are 3 chips in each SMD LED. The LEDS are evenly arranged on the board.
2. Every three LEDs as one unit can be cuttable.
3. IP68 waterproof craft makes the product completely waterproof.
8. Each 5 meters need 12vdc and 100watts of transformer.
About us:
Shenzhen Raymates Electronic Co., LTD is an innovative company involved in R&D, manufacturing and popularization of LED lights since establishment in 2008. Mainly produce:LED flexible strip, LED T8 tube, LED flood lights, LED high bay light and LED street light etc.
Product appication show:
