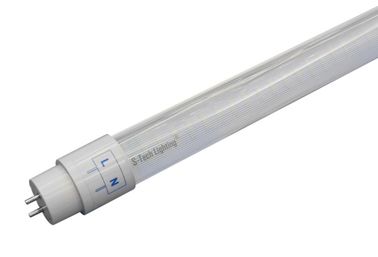

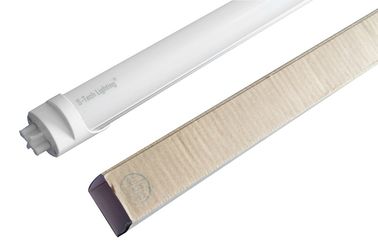

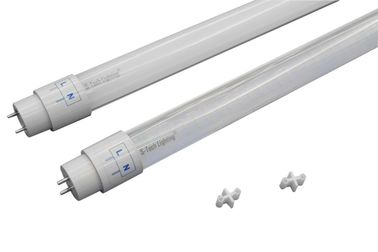

Aluminum Alloy / PC Eco friendly T8 LED Tube , OEM fluorescent LED tubes with Energy Saving
Quick Detail:
Japanese led light tube 23w with PSE ETL SAA, CE ROHS 2ft 1500mm 23W 108E23-X10 T8 LED Tube Light Fixtures
-
Model Number: 108E23-X10
-
Item Type: 1.5m LED T8 tube
-
Light Source: Epistar 3014SMD 10*30mil
-
Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
-
Power: 23w
-
Input Voltage(V): AC 110~240V
-
Light efficiency: 85-100lm/w
-
Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
-
Service: OEM label-print
-
Warranty: 3years
Description:
-
Model Number: 108E23-X10
-
Item Type: 1.5m LED T8 tube light
-
Light Source: Epistar 3014SMD 10*30mil
-
Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
-
Power: 23w
-
Input Voltage: 110~240V AC
-
Light efficiency: 85-100lm/w
-
Lamp Luminous Flux: 1610~2150Lm
-
Lamp Luminous Efficiency(lm/w): 90
-
CRI (Ra>): 70
-
Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
-
Working Temperature: -20℃ - 40℃
-
Working Lifetime: 40000hrs
-
IP Rating: IP33
-
Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
-
Service: OEM label-print
-
Warranty: 3years
Applications:
Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.
Specifications:
|
Rated Voltage
|
100~240VAC / 50~60 Hz
|
|
Wattage
|
23w*
|
|
Power Factor
|
>0.85
|
|
Lumen
|
1610~2150Lm*
|
|
Efficiency
|
>75Lm/w*
|
|
Beam Angle
|
≥180°
|
|
Flux(Lux)@1M
|
＞340Lux*
|
|
Lifespan (hrs) @25℃
|
40,000hrs *
|
|
Ambient Temp. (℃)
|
-20℃~40℃
|
|
Storage Temp. (℃)
|
-40℃~65℃
|
|
Color Temp.
|
3000K±300K, 4000K±400K, 5700K±570K
|
|
CRI
|
＞70%
|
|
Key Material
|
Aluminum Alloy+ PC Cover
|
|
N.W.(g)
|
420g*
|
|
Warranty
|
3years
|
|
Item
|
Wattage
|
CCT
|
Flux@1m
|
Lumen
|
Efficiency
|
CRI
|
|
108E23-R10
|
23w
|
3000K±300K
|
340lux*
|
1610~1800lm*
|
>70Lm/w*
|
>80%
|
|
108E23-T10
|
23w
|
4000K±400K
|
370lux*
|
1840~2050lm*
|
>80Lm/w*
|
>70%
|
|
108E23-W10
|
23w
|
5700K±570K
|
390lux*
|
1950~2150lm*
|
>85lm/w*
|
>70%
|
Size:
|
Length A
|
Length B
|
Length C
|
Length D
|
Dia E
|
Dia F
|
|
1513mm
|
1506mm
|
1499mm
|
45mm
|
Ø28.7
|
Ø26
|
Flux Data:
|
Distance
Item
|
1m
|
2m
|
3m
|
|
108E23-R10
|
340 lux
|
73 lux
|
39 lux
|
|
108E23-T10
|
370 lux
|
76 lux
|
42 lux
|
|
108E23-W10
|
390 lux
|
80 lux
|
45 lux
|
Certificate Applicable:
CE Applicable standards: EN55015:2006+A12007+A2:2009
EN61547:2009
EN61000-3-2:2006+A1:2009+A2:2009
EN61000-3-3:2008
Packing:
Qty/CTN: 30pcs
Gross Weight: 17Kg
Size of Carton:
CTN A: 1518×32×32mm
CTN B: 1530×210×185mm
Competitive Advantage:
＊ Structure & Material
1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.
2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%
3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!
4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)
＊ Optics Design
1) Glare Index <19, No glare for our nice optics design
2) The lighting effect is very even (just like traditional fluorescent tube
＊ Quality Control & Lead time Control
1) Strict Materials testing & purchasing
2) Automatically production with SMT & Reflow Soldering machines
3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.
4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!
＊ Certificate
CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,
CE 150cm T8 SMD led tube light, 23w 1.5m T8 led tube lighting, 23w 3014SMD T8 led tube lamp
