10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light

10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light
10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light 10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light 10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light

Large Image :  10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light

Product Details:
Place of Origin: Shenzhen City, China
Brand Name: S-Tech, Lightingtalk
Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
Model Number: 108B10-X10
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Qty/CTN: 30pcs, Gross Weight: 7.5Kg
Delivery Time: 3~7 days
Payment Terms: L/C,D/P,T/T, Western Union, cash , pay pal
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Power: 10W Tube Length: 2ft
Application: Commercial, Warehouse Color Temperature: Warm White
Features: High Brightness, Soft Light Key Material: Aluminum Alloy
Light Source: Epistar Product Name: T8 LED Tube
High Light:

led tube lighting

,

T8 led tube lights





10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light





Quick Detail:



Japanese led light tube 10w with PSE ETL SAA, CE ROHS 2ft 600mm 10W 108B10-X10 T8 LED Tube Light Fixtures

  • Model Number: 108B10-X10
  • Item Type: 0.6m LED T8 tube
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
  • Power: 8W
  • Input Voltage(V): AC 110~240V
  • Light efficiency: 85-100lm/w
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years



Description:



  • Model Number: 108B10-X10
  • Item Type: 0.6m LED T8 tube light
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
  • Power: 8W
  • Input Voltage: 110~240V AC
  • Light efficiency: 85-100lm/w
  • Lamp Luminous Flux: 600~800Lm
  • Lamp Luminous Efficiency(lm/w): 90
  • CRI (Ra>): 70
  • Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
  • Working Temperature: -20℃ - 40℃
  • Working Lifetime: 40000hrs
  • IP Rating: IP33
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years



Applications:



Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.



Specifications:



Rated Voltage

100~240VAC / 50~60 Hz

Wattage

8W*

Power Factor

>0.85

Lumen

650~950Lm*

Efficiency

>75Lm/w*

Beam Angle

≥180°

Flux(Lux)@1M

>150Lux*

Lifespan (hrs) @25℃

40,000hrs *

Ambient Temp. (℃)

-20℃~40℃

Storage Temp. (℃)

-40℃~65℃

Color Temp.

3000K±300K, 4000K±400K, 5700K±570K

CRI

>70%

Key Material

Aluminum Alloy+ PC Cover

N.W.(g)

190g*

Warranty

3years



Item

Wattage

CCT

Flux@1m

Lumen

Efficiency

CRI

108B10-R10

10W

3000K±300K

165lux

650-750lm

>65lm/w

>80%

108B10-T10

10W

4000K±400K

200lux

780-900lm

>78lm/w

>70%

108B10-W10

10W

5700K±570K

210lux

820-950lm

>82lm/w

>70%





Size:



Length A

Length  B

Length  C

Length  D

Dia  E

Dia  F

594mm

587mm

580mm

45mm

Ø28.70

Ø26.00

10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light 0



Flux Data:



           Distance

Item

1m

2m

3m

108B10-R10

165 lux

39 lux

20 lux

108B10-T10

200 lux

47 lux

24 lux

108B10-W10

210 lux

47 lux

23 lux



Certificate Applicable:



CE Applicable standards: EN55015:2006+A12007+A2:2009

                                                EN61547:2009

                                                EN61000-3-2:2006+A1:2009+A2:2009

                                                EN61000-3-3:2008

10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light 1

10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light 2

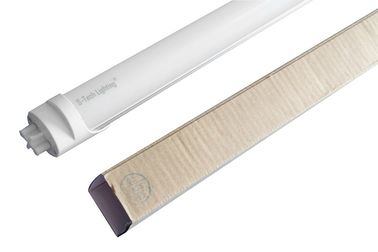

Packing:



Qty/CTN:  30pcs

Gross Weight:  7.5Kg

Size of Carton:

CTN A: 618×32×32mm

CTN B: 630×210×180mm

10W 2ft 600mm 600 ~ 800Lm T8 LED Tube Light with high brightness and soft light 3



Competitive Advantage:



* Structure & Material

1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.

2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%

3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!

4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

* Optics Design

1) Glare Index <19, No glare for our nice optics design

2) The lighting effect is very even (just like traditional fluorescent tube

* Quality Control & Lead time Control

1) Strict Materials testing & purchasing

2) Automatically production with SMT & Reflow Soldering machines

3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.

4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!



* Certificate

 CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,



CE 60cm T8 SMD led tube light, 10W 0.6m T8 led tube lighting, 8W 3014SMD T8 led tube lamp
