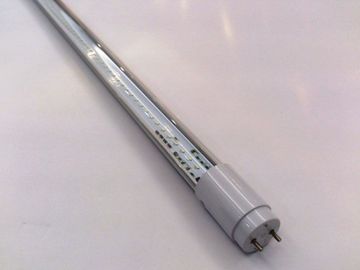

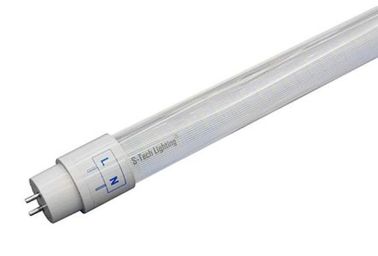

3000 - 5700K 1.2M 18W LED T8 tubes lights with high luminous For Hospital
Quick Detail:
Japanese led light tube 18W with PSE ETL SAA, CE ROHS 2ft 1200mm DC 24V18W 208D20-X20 T8 LED Tube Light Fixtures with external power supply
- Model Number: 208D18-X20
- Item Type: 1.2M DC 24V LED T8 tube
- Light Source: Epistar 3014SMD 10*30mil
- Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
- Power: 18W
- Input Voltage(V): AC 110~240V
- Light efficiency: 85-100lm/w
- Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
- Service: OEM label-print
- Warranty: 3years
Description:
- Model Number: 208D18-X20
- Item Type: 1.2M DC 24V LED T8 tube light
- Light Source: Epistar 3014SMD 10*30mil
- Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
- Power: 18W
- Input Voltage: DC 18~25V
- Light efficiency: 85-100lm/w
- Lamp Luminous Flux: 1250~1600Lm
- Lamp Luminous Efficiency(lm/w): 90
- Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
- Working Temperature: -20℃ - 40℃
- Working Lifetime: 50000hrs
- IP Rating: IP33
- Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
- Service: OEM label-print
- Warranty: 3years
- External power supply
Applications:
Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.
Specifications:
|
Rated Voltage
|
DC 18~25V CC:750mA
|
|
Wattage
|
18W*
|
|
Power Factor
|
>0.85
|
|
Lumen
|
1250~1600Lm*
|
|
Efficiency
|
>75Lm/w*
|
|
Beam Angle
|
≥180°
|
|
Flux(Lux)@1M
|
＞150Lux*
|
|
Lifespan (hrs) @25℃
|
50,000hrs *
|
|
Ambient Temp. (℃)
|
-20℃~40℃
|
|
Storage Temp. (℃)
|
-40℃~65℃
|
|
Color Temp.
|
3000K±300K, 4000K±400K, 5700K±570K
|
|
CRI
|
＞70%
|
|
Key Material
|
Aluminum Alloy+ PC Cover
|
|
N.W.(g)
|
260g*
|
|
Warranty
|
3years
|
|
Item
|
Wattage
|
CCT
|
Flux@1m
|
Lumen
|
Efficiency
|
CRI
|
|
208D18-R20
|
18W
|
3000K±300K
|
250lux*
|
1250~1400lm*
|
>75Lm/W*
|
>80%
|
|
208D18-T20
|
18W
|
4000K±400K
|
270lux*
|
1400~1550lm*
|
>85Lm/W*
|
>70%
|
|
208D18-W20
|
18W
|
5700K±570K
|
290lux*
|
1450~1600lm*
|
>90Lm/W*
|
>70%
|
Size:
|
Length A
|
Length B
|
Length C
|
Length D
|
Dia E
|
Dia F
|
|
1212mm
|
1205mm
|
1198mm
|
55mm
|
Ø29.5
|
Ø26
|
Flux Data:
|
Distance
Item
|
1m
|
2m
|
3m
|
|
208D18-R20
|
250 lux
|
59 lux
|
30 lux
|
|
208D18-T20
|
270 lux
|
63 lux
|
31 lux
|
|
208D18-W20
|
290 lux
|
68 lux
|
34 lux
|
Certificate Applicable:
CE Applicable standards: EN55015:2006+A12007+A2:2009
EN61547:2009
EN61000-3-2:2006+A1:2009+A2:2009
EN61000-3-3:2008
Packing:
Qty/CTN: 30pcs
Gross Weight: 10.5Kg
Size of Carton:
CTN A: 1218×32×32mm
CTN B: 1235×210×180mm
Competitive Advantage:
＊ Structure & Material
1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.
2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%
3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!
4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)
＊ Optics Design
1) Glare Index <19, No glare for our nice optics design
2) The lighting effect is very even (just like traditional fluorescent tube
＊ Quality Control & Lead time Control
1) Strict Materials testing & purchasing
2) Automatically production with SMT & Reflow Soldering machines
3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.
4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!
＊ Certificate
CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,
CE 120cm DC 24V T8 SMD led tube light, 18W 1.2m T8 led tube lighting, 18W 3014SMD T8 led tube lamp
