Product Details:
Payment & Shipping Terms:
|
Material: | Die Casting Aluminium | Finished Color: | Grey,black Or White Available |
---|---|---|---|
Glass Cover: | 5mm Tempered Glass | Reflector: | High Efficacy Shining Aluminium Reflector |
Lampholder: | R7s | OEM: | Available |
Voltage: | 70W Or 150W Available | Waterproof: | IP65 |
High Light: | outdoor flood lights,exterior flood lights |

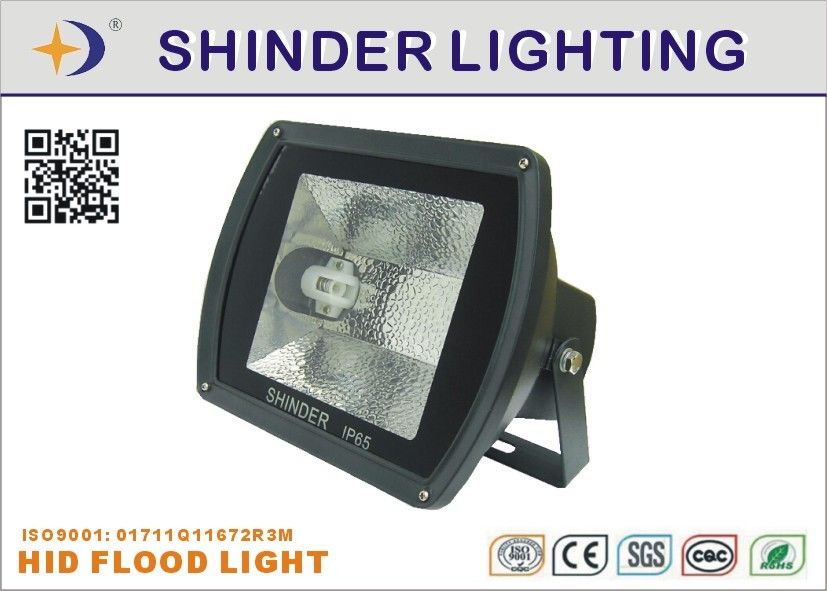

Waterproof metal halide outside flood light 150w used in sportlighting
Features
* supplied with quality R7s single HID lamp using
* high pressure die casting aluminium housing with aluminium front frame to fix the front tempered glass,waterproof IP65
* adjustable steel mounting bracket to support the whole flood light with galvanised pretreatment
* durable polyester powder coat paint finish in black or grey or dark available
* owned back compact control gear box with IP65 cable gland entry
* can stand over 40 ~ 50 degree high temperature circumstance operation
* anodised aluminium shining reflector
Specifications
Item Name |
SDFL324 |
Lumens |
13000lm |
Power |
150W |
Color temp |
4200K |
Voltage |
AC220-240V |
Average lifespan |
10000hrs |
IP rate |
IP65 |
Colour |
customized |
Material |
Die-casting aluminum |
G.W/N.W |
3.6/3KG/CTN |
Lamp base |
E27 |
Carton size |
30.5*27.5*23cm/pcs/ctn |
Pakcing |
Neatural packing |
Operation Temperature |
-30℃-+50℃ |
Warranty |
2 YEARS |
Logo |
Printed on fitting |
Certificates | CE, RoHS, ISO9001:2008 |
Usage
we can provide empty housing or complete with control gear and lamp,if you have own ballast and lamp,please as following:
* cut off the power firstly
* use the screws driver tools to open the cover of control gear department
* install ballast,ignitor,capacitor on the existing electric plate inside control box
* use the special too to open the front glass
* put inside high pressure sodium lamp or metal halide lamp with R7s lampholder
* confirm all safe connection,then getting through the power,light it.
if you order complete set,just get through the power cable then light it.
Packing Details:
individual packing,one pc is one master carton
packing size: 30.5*27.5*23cm 3.6/3kg/empty housing/pc/ctn for SDFL324 flood light
Delivery time: 15-20 work days
Applications:
widely used in sport lighting,stadium lighting,public lighting purpose,parking area,loadinig docks and landscape,etc.
Certificates: CE / Rosh / EMC / LVD / SASO / COC available
QUALITITY SYSTEM: ISO9001
OEM or Customized design is available,just give us an email or a call,please!
