Product Details:
Payment & Shipping Terms:
|
| Power: | 100 Watts | Chip Type: | COB |
|---|---|---|---|
| Driver: | Inside Driver | CRI: | >82 |
| Size: | 385*285*178mm | Luminous Flux: | 11000lm ±5% |
| Color Temperature: | 3000-6000K | Input Voltage: | AC100-277V |
| Power Factor: | >0.95 | Shell Color: | Black Or White |
| Reflector:: | Nanostructured Coating | ||
| High Light: | commercial outdoor led flood light fixtures,industrial outdoor led flood lights |
||

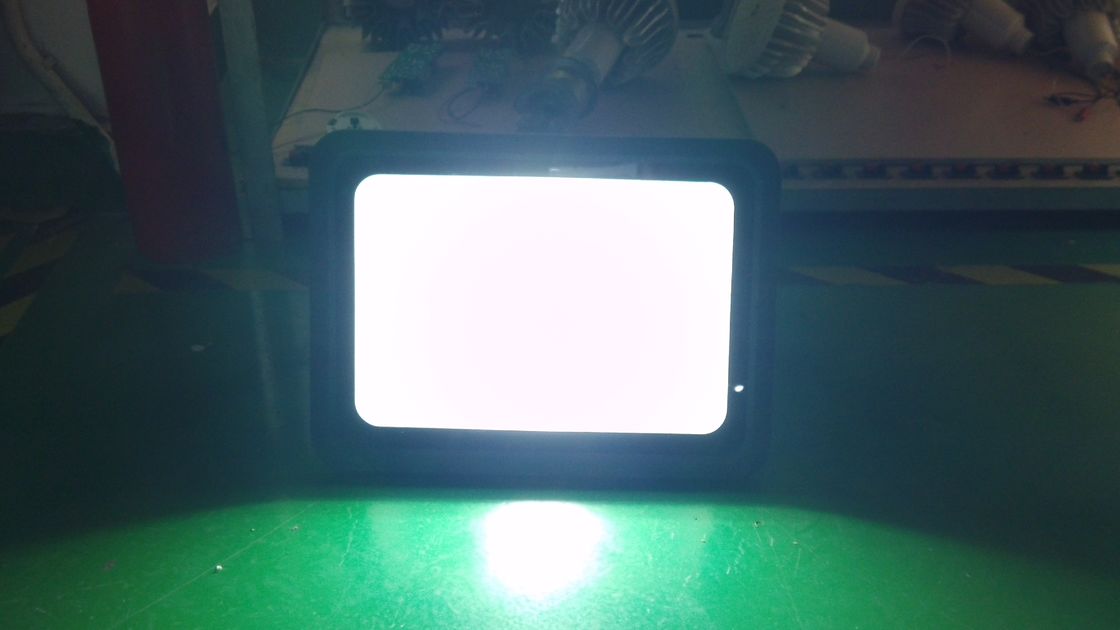

High Lumens 100W COB Outdoor LED Flood Light COB 11000lm IP67 AC180-260V
Quick Details:
Specifications:
|
Item Type |
XTFLA-100W |
|
Power |
100W |
|
Replacement |
200-300W |
|
Input Voltage |
AC100-277V/AC85-265V |
|
Frequency |
50/60Hz |
|
Size |
W385*H285mm |
|
Chip Type |
COB |
|
LED Quantity |
1 pcs |
|
Luminous Flux |
11000lm ±5% |
|
Light Efficiency |
110 lm/w |
|
Color Temperature |
3000-6000K |
|
Color Rendering Index |
>75Ra |
|
Beam Angle |
120° |
|
Working Temperature |
-30℃~60℃ |
|
IP Rating |
IP67 |
|
Working Lifetime |
40,000 hours |
|
Material of Cover |
Glass |
|
Cover Type |
Transparent |
|
Lamp Shell Color |
Black or White |
|
Material of Shell |
Aluminum Alloy |
|
Driver |
Internal Driver |
|
Lamp Weight:G.W./N.W. |
6.5kg/5.8kg |
|
Pcs/CTN |
1pcs/Carton |
|
Carton Size(1 pcs) |
400*300*200mm |
Description:
1, Aluminum Alloy Chassis is good for heat dissipation;
2, Using liquid alloy material on the chips and chassis, it can quickly distribute the heat well and make it average;
3, Not only the driver but also the COB has driver, if the main driver is broken, the driver on the COB will start working to remain lighting;
4, The driver has a unique automatic limiting current function, which can automatically reduce the current and voltage when the temperature reaches the highest temperature;
5, There are many chips on the COB, some will work and some won’t work normally, if the operating chips are broken, that “unwork” chips will start to work for protection;
6, Using excellent explosion-proof glass cover, more safety in use;
7, IP65 makes sure that this lamp can be used outdoor.
Competitive Advantage:
1, Using liquid alloy material on the chips and chassis, it can quickly distribute the heat well and make it average;
2, Not only the driver but also the COB has driver, if the main driver is broken, the driver on the COB will start working to remain lighting;
3, There are many chips on the COB, some will work and some won’t work normally, if the operating chips are broken, that “unwork” chips will start to work for protection;
4, Nano-coating reflector makes the light more well-distributed;
5, Input over voltage protection, there’s no damage if the input voltage is exceed the operating voltage, the power will become lower for protection.
Applications:
|
Industrial Places |
Factories, Construction Site,Highway; |
|
Public Places |
Advertising Board, Courtyard, Subway, Tunnel, Railway, Plaza, Hotel, Airports, Stations, Gas Stations, Toll Stations, Parks, Outdoor Stadiums, Museums, Convention Centers, Apartments, Villas, Commercial buildings; |
|
Entertainment Places |
Movie theaters, Fitness halls,etc. |
Attentions:
