Product Details:
Payment & Shipping Terms:
|
| Power: | 200 Watts | Luminous Flux: | 22000lm ±5% |
|---|---|---|---|
| Chip Type: | COB | Color Temperature: | 3000-6000K |
| Driver: | Inside Driver | Input Voltage: | AC100-277V |
| CRI: | >82 | Power Factor: | >0.95 |
| Size: | 454*322*186mm | Shell Color: | Black Or White Or Silvery |
| High Light: | commercial outdoor led flood light fixtures,warm white led outdoor flood light |
||

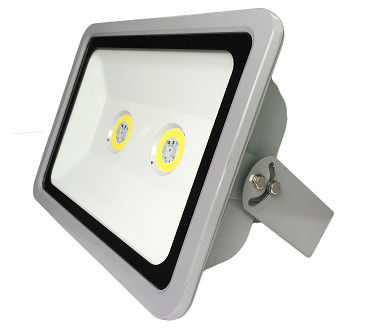

IP67 200W COB Outdoor LED Flood Lights Inside driver Waterproof Wide Voltage
Quick Details:
Specifications:
|
Item Type |
XTFLA-200W |
|
Power |
200W |
|
Replacement |
400-600W |
|
Input Voltage |
AC180-260V / 100-277V |
|
Frequency |
50 / 60Hz |
|
Size |
W454*H322mm |
|
Chip Type |
COB |
|
LED Quantity |
2 pcs |
|
Luminous Flux |
22000lm ±5% |
|
Light Efficiency |
110 lm/w |
|
Color Temperature |
3000-6000K |
|
Color Rendering Index |
>75Ra |
|
Beam Angle |
160° |
|
Working Temperature |
-30℃~60℃ |
|
Working Lifetime |
40,000 hours |
|
Material of Cover |
Glass |
|
Cover Type |
Transparent |
|
Lamp Shell Color |
Black or White or Silvery |
|
Material of Shell |
Aluminum Alloy |
|
Driver |
Internal Driver |
|
Lamp Weight:G.W./N.W. |
10.2kg/9.8kg |
|
Pcs/CTN |
1pcs/Carton |
|
Carton Size(1 pcs) |
480*350*200mm |
Description:
1, Aluminum Alloy Chassis is good for heat dissipation;
2, Using liquid alloy material on the chips and chassis, it can quickly distribute the heat well and make it
average;
3, Not only the driver but also the COB has driver, if the main driver is broken, the driver on the COB will
start working to remain lighting;
4, The driver has a unique automatic limiting current function, which can automatically reduce the current
and voltage when the temperature reaches the highest temperature;
5, There are many chips on the COB, some will work and some won’t work normally, but if the operating chips are broken, that “unwork” chips will start to work for protection;
6, Using excellent explosion-proof glass cover, more safety in use.
Competitive Advantage:
1, Using liquid alloy material on the chips and chassis, it can quickly distribute the heat well and make it
average;
2, Not only the driver but also the COB has driver, if the main driver is broken, the driver on the COB will start
working to remain lighting;
3, There are many little chips on the COB, some will work and some won’t work normally, but if the operating chips are broken, that “unwork” chips will start to work for protection;
4, Nano-coating reflector makes the light more well-distributed;
5, Input over voltage protection, there’s no damage if the input voltage is exceed the operating voltage, the
power will become lower for protection.
Dimension of this 200W LED Flood Light:
Installation of this 200 W LED Flood Light:
Applications:
|
Industrial Places |
Factories, Construction Site,Highway; |
|
Public Places |
Advertising Board, Courtyard, Subway, Tunnel, Railway, Plaza, Hotel, Airports, Stations, Gas Stations, Toll Stations, Parks, Outdoor Stadiums, Museums, Convention Centers, Apartments, Villas, Commercial buildings; |
|
Entertainment Places |
Movie theaters, Fitness halls,etc. |
Warning Note:
a) Please make sure all the power is turned off before installation is completed;
b) Working Voltage:Inside Driver AC100V~277V 50/60Hz, please check the voltage before installation.
