Product Details:
Payment & Shipping Terms:
|
Power: | 300W | Luminous Flux: | 33000lm ±5% |
---|---|---|---|
Chip Type: | COB | Color Temperature: | 3000-6000K |
Driver: | Waterproof Inside Driver | Input Voltage: | AC100-277V / AC 180-260V |
CRI: | >75 | Power Factor: | >0.95 |
Size: | 454*322*186mm | Material Of Shell: | Aluminium Alloy |
Reflector: | Nanostructured Coating | Cover: | Anti-explosion Glass |
High Light: | industrial outdoor led flood lights,warm white led outdoor flood light |

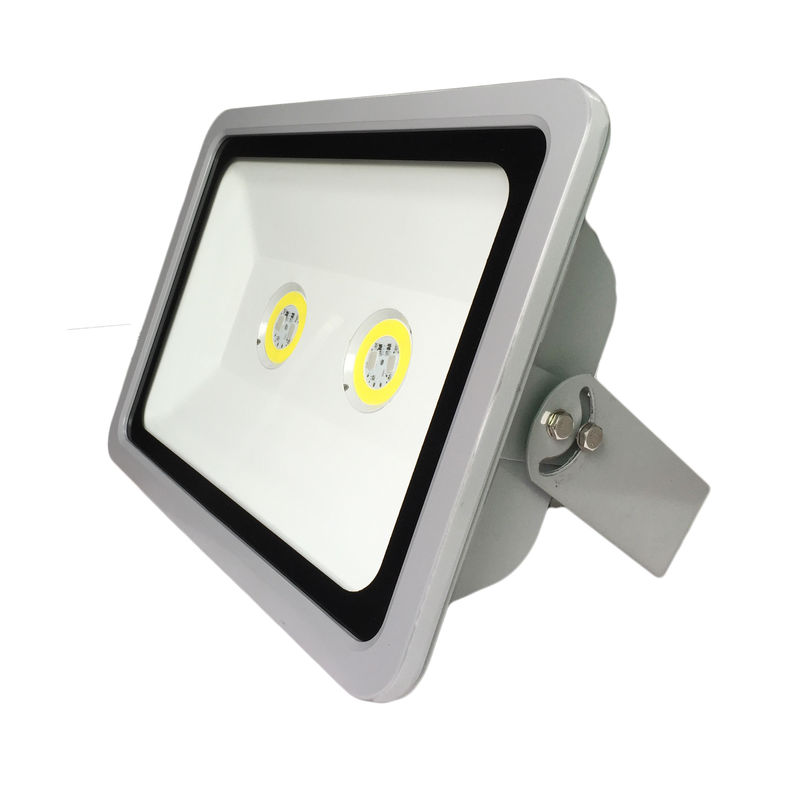

No flicker 300 Watts CRI 80 Outdoor LED Flood Lights Anti-Explosion 110 lm / w
Quick Details:
Specifications:
Item Type |
XTFLA-300W |
Power |
300W |
Replacement |
600-900W |
Input Voltage |
AC180-260V / 100-277V |
Frequency |
50 / 60Hz |
Size |
W454mm*H322mm |
Chip Type |
COB |
LED Quantity |
2 pcs |
Luminous Flux |
33000lm ±5% |
Light Efficiency |
110 lm/w |
Color Temperature |
3000-6000K |
Color Rendering Index |
>75Ra |
Beam Angle |
160° |
Working Temperature |
-30℃~60℃ |
Working Lifetime |
40,000 hours |
Material of Cover |
Anti-explosion Glass |
Cover Type |
Transparent |
Lamp Shell Color |
Black or White or Silvery |
Material of Shell |
Aluminum Alloy |
Driver |
Waterproof Internal Driver |
Lamp Weight:G.W./N.W. |
10.2kg/9.8kg |
Pcs/CTN |
1pcs/Carton |
Carton Size(1 pcs) |
480*350*200mm |
Description:
1) High-integrated illuminant technology: New desigh chip integrated packaging (single 30W-200W series), long lifespan, low light attenuation;
2) Heat dissipation: Aluminum alloy as perforation radiator, completely solve the high power LED
heat dissipation problems, lamp radiator is diecasted as stereoscopic structure with large contact
area to air, accelerate air natural convection, good cooling effect;
3) Using liquid alloy material between the chips and chassis, it can distribute the heat quickly;
4) Not only have a driver on the rear cover but also the COB has driver, if the main driver dose not work, the driver on the COB will start working to keep lighting;
5) The driver has a unique automatic limiting current function, which can automatically reduce the current and voltage when the temperature reaches the highest temperature;
6) COB is made of many little chips, some will work and the others won’t work normally, but if the operating chips are broken, that “unwork” chips will start to work for protection;
7) Using Nanostructured Coating on the reflector is one of new-tech in the world.
Dimension of this 300W LED Flood Light:
Installation of this 200 W LED Flood Light:
Applications:
