Product Details:
Payment & Shipping Terms:
|
Brand: | ZLONE | Model: | ZL-TGD-70W |
---|---|---|---|
Wattage: | 70watt | LED Brand: | Bridgelux Chip 45mil |
Lamp Efficiency: | 100LM/W | Lifespan: | 50000Hours |
High Light: | waterproof led flood lights,external led flood lights |

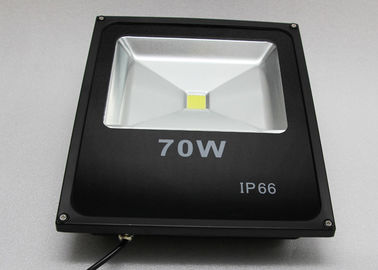

waterproof ip66 70w outdoor led flood light,LED projector lamp 6000K cold white
Features:
1.Adopted optical light distribution: No Glare, Even Lumen Output.
2.Extremely efficient LED chip technology
3.High Luminous efficiency
4.Excellent Heat Resistance. Rated IP65
5.Alloy exterior finished with high quality corrosion resistance coating
6.CE/RoHS/FCC/SGS approved
7. THREE YEARS WARRANTY
Customized your LED flood light:
1. Different led chip brand:Epistar/Bridgelux/CREE
2. Dimmable are available,compatible most dimmer,RF remote prepared
3. Isolated power supplier and non-isolated power could be chosen.
4. Regular lumen 90-100lm/w,Highest lumen 130lm/w or 120-140lm/w for chosen.
5. Different power supplier solution:lowest temperature upto -40 degree.it could be updated to Meanwell power supplier.
6. Long life span,20000/50000 hours,2-5 years warranty by your request.
Specifications:
Input Voltage |
AC 180-260V |
|||
Frequency Range |
50/60HZ |
|||
Total Harmonic Distortion |
≤ 9% |
|||
Power Factor |
>0.95 |
|||
Working Voltage |
DC 30-36V |
|||
LED Quantity |
1PC |
|||
LED Consumption |
70W |
|||
System Consumption |
75W |
|||
Beam Angle |
60/120° |
|||
Luminous Efficiency |
85 LM/W |
|||
Luminous |
6800±5% LM |
|||
Color Temperature |
Warm white (WW) |
2800-3000K/3000-3200K |
||
Natural white (NW) |
3500-4500K |
|||
Pure white (PW) |
5500-6500K |
|||
Color Rendering Index |
WW |
Ra>75
|
||
NW / PW |
Ra>80
|
|||
Average Luminance (Accord to PW:5500-6500K) |
Beam Angle |
Height 5M |
Height 6M |
Height 7M |
120° |
126.76lx |
83.27lx |
59.15lx |
|
Working Temperature |
-30℃ - +50℃ |
|||
Storage Temperature |
-30℃ - +65℃ |
|||
IP Grade |
IP65 |
|||
LED working Life-span |
>50,000H |
|||
Color of lamp shell |
Silver/Black |
|||
Certificates |
CE, RoHS, PSE |
-------------------------------------PRODUCT Feature ---------------------------------------
1. Led chip: High lumen EPISTAR chip-on-board chips or BRIDGELUX delivery 80lm/w high lumens in high CRI for lighting performance and have 120o beam angle for lighting.
2. Lifespan: ZLONE’s led flood light has 50000 hours lifespan for using. You can using 5 years base on using 10 hours per day.
3. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.
4. Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. Also the quality of the lamp housing is same.
5. Glass Cover: High quality 4mm-5mm thickness heat-resistant temper glass will not splash when the flood light is exploded in wrong operation. It guarantees 100% light transmittance and uniform light distribution.

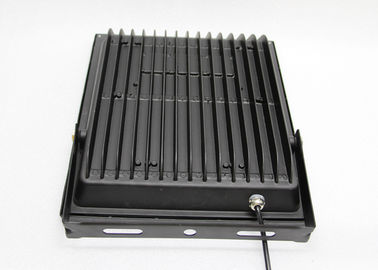

6. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.
7. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.

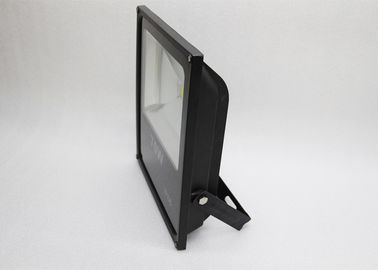

8. Adjustable bracket: It can adjust 0-180o beam angle in horizontal direction for different application purpose.
9. Warranty: ZLONE offers 2-years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.
