| High Light: | t5 led fluorescent tube,t5 led lamps |
||
|---|---|---|---|
4feet 120lm 120° 18w LED Tube T5 AC 85 - 277V For Decoration Lighting
A: Technical parameters of led tube 4feet 16w t5 lamp
| No. | Item No.: | LD300Y/LD600Y/LD900Y/LD1000Y/LD1200Y |
| 1 | Product type | led tube t5 |
| 2 | LED Type | SMD2835 |
| 3 | Power | 4W/8W/12W/14W/16W |
| 4 | Voltage | AC100-240V/50-60Hz |
| 5 | CRI | >80 |
| 6 | Beam angle | 120° |
| 7 | Luminous Efficiency | 80lm/w |
| 8 | Lumen Flux | 320LM/640LM /960LM /1120LM/ 1280LM |
| 9 | Color Temp | WW: 2800-3200K NW: 4000-4500K CW: 5500-6000K |
| 10 | Length | 300mm(1ft) /600mm (2ft)/900mm(3ft)/1000mm(3.3ft) /1200mm(4ft) |
| 11 | LED Quantity | 18 /48 /72/88 /96pcs |
| 12 | Material | 1.0mm aluminiun alloy + PC cover |
| 13 | Lamp Cap | G13 |
| 14 | Work Temp | -10--+50 °C |
| 15 | Lifespan | 50000 hs |

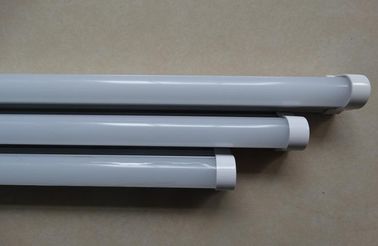

B. Product show of led tube t5 lamp
C. Londeed T5 led tube illuminate picture (White 6000-6500K)
Different lighting color temperature of new led tube
D: Installation of led tube t5 lamp
Notice:
1. Before installation, check if the voltage is suitable. The TUBE must work under the right voltage according to the specification.
2. Before installation, cut off the power first for safety.
3. Do not open it.
4. Recommend indoor use.
5. Please use it in a ventilation environment and keep it from water.
6. DO NOT connect power (positive & negative) to the two pins at one end only. If they are connected together (positive/negative), you will create a short circuit!
Installation methods and accessories of integrated T5 LED Tube:
