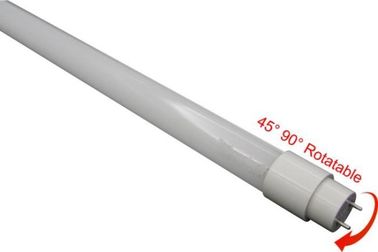

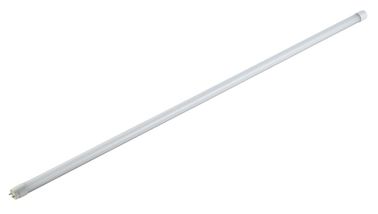

1500mm 45 / 90° Rotatable Dustproof G13 T8 LED Tube Light For Family IP33



1500mm 45 / 90° Rotatable Dustproof G13 T8 LED Tube Light For Family IP33





Quick Detail:



Japanese led light tube 30W with PSE ETL SAA, CE ROHS 45 ° 90° Rotatable 2ft 1500mm 22W 108E22-X30R T8 LED Tube Light Fixtures

• Model Number: 108E30-X30R
• Item Type: 1.5m 45 ° 90° Rotatable LED T8 tube
• Light Source: Epistar 3014SMD 10*30mil
• Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
• Power: 30W
• Input Voltage(V): AC 110~240V
• Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
• Service: OEM label-print
• Warranty: 3years



Description:



• Model Number: 108E30-X30R
• Item Type: 1.5m 45 ° 90° Rotatable LED T8 tube light
• Light Source: Epistar 3014SMD 10*30mil
• Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
• Power: 30W
• Input Voltage: 110~240V AC
• Light efficiency: 85-100lm/w
• Lamp Luminous Flux: 1540~2100Lm
• Lamp Luminous Efficiency(lm/w): 90
• CRI (Ra>): 70
• Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
• Working Temperature: -20℃ - 40℃
• Working Lifetime: 40000hrs
• Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
• Service: OEM label-print
• Warranty: 3years
• Rotatable: 45 degree /90 degree



Applications:



Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.



Specifications:



Rated Voltage	100~240VAC / 50~60 Hz
Wattage	22W*
Power Factor	>0.85
Lumen	1540~2100Lm*
Efficiency	>75Lm/w*
Beam Angle	≥180°
Flux(Lux)@1M	＞330Lux*
Lifespan (hrs) @25℃	40,000hrs *
Ambient Temp. (℃)	-20℃~40℃
Storage Temp. (℃)	-40℃~65℃
Color Temp.	3000K±300K, 4000K±400K, 5700K±570K
CRI	＞70%
Key Material	Aluminum Alloy+ PC Cover
N.W.(g)	470g*
Warranty	3years



Item	Wattage	CCT	Flux@1m	Lumen	Efficiency	CRI
108E22-R30R	22W	3000K±300K	330lux*	1540~1700lm*	>70Lm/w*	>80%
108E22-T30R	22W	4000K±400K	360lux*	1760~1950lm*	>80Lm/w*	>70%
108E22-W30R	22W	5700K±570K	380lux*	1870~2050lm*	>85lm/w*	>70%





Size:



Length A	Length  B	Length  C	Length  D	Dia  E	Dia  F
1513mm	1506mm	1499mm	44mm	Ø31.2	Ø28





Flux Data:



Distance Item	1m	2m	3m
108E22-R10	330 lux	72 lux	38 lux
108E22-T10	360 lux	76 lux	42 lux
108E22-W10	380 lux	80 lux	45 lux





Certificate Applicable:

CE Applicable standards: EN55015:2006+A12007+A2:2009

                                                EN61547:2009

                                                EN61000-3-2:2006+A1:2009+A2:2009

                                                EN61000-3-3:2008

Packing:

Qty/CTN:  25pcs
Gross Weight:  13.5Kg
Size of Carton:
CTN A: 1218×34×34mm
CTN B: 1235×210×185mm


Competitive Advantage:

＊ Structure & Material

1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.

2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%

3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!

4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

＊ Optics Design

1) Glare Index <19, No glare for our nice optics design

2) The lighting effect is very even (just like traditional fluorescent tube

＊ Quality Control & Lead time Control

1) Strict Materials testing & purchasing

2) Automatically production with SMT & Reflow Soldering machines

3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.

4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!

＊ Certificate

 CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,

CE 120cm 45 ° 90° Rotatable T8 SMD led tube light, 22W 1.2m T8 led tube lighting, 22W 3014SMD T8 led tube lamp
