Epistar SMD LED T8 tubes

China Epistar SMD LED T8 tubes supplier
Epistar SMD LED T8 tubes supplier Epistar SMD LED T8 tubes supplier Epistar SMD LED T8 tubes supplier

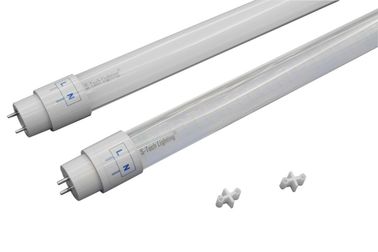

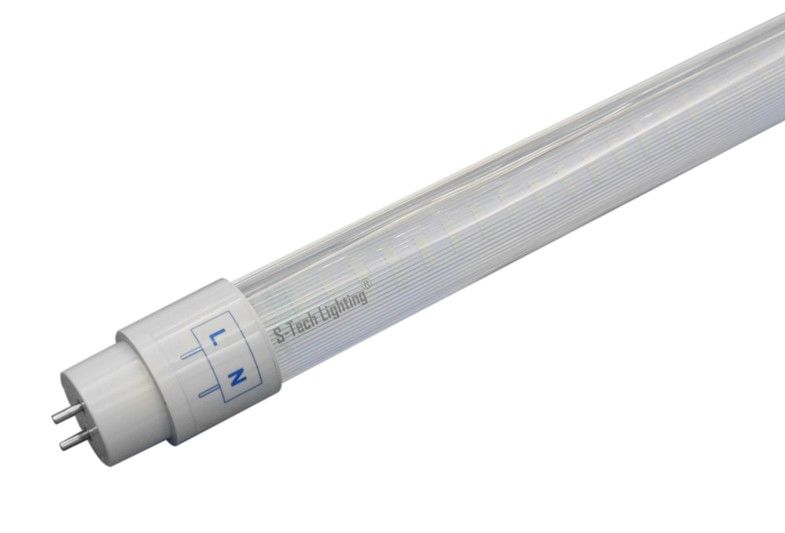

Large Image :  Epistar SMD LED T8 tubes

Product Details:

Place of Origin: Shenzhen City, China
Brand Name: S-Tech, Lightingtalk
Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
Model Number: 108D18-X10

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Qty/CTN: 30pcs, Gross Weight: 13Kg
Delivery Time: 3~7 days
Payment Terms: L/C,D/P,T/T, Western Union, cash , pay pal
Supply Ability: 100000 Piece/Pieces per Month
Contact Now
Detailed Product Description
IP Rating: IP33 Luminous Flux: 1260~1700Lm
Tube Length: 1.2m Application: Home, Office
Color Temperature: Natural White, Cold White Features: Waterproof, Dustproof, High Luminous
Light Source: Epistar Product Name: T8 LED Tube, LED T8 Tubes





AC 110 ~ 240V 1.2m T8 LED Tube , Epistar 3014 SMD LED T8 tubes for home and Office





Quick Detail:



Japanese led light tube 18w with PSE ETL SAA, CE ROHS 4ft 1200mm 18W 108D18-X10 T8 LED Tube Light Fixtures

  • Model Number: 108D18-X10
  • Item Type: 1.2m LED T8 tube
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
  • Power: 18W
  • Input Voltage(V): AC 110~240V
  • Light efficiency: 85-100lm/w
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years



Description:



  • Model Number: 108D18-X10
  • Item Type: 1.2m LED T8 tube light
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
  • Power: 18W
  • Input Voltage: 110~240V AC
  • Light efficiency: 85-100lm/w
  • Lamp Luminous Flux: 1260~1700Lm
  • Lamp Luminous Efficiency(lm/w): 90
  • CRI (Ra>): 70
  • Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
  • Working Temperature: -20℃ - 40℃
  • Working Lifetime: 40000hrs
  • IP Rating: IP33
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years





Applications:



Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.



Specifications:



Rated Voltage

100~240VAC / 50~60 Hz

Wattage

18W*

Power Factor

>0.85

Lumen

1260~1700Lm*

Efficiency

>75Lm/w*

Beam Angle

≥180°

Flux(Lux)@1M

>290Lux*

Lifespan (hrs) @25℃

40,000hrs *

Ambient Temp. (℃)

-20℃~40℃

Storage Temp. (℃)

-40℃~65℃

Color Temp.

3000K±300K, 4000K±400K, 5700K±570K

CRI

>70%

Key Material

Aluminum Alloy+ PC Cover

N.W.(g)

360g*

Warranty

3years



Item

Wattage

CCT

Flux@1m

Lumen

Efficiency

CRI

108D18-R10

18W

3000K±300K

290lux*

1260~1400lm*

>70Lm/w*

>80%

108D18-T10

18W

4000K±400K

320lux*

1440~1600lm*

>80Lm/w*

>70%

108D18-W10

18W

5700K±570K

355lux*

1530~1700lm*

>85lm/w*

>70%





Size:



Length A

Length  B

Length  C

Length  D

Dia  E

Dia  F

1212mm

1205mm

1198mm

45mm

Ø28.7

Ø26



Epistar SMD LED T8 tubes



Flux Data:



           Distance

Item

1m

2m

3m

108D18-R10

290 lux

67 lux

34 lux

108D18-T10

320 lux

72 lux

37 lux

108D18-W10

355 lux

76 lux

40 lux





Certificate Applicable:



CE Applicable standards: EN55015:2006+A12007+A2:2009

                                                EN61547:2009

                                                EN61000-3-2:2006+A1:2009+A2:2009

                                                EN61000-3-3:2008

Epistar SMD LED T8 tubes

Epistar SMD LED T8 tubes

Packing:



Qty/CTN:  30pcs

Gross Weight:  13Kg

Size of Carton:

CTN A: 1218×32×32mm

CTN B: 1235×210×180mm

Epistar SMD LED T8 tubes



Competitive Advantage:



* Structure & Material

1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.

2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%

3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!

4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

* Optics Design

1) Glare Index <19, No glare for our nice optics design

2) The lighting effect is very even (just like traditional fluorescent tube

* Quality Control & Lead time Control

1) Strict Materials testing & purchasing

2) Automatically production with SMT & Reflow Soldering machines

3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.

4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!



* Certificate

 CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,



CE 120cm T8 SMD led tube light, 18W 1.2m T8 led tube lighting, 18W 3014SMD T8 led tube lamp
