High efficiency T8 LED Tube lights 4ft

China High efficiency T8 LED Tube lights 4ft supplier
High efficiency T8 LED Tube lights 4ft supplier High efficiency T8 LED Tube lights 4ft supplier High efficiency T8 LED Tube lights 4ft supplier

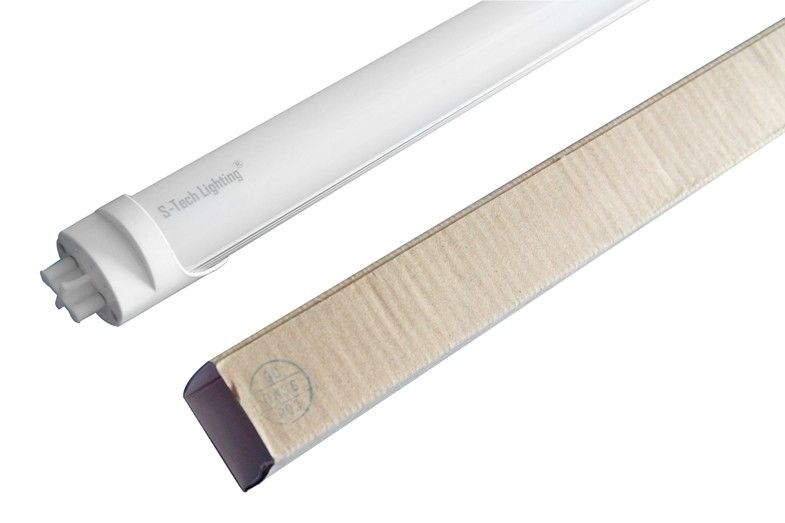

Large Image :  High efficiency T8 LED Tube lights 4ft

Product Details:

Place of Origin: Shenzhen City, China
Brand Name: S-Tech, Lightingtalk
Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
Model Number: 108D22-X10

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiation
Packaging Details: Qty/CTN: 30pcs, Gross Weight: 13Kg
Delivery Time: 3~7 days
Payment Terms: L/C,D/P,T/T, Western Union, cash , pay pal
Supply Ability: 100000 Piece/Pieces per Month
Contact Now
Detailed Product Description
CRI (Ra>): 70 Input Voltage: 220V
IP Rating: IP33 Luminous Flux: 1540 ~ 2100Lm
Power: 22W Tube Length: 4ft
Application: Factory Features: High Efficiency
Key Material: Aluminum Alloy Product Name: T8 LED Tube





220V 22W 1540 ~ 2100Lm High efficiency T8 LED Tube lights for factory Ra 70





Quick Detail:



Japanese led light tube 22w with PSE ETL SAA, CE ROHS 2ft 1200mm 22W 108D22-X10 T8 LED Tube Light Fixtures

  • Model Number: 108D22-X10
  • Item Type: 1.2m LED T8 tube
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (94-V0)
  • Power: 22W
  • Input Voltage(V): AC 110~240V
  • Light efficiency: 85-100lm/w
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years



Description:



  • Model Number: 108D22-X10
  • Item Type: 1.2m LED T8 tube light
  • Light Source: Epistar 3014SMD 10*30mil
  • Lamp Body Material: Pure Aluminum Alloy+ PC cover (fire-proof 94-V0, imported form Taiwan, you can choose frosted, transparent PC, the luminousness is ≥ 90%)
  • Power: 22W
  • Input Voltage: 110~240V AC
  • Light efficiency: 85-100lm/w
  • Lamp Luminous Flux: 1540~2100Lm
  • Lamp Luminous Efficiency(lm/w): 90
  • CRI (Ra>): 70
  • Color Temperature: Warm White(3000K±300K), Natural White(4000K±400K), Cold White(5700K±570K)
  • Working Temperature: -20℃ - 40℃
  • Working Lifetime: 40000hrs
  • IP Rating: IP33
  • Certification: CE,C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA,
  • Service: OEM label-print
  • Warranty: 3years



Applications:



Widely used in the lighting of office, hospital, school, business area, airport, metro station, flyover, signboard, Gymnasium, landmark and so on.



Specifications:



Rated Voltage

100~240VAC / 50~60 Hz

Wattage

22W*

Power Factor

>0.85

Lumen

1540~2100Lm*

Efficiency

>75Lm/w*

Beam Angle

≥180°

Flux(Lux)@1M

>350Lux*

Lifespan (hrs) @25℃

40,000hrs *

Ambient Temp. (℃)

-20℃~40℃

Storage Temp. (℃)

-40℃~65℃

Color Temp.

3000K±300K, 4000K±400K, 5700K±570K

CRI

>70%

Key Material

Aluminum Alloy+ PC Cover

N.W.(g)

360g*

Warranty

3years



Item

Wattage

CCT

Flux@1m

Lumen

Efficiency

CRI

108D18-R10

22W

3000K±300K

350lux*

1540~1700lm*

>70Lm/w*

>80%

108D18-T10

22W

4000K±400K

390lux*

1760~1950lm*

>80Lm/w*

>70%

108D18-W10

22W

5700K±570K

410 lux*

1870~2100lm*

>85lm/w*

>70%





Size:



Length A

Length  B

Length  C

Length  D

Dia  E

Dia  F

1212mm

1205mm

1198mm

45mm

Ø28.7

Ø26



High efficiency T8 LED Tube lights 4ft



Flux Data:



           Distance

Item

1m

2m

3m

108D18-R10

290 lux

67 lux

34 lux

108D18-T10

320 lux

72 lux

37 lux

108D18-W10

355 lux

76 lux

40 lux





Certificate Applicable:



CE Applicable standards: EN55015:2006+A12007+A2:2009

                                                EN61547:2009

                                                EN61000-3-2:2006+A1:2009+A2:2009

                                                EN61000-3-3:2008

High efficiency T8 LED Tube lights 4ft

High efficiency T8 LED Tube lights 4ft

Packing:



Qty/CTN:  30pcs

Gross Weight:  13Kg

Size of Carton:

CTN A: 1218×32×32mm

CTN B: 1235×210×180mm

High efficiency T8 LED Tube lights 4ft



Competitive Advantage:



* Structure & Material

1) We use high quality pure Aluminum Alloy, it is heavier than other supplier tube, our PC cover is fire-proof 94-V0 and imported from Taiwan.

2) PC cover has frosted, translucent, optical for you choose, the luminousness is ≥ 90%

3) The PC shell has anti-oxidation processing, not turn to Yellow within 3 years!

4)Electrolytic capacitor- Rubicon; LED- Epistar chip (Taiwan Brand); MLCC- TDK (Japanese Brand),Yageo (Taiwan Brand); MOS-UTC (Taiwan Brand)/Infineon (Germany Brand)

* Optics Design

1) Glare Index <19, No glare for our nice optics design

2) The lighting effect is very even (just like traditional fluorescent tube

* Quality Control & Lead time Control

1) Strict Materials testing & purchasing

2) Automatically production with SMT & Reflow Soldering machines

3) Strict test processing: Special Automatically Aging test line, integrating sphere test..) to warranty stable tubes ex-factory.

4) Product Reject Ratio is <2‰, we guarantee 3 years strictly!



* Certificate

 CE,C-tick, FCC, TUV, LVD, PSE, RoHS, SAA,



CE 120cm T8 SMD led tube light, 22W 1.2m T8 led tube lighting, 22W 3014SMD T8 led tube lamp
