Product Details:
Payment & Shipping Terms:
|
| IP Rating: | IP65 | Item Type: | Flood Light |
|---|---|---|---|
| Power Factor: | >0.95 | Lamp Body Material: | Aluminum |
| Input Voltage: | AC100-277V | Power Available: | 5W-12W |
| High Light: | led outdoor flood light,outdoor led flood lighting |
||
Material and features:
1. Die-cast aluminum body, high strength; Static power coating;Water proof Ip65
2. high light transmittance tempered glass;
3. PC optical lens, high lumen output;
4. Integrated optical and electricity chamber, prolong the life;
5. LED chip with bridgelux or Epistar, our own brand driver or Meanwell driver
6. Four different size and power, meet various needs;
7. Bracket type installing, easy for maintenance.
8. Classic LED flood light type, widely used in various places.
We are speclizing in LED Lights:
Product range:
1. LED flood light, from 5w to 400w
2. LED high bay light, from 20w to 400w
3. LED projecter light, from 30w to 1200w
4. LED street light, from 20w to 280w
5. LED tunnel light, from 40w to 280w
6.LED explosion proof light, from 20w to 120w
Warranty Policy
We offer replacements for any defective lighting products undoubtedly if a lamp is to be found not working within the warranty period 2 years, and it was not a result of wrong installation or third part damage.
Trade Terms
1. Payment: T/T, Westem Union & Paypal or negociate
2. Shipping freight are quoted under your requests
3. Discounts are offered based on order quantities
4. All common shape, size, color, brightness is available here and OEM &ODM is welcomed.
5. Your inquiry related to our products or prices will be replied in 24hours.
6. All your private information such as design ideas, your sales area, & company info will be kept secret.
Packing&Delivery:
1. Packing:standard cartoon or packing as customer's requirement
2. Dilivery Time:2-5 working days for samples,6-20 workdays for big order
Shipping options:
1. By express:such as DHL,UPS,TNT,FEDEX ect
2. Airfreight:when you order more than 100KG which will be more economical than express
3. Seafreight:shipping by sea is available after customer provide destination port
4. Agent designated by client:please tell us the contact details of your shipping ugent/forw
1. Professional person communicate with you before the order
2. OEM & ODM welcome, more than 1 year OEM experience, independent R&D ability, and patent design.
3. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
4. Convenient transportation fast delivery, Close & Easy access to both Shenzhen Seaport and Airport.
5. Flexible, small amount order accepted. Monthly supply capacity:3.0000~100.000pcs

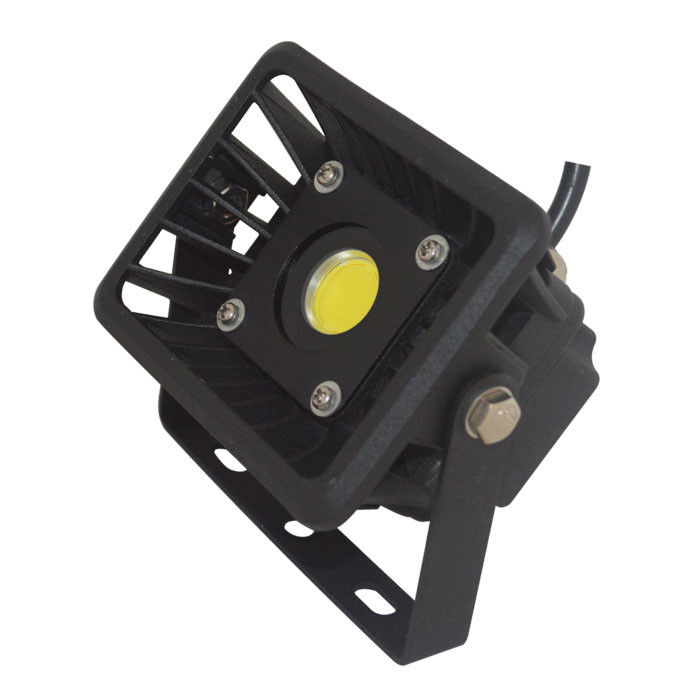

Specifications for 10w UL led flood light:
|
LB-FS100-W010 LED Flood Light Main Technical Parameters |
||||
|
Input Voltage |
AC100V ~ 277V |
Frequency Range |
50Hz ~ 60Hz |
|
|
Total Harmonic Distortion |
≤12% |
Power Factor |
>0.96 |
|
|
Power Efficiency |
>90% |
LED Working Voltage |
DC20~ 40V |
|
|
System Consumption |
10±5% |
LED Qty |
1 PCS |
|
|
LED Luminous Efficiency |
100LM/W |
Led Initial Flux |
850-950lm |
|
|
Illumination Uniformity |
>0.5 |
Lamp's Efficiency |
>80% |
|
|
Color Temperature |
WW |
3000K ±10% |
Color Rendering Index |
Ra>70 |
|
PW |
4200K ±10% |
Light Distribution |
Symmetric /Circular light spot |
|
|
CW |
6200K ±10% |
Light Design |
LED + Reflector |
|
|
LED Junction Temperature |
35℃ |
IP Grade |
IP67 |
|
|
Working Life-span |
50000H |
Power line |
1.0mm2 Cable |
|
|
|
Brown |
L - Live |
NW |
0.6kg |
|
Blue |
N - Neutral |
GW(1pcs/18pcs) |
0.7kg /13.1kg |
|
|
Yellow/Green |
G-Ground |
Inner Box Size |
125*95*100mm |
|
|
Environment Temperature |
-45℃~+60℃ |
Carton Size |
400*310*225mm |
|
|
The color of the lamp shell |
Black,Silver |
Certificate |
UL,cUL,CE,ROHS |
|
Application:
1. LED flood light
Squares,parks,art venues,factory,stadiums,golf courses,shops,subway stations,gas stations,buildings,sculptures,green lighting,decorative lighting,toll station, hypermarket, exhibition, center, gym, landscape lighting etc.
2. LED high bay light
Workshop, parking lot,warehouse,school,supermarket,factory, storeroom, toll station, hypermarket, exhibition, center, gym etc.
3. LED street light
City high way,main road,sub-distributors,slip,gas stations,car parks, city main street, slip street, fast lane, residential street, municipal roads parks,city squares,courtyards and other road lighting.
4. LED tunnel light
Tunnels,workshops,warehouse,stadiums,and all kinds of metallurgical factory,construction and other places large area flood lighting,ideal for the urban landscape,billboards,building facades for landscape lighting.
5. LED projecter light
Construction sites,building outdoor lighting, dock lighting, hotel, landscape lighting etc.
6. LED explosion proof light
Gas station, oil field, mind area, place require safty lighting etc.
