Product Details:
Payment & Shipping Terms:
|
Wattage: | 80W | Packing: | 2pcs/CTN |
---|---|---|---|
Class II: | I | Warranty: | 3-Year |
Material: | Aluminium Cover With Toughened Glass | Certificate: | CE ROHS UL TUV SGS |
CRI: | >75 | IP Rating: | IP65 |
High Light: | waterproof led flood lights,dimmable outdoor led flood lights |

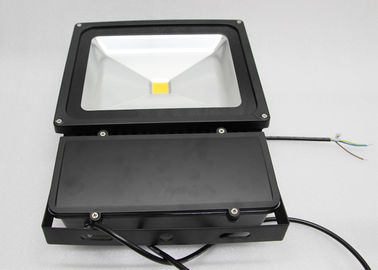

Outdoor LED Floodlight 80W with IP68 waterproof 8000lm,Casting Aluminum Housing
-------------------------------------PRODUCT Feature ---------------------------------------
1. Led chip: High lumen EPISTAR chip-on-board chips or BRIDGELUX delivery 130lm/w high lumens in high CRI for lighting performance and have 120o beam angle for lighting.
2. Lifespan: ZLONE’s led flood light has 50000 hours lifespan for using. You can using 8 years base on using 10 hours per day.
3. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.
4. Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. Also the quality of the lamp housing is same.
5. Glass Cover: High quality 4mm-5mm thickness heat-resistant temper glass will not splash when the flood light is exploded in wrong operation. It guarantees 100% light transmittance and uniform light distribution.

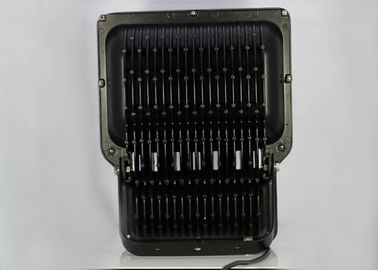

6. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.
7. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.
8. Adjustable bracket: It can adjust 0-180o beam angle in horizontal direction for different application purpose.
9. Warranty: ZLONE offers 3 years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.
PRODUCT ATTRIBUTE
Item No. |
ZL-FL360-80W |
Dimension |
360*285 |
Power |
80w |
Luminous flux |
7900-8000lm |
Lamp efficiency |
100lm/w |
Light source |
COB Bridgelux |
Light degradation rate |
25000h ≤ 30% |
Color rendering index |
Ra>75 |
PF |
PF≥0.93 |
Beam angle |
60 ° 120° |
Rated life |
50000h |
Color temperature |
2800-7000K |
Working temperature |
-20~+50°C |
Input Voltage |
AC90-260V |
IP code |
IP67 |
Brand |
ZLONE |
Warranty |
3 Years |
Certificate |
CE, ROHS, SAA, EMC, LVD |
Application |
Highway, courtyard, road, outdoor, etc. |
Available color |
Gray/customized |
Payment terms |
By T.T, Western Union, L/C, etc |
Pieces per carton |
2pcs/ctn |
SPEC of ZLONE led flood light:
1. Singl color & RGB led bulb. Can get fantastic color changing effects.
2. Easy plug technology,more reliable and easy maintenance.
3. IP65/IP68 protection.Waterproof and dustproof.
4. Energy saving, saving 50% than the traditional lights at the same brightness.
5. Inner high efficiency (95%) heat protection system, with the latest high efficiency constant,currency driver, making the products can work under unstable voltage.
6. Long life span, more than 50000 hours.
Customized your LED flood light:
1. Different led chip brand:Epistar/Bridgelux/CREE
2. Dimmable are available,compatible most dimmer,RF remote prepared
3. Isolated power supplier and non-isolated power could be chosen.
4. Regular lumen 90-100lm/w,Highest lumen 130lm/w or 120-140lm/w for chosen.
5. Different power supplier solution:lowest temperature upto -40 degree.it could be updated to Meanwell power supplier.
6. Long life span,20000/50000 hours,2-5 years warranty by your request.
Related products of LED Flood Light:
Size(mm) |
Power |
Lumen |
Efficiency |
CRI |
Beam |
Voltage |
IP Grade |
N.W |
Replacement |
115*85*85 |
10W |
800lm |
80 lm/w |
>75 |
120° |
85~265V |
IP65 |
700g |
30W HPS |
180*140*110 |
20W |
1600lm |
80 lm/w |
>75 |
120° |
85~265V |
IP65 |
1500g |
60W HPS |
225*185*125 |
30W |
2400lm |
80 lm/w |
>75 |
120° |
85~265V |
IP65 |
2580g |
100W HPS |
288*238*160 |
50W |
4000lm |
80 lm/w |
>75 |
120° |
85~265V |
IP65 |
4000g |
150W HPS |
360*285*130 |
70W |
5600lm |
80 lm/w |
>75 |
120° |
85~265V |
IP65 |
7000g |
200W HPS |
360*285*97 |
80W |
6400lm |
80 lm/w |
>75 |
120° |
85~265V |
IP65 |
7000g |
250W HPS |
425*328*190 |
100W |
8000lm |
80 lm/w |
>75 |
120° |
85~265V |
IP65 |
7500g |
300W HPS |
425*328*190 |
120W |
9600lm |
80 lm/w |
>75 |
120° |
85~265V |
IP65 |
8600g |
350W HPS |
425*328*190 |
150W |
12000lm |
80 lm/w |
>75 |
120° |
85~265V |
IP65 |
9000g |
500W HPS |
