| Lamp Power: | 10W | G.W: | 0.6 |
|---|---|---|---|
| Voltage: | AC100-240V | IP Rating: | IP20 |
| Dimmable: | Traic Dimming | Housing: | White And Black |
| High Light: | LED Track Lighting,Track led lights |
||

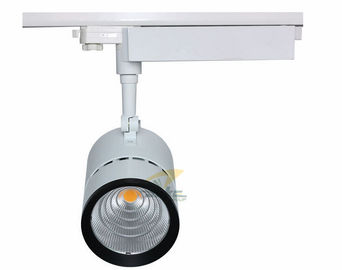

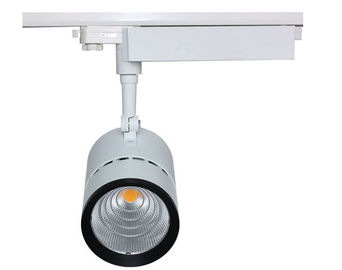

30 Degree Shop LED Track Lights 10W - 20W IP20 CREE COB , Indoor LED Spot Lighting Aluminum Housing
LED Track Light Specificaitons:
-Power factor: >0.90.
-Non-dimmable version voltage: AC100-240V.
-Dimmable version voltage : AC220-240V or AC100-120V.
-Housing material: aluminum.
-Housing color: black, silver.
-Working environment temperature: -20oc ~ +45℃
|
Model number |
Electrical parameters |
Optical parameters |
Physical parameter |
||||||
|
Input voltage(V) |
Power (w) |
LED Current (mA) |
Luminous flux (lm) (±5%) |
Beam angle(o) |
CCT (K) |
CRI |
Size (mm) |
Weight (kg) |
|
|
DK-TS-B03 |
AC100-240V |
10W |
300mA |
640 740 765 |
15°/ 30° |
3000K 4000K 5000K |
83 |
Ø49x115x153 |
0.6 |
|
DK-TS-B04 |
AC100-240V |
20W |
500mA |
1460 1580 1655 |
15°/ 30° |
3000K 4000K 5000K |
83 |
Ø75x130x185 |
0.8 |
Features:
♦ Color of housing,power and beam angle are optional or customised.
♦ Housing Body:die-custing aluminum,never fade,high temperature resistance
♦ Adapter: 3wires(2phase),4wires(3phsae)
♦ Adjustable Angle:horizontal 360°,vertical 90°
♦ Optical lens:toughened glass,high light transmittance,no stroboflash
♦ Radiator:refined aluminum heatsink,efficient heat dissipation
♦ COB Chip:high brightness, High CRI(>83),high luminum flux,long life span(>30000hrs),
professional soldering process
♦ Driver:constant current,no radiation, energy saving
Supermarkets, clothing stores, jewelry stores, museum, hotels, guesthouses, villas etc applications.
