| Application: | Shops, Indoor, Ceiling. | Base Type: | GU5.3, MR16, GU10, E27, E14 |
|---|---|---|---|
| Feature: | High Lumen, Heat Dissipation, Motion Sensor | Input Voltage: | 85V, 265V |
| Material: | Aluminium, Pmma, Fin Type | Rated Watts: | 5W, 4.5W, 5.5w, 6.5w |
| High Light: | cob led spotlight,Warm White LED Spotlight |
||

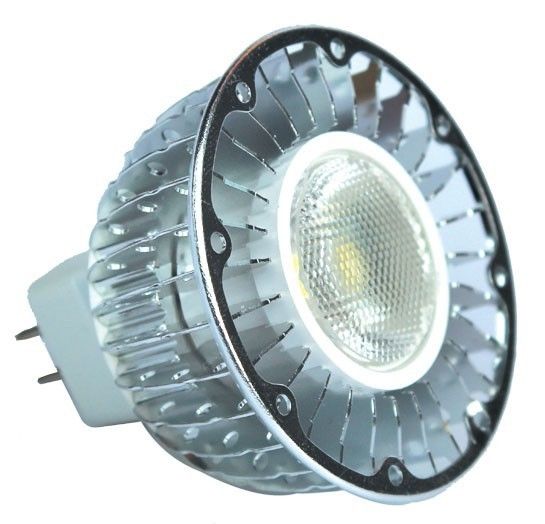

School 5000K 7w GU10 LED Spotlight MR16 50Hz / 60Hz , Reflector 25°
Quick Detail:
1: using fin type to do heat dissipation, raise lifespan
2: good light effect, high lumen
3: unique design

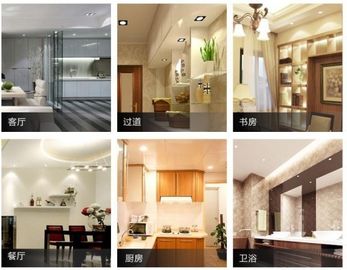

Application Place: shops, hotels, showrooms, arts, museums ,home, kitchen, corridor, hospital, school and others
Description:
AGMR16-L-7W-S6 model spotlight is our Self developed item, with fin type of heat dissipation
Specifications:
|
Description |
7W LED MR16 |
|||
|
Model Number |
SMMR16-L-7WW |
SMMR16-L-7NW |
SMMR16-L-7CW |
Units |
|
CCT(°K) |
3000K±10% |
4000K±10% |
5000K±10% |
|
|
Input Voltage |
AC/DC12V |
AC85-265V |
V |
|
|

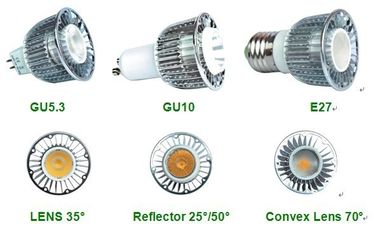

Base Type |
GU5.3 |
E27 /GU10 |
External Driver |
|
|
Input Frequency |
20~100KHZ 50~60 Hz |
Hz |
||
|
Power Factor |
>0.7 |
--- |
||
|
Light source |

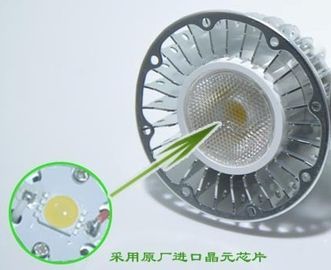

COB LED S6 1PCS |
|
||
|
Power Consumption |
7W±0.5W |
W |
||
|
LED Operating Voltage |
DC 10-11V |
V |
||
|
LED Operating Current |
580 mA±5% |
mA |
||
|
Emission Angle |

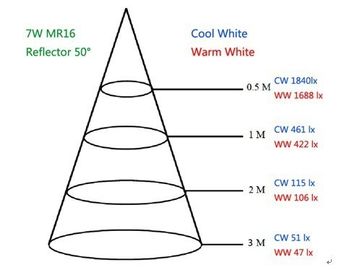

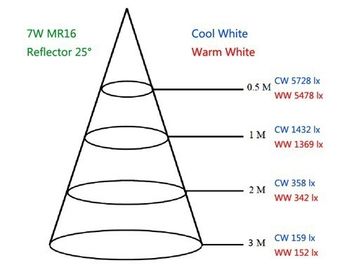

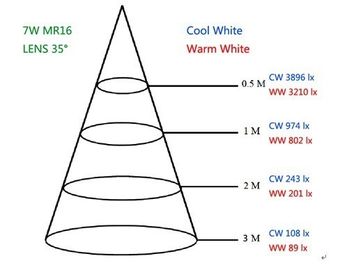

Lens:L35°/L70° Reflector:R25°/R50° |
Degree |
||
|
LED Luminous Flux (lm) |
3000K:450lm±20lm, 5000K: 550lm±50lm |
lm |
||
|
CRI |
RA70-80 |
% |
||
|
Operating Temperature |
﹣20℃ ~ 60℃ |
℃ |
||
|
Housing Temperature |
≦65℃ |
℃ |
||
|
Operating Humidity |
<85% Non condensed |
% |
||
|
MTBF(1) |
>30,000Hr |
Hr |
||
|

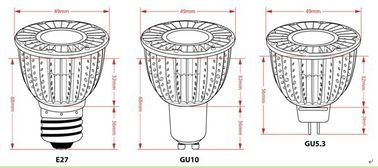

Dimension |
ψ49mm ×58mm(GU5.3),ψ49mm ×68mm(GU10) ψ49mm ×68mm(E27) |
Mm |
||
|
Box Size / Weight |
5.5*5.5*7.5mm/Box 50g /Pcs |
Mm/Kg |
||
|
Carton Size / Weight /Quantity |
58*30*36CM / 14kg / 250pcs |
Cm/Kg/Pcs |
||
|
Housing Color |
Silver /Golden/Black/… |
|
||
Competitive Advantage:
It’s our new developed item in last year, with CE, is popular at home and abroad
Packaging Details:
Inside package: 270*260*95mm 25PCS/box/1.7KG
Net weight: 0.03KG gross weight: 0.05KG
Outside package: 560*380*310mm 200/box/12.5KG
