| Power: | 60W | Vf: | 20-24v |
|---|---|---|---|
| If: | 2.4A | Chip: | Epileds Epistar Bridgelux |
| CCT: | 5600K | CRI: | 90Ra |
| High Light: | high power led module,high power leds |
||

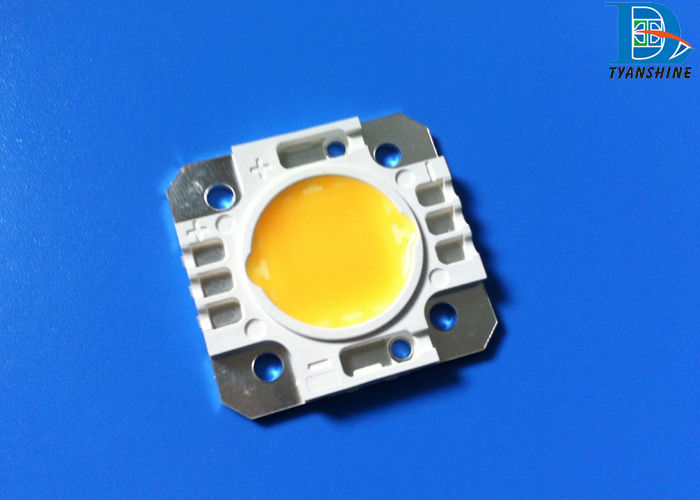

CINE Illumination High Power Led Chip 60W Daylight 5600 Kelvin 90Ra LED Arrays
Features:
1, Color Temperature with 3200K / 5600K, an ideal LED Light source to replace Tungsten
2, High performance of CRI (Color Render Index) to enhance the real colors of the items
3, Customized for special color, package or power
Parameters:
| Code | Color | V f (V) | I f (A) | CCT(K) | φv(lm) | Power | LES(mm) | CRI (Ra) |
| TX-S60C180-001H90 | Warm White | 20-24 | 2.4 | 3200±200K | 3200-3500 | 60 | Φ26 | ≥92 |
| TX-W60C180-001H90 | White | 20-24 | 2.4 | 5600±200K | 5200-5500 | 60 | ≥90 |
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Value (Max.) | Unit |
| LED Junction Temperature | Tj | 150 | ℃ |
| Power Dissipation | PD | 57600 | mW |
| Peak Forward Current | IFP | 3200 | mA |
| Continuous Forward Current | IF | 2400 | mA |
| Electrostatic Discharge Threshoid | ESD | 2000 | |
| Operating Temperature Range | Topr | -40 ~ +70 | ℃ |
| Storage Temperature Range | Tspr | -40 ~ +100 |
Characteristics at If=2400mA (Ta=25°C):
| Parameter | Symbol | Values | Unit | ||
| Min. | Typical | Max. | |||
| Luminous Flux | φv | 5200 | 5500 | - | lm |
| Viewing Angle at 50﹪IV | 2θ1/2 | - | 120 | - | Deg |
| Correlated Colour Temperature | CCT | 4000 | 6500 | 8000 | K |
| Forward Voltage | Vf | 20 | 22 | 24 | V |
| Thermal Resistance Junction to Case | RθJ-C | - | 0.5 | - | K/W |
| Temperature Coefficient of Forward Voltage | V△F/T | - | -2 | - | mV/℃ |
| Color rendering index Ra 90 | CRI | 90 | 92 | - | Ra |
LED Array Package Dimensions:
Applications of the High CRI White LED Arrays:
Photography Lighting,CINE Illumination for Ianiro,Cosmolight,Spotlight,LupoLux
General Lighitng
Commercial Illumination
