Product Details:
Payment & Shipping Terms:
|
Application: | LED Strip Light | Input: | 12V |
---|---|---|---|
Product Name: | IR Remote Controller | Key: | 44 |
Control Range:: | 5-10 Meters | Body Color: | White |
High Light: | LED Rope Light,Multi-color Rope Light |

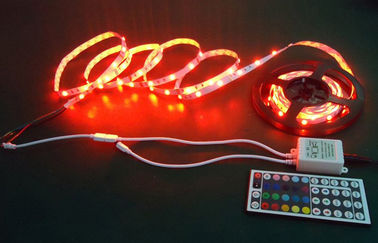

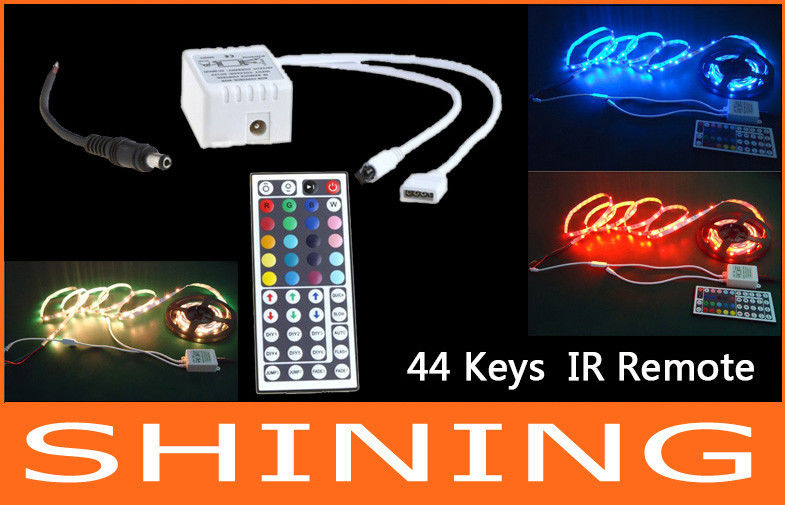

44 Keys 12V LED Strip Light IR Remote Controller 5m - 10m Control Range
Quick Detail:
44 Keys IR Remote Controller for RGB LED SMD strip lights, it is able to control led strip light's color and flash modes, including modes of Flash, strobe, Fade, Smooth.
1. Connecting Mode: Common Anode
2. Supply Voltage: DC 12V
3. Control Range: 5-10 meters
4. Body Color: White
Description:
Model number: SN-SP44K
Name: 44 Keys IR Remote Controller for RGB LED SMD strip lights
Specifications:
Input voltage: 12V DC
Max output current:2A/ each channel
Maximum output power: 72W
Control mode: IR
Dimming mode: PWM
Output: 12V DC, 3 * 2 A
Connect mode: Common Anode
Work temperature: -20~60 degree
Control distance: 8m/ 26.25ft
Item color: White
Shell material: Plastic
Item dimension: 5.7 * 3.5 * 2.2cm/ (including 20cm/ 7.87in and 22cm/ 8.66in cable)
Remote controller dimension: 12.5 * 5.5 * 0.7cm/ 4.92 * 2.17 * 0.28in
Item weight: 70g/ 2.46oz
Package dimension: 12.9 * 6 * 5cm/ 5.08 * 2.36 * 1.97in
Package weight: 92g/ 3.24oz

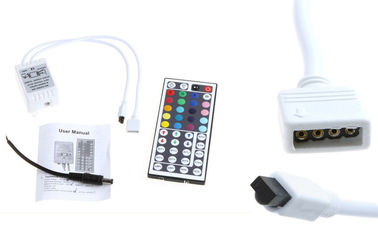

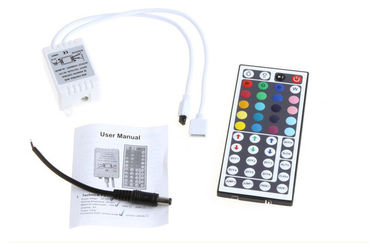

Package including:

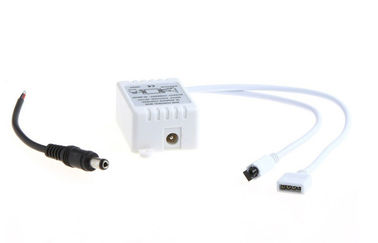

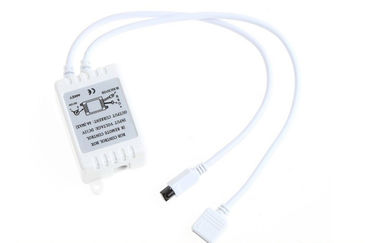

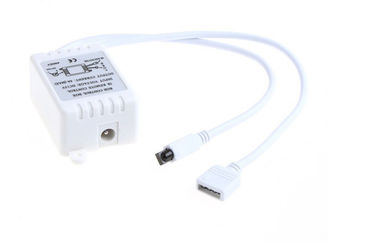

1 * IR controller (LED Strip Light not included)
1 * Remote

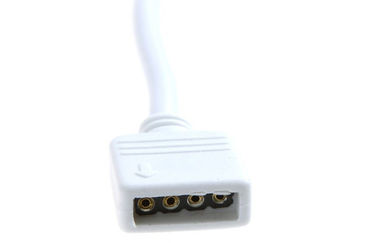

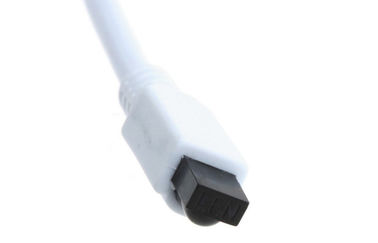

1 * DC cable
1 * User manual
Features:
6 color changing modes.
20 static colors.
Over thousands of mixed color from the choice of "Red + / -", "Green +/-" & "Blue +/-", can save to 6 different DIY keys.
Perfect for controlling LED lights, flexible light strips, wall washer lamps, and glass curtain wall lights, etc.
Could adjust brightness, static colors and various dynamic changes in lighting effects through infrared remote.
Could adjust random color by yourself freely.
Support 10 meters SMD 5050 30 LEDs/m LED strips or 5 meters SMD 5050 60 LEDs/m LED strips.
Easy to connect and simple to use.

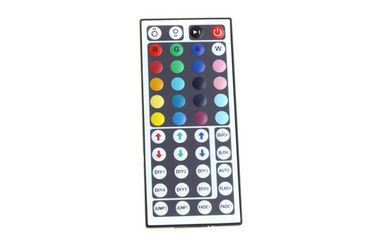

brightness+ |
brightness- |
Pause/Run |
On/Off |
Static red |
Static green |
Static blue |
Static white |
Static rose red |
Static light green |
Static sapphire blue |
Static Milky |
Static orange |
Static green blue |
Static violet and grey |
Static white pink |
Static light yellow |
Static sky blue |
Static brown and purple |
Static green white |
Static yellow |
Static cyan |
Static purple |
Static blue white |
Increase red |
Increase green |
Increase blue |
Speed up |
Decrease red |
Decrease green |
Decrease blue |
Speed down |
1 DIY KEY1 |
2 DIY KEY2 |
3 DIY KEY3 |
Automatic change |
4 DIY KEY4 |
5 DIY KEY5 |
6 DIY KEY6 |
Flash on and off |
3 Color jumpy change |
7 Color jumpy change |
3 Color fade change |
7 Color fade change |
Additional remarks:
When use DIY function, the first press a DIY key into custom color models, and then press the above six adjustment keys to add or subtract the red, green, blue button to adjust color, this time press any key except the DIY key and the six adjustment keys, can cancel the current regulation of color value, when once again press this custom button, the current color value will be stored. The next press this DIY key, will show a recent storage of the color value. There are six DIY key, that can be arbitrary set 6 kinds of color, between them is independent, will not influence each other.
Applications:

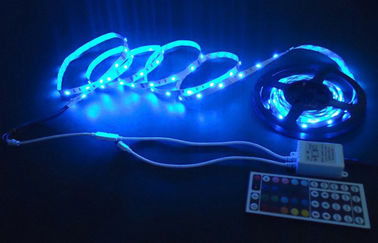

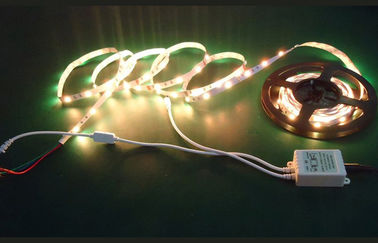

This RGB controller, with IR wireless remote, is used for controlling a variety of RGB LED Strip Lights. It can carry out hopping changing, gradual changing, strobe flash and other effects of change according to your actual needs.
Shipping and delivery time:
DHL |
3-5 days |
UPS |
3-5 days |
EMS |
About 7 days |
Fed Ex/TNT |
3-5 days |
HK Post Air Mail Register |
About 10 days |
Delivery time |
3-15 days |
Trade Terms:
1.Payment: T/T & Paypal & Western Union , 30% deposits before production, 70% balance to be paid before delievery
2.Production lead time for 1-10pcs : 1-3days , 10~50pcs: 3-7days, 500~1000pcs:7-15days
3.Sample is Available & can be delivered with in 3 days
4. By Express(EMS, DHL, UPS etc), By Air or By SeaShipping freight are quoted under your requests
5.Shipping port: Shenzhen or other Mainland China
6.Discounts are offered based on order quantities
7.MOQ:any pcs should be welcomed.
8.Logo : According to your requirement
FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 1-3 days, mass production time needs 5-7 days for order less than 1000 pcs.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 100 pcs; MOQ FOB is 1000pcs.
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Q: 5. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if mockup is ok, finally we will go to mass production.
Q: 6. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 7. Do you accept drop shipping?
A: Yes, it’s available.
At Last, we are ready & waiting for your inquiries and your order. Thanks indeed!
