Product Details:
Payment & Shipping Terms:
|
Qty: | 120leds/M | Voltage: | 12V |
---|---|---|---|
Waterproof: | NonwaterproofIP20 | Feature: | Home Deracotive |
Advantage: | Ww+CW In One Smd | Function: | Color Temperature Adjustable |
High Light: | Flexibele LED Strip Light,warm white led strip |
12V 120leds 3527 led strip color temperature adjustable led strip 3527 warranty 3 years
Two Chips in One LED CCT Adjustable Strips
We use the newest led as light source, the new led use special production techniques, which adopts single led with double chips White and warm white) as light source, it is completely solve the market defect of mixing color no uniform and poor. It is use 10mm PCB board, which will be more flexible and convenience when you install it. The strips used together with our special controller, which can realize CCT dimmable and brightness dimmable. PCB board is made of high quality high-temperature resistant materials. Luminous uniform and brilliant. 3-led cuttable, you can cut the length randomly. The back of the strip are use 3M tape. The ultra-thin design and low voltage, which convenient for customers to install and use. The double color CCT Dimmable led strip are widely use for Contour lighting, sign lighting, interior decoration, etc.
Specification:
Features:
Specifications :
Technical Data |
|
|
Model |
RM-F3527IP20-120P |
|
LED Qty |
120leds/m |
|
LED Type |
SMD3527 LED |
|
LED Color |
WW+CW |
|
Input Voltage |
DC12V (DC24V optional) |
|
Watt |
19.2W/meter |
|
Luminous Efficiency |
6-8lm per LED |
|
Color Temperature |
Warm white |
2800-3200K |
Natural white |
4000-4500K |
|
Cool white |
6000-6500K |
|
Light Efficiency |
>85% |
|
Beam Angle |
>120° |
|
Working Temperature |
-40°C ~ +55°C |
|
Storage Temperature |
-25°C ~ +65°C(25°Cbest) |
|
Life span |
50000hrs |
|
Certificate |
CE, RoHS, FCC |
|
IP Grade |
IP20 |
|
PCB Color |
Copper / White / Black |
|
Net Weight |
0.3kgs |
|
Dimension |
1000*10*0.2mm |
|
Package |
5m/roll in each Anti-static bag |
|
Installation way |
Fixed |

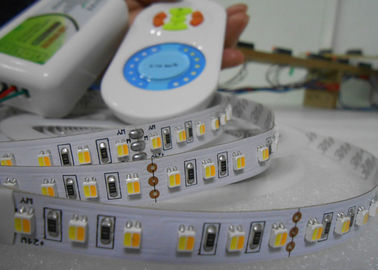

Products show:
