Product Details:
Payment & Shipping Terms:
|
| Voltage: | DC12V | Lumen: | 6-7lm/led |
|---|---|---|---|
| Certification: | CE&RoHS&FCC | Waterproof: | IP20 |
| LED QTY: | 60leds/m | Watts: | 4.8w/m |
| Size: | 1000*8*0.2mm ( With 3M Adhesive At Its Back) | Warranty: | 3 Years |
| High Light: | Flexibele LED Strip Light,warm white led strip |
||
Why us?
1. use high brightness Epistar LED chips with 3 groups gold wire and lifespan over 50,000 hours
2. Double copper circuit board with good flexibility and good conductive heat dissipation
What's our advantages?
1. Wide applicability, easy to install and maintain
2. Extremely luminous, with wide viewing angle
3. PC Base board, unique waterproof technique
4. Energy saving and environmental conservation, long lifespan
5. Operation low voltage (DC12V, DC24V) for human safety, various colors available.
LED Strip 3528 Yellow and White PCB board is available. DC female connector will be in the end, which is very convenient to connect with adapter male plug.
Applications:
Widely used in Architectural light for canopy, corridor, window, archway ,Backlight for edge lighting for signage ,DIY lights for home use ,Path and contour marking ,Decorative lights for holiday, event, show exhibition,Cover lighting and so on.
Specifications:
|
Tech Date |
|
|
|
Model |
RM-F3528IP20-60P |
|
|
LED Qty |
60leds/m |
|
|
LED Type |
3528smd |
|
|
LED Power |
4.8W/M |
|
|
LED Color |
WW/NW/CW, RGB, Red,Green,Blue,Yellow |
|
|
Input Voltage |
DC12V |
|
|
Ra |
>90 |
|
|
Power Efficiency |
>85% |
|
|
Luminous Efficiency |
6-7lm/led |
|
|
Color Temperature |
WW |
2700-3200K |
|
NW |
4000-4500K |
|
|
CW |
6000-6500K |
|
|
Lamp Efficiency |
>85% |
|
|
Beam Angle |
120° |
|
|
Working Temperature |
-40℃ ～ +55℃ |
|
|
Storage Temperature |
-25℃ ～ +65℃(25℃best) |
|
|
Life span |
>50000hrs |
|
|
Certification |
CE, RoHS, FCC |
|
|
IP Grade |
IP20 |
|
|
|
||
|
Net Weight |
0.2kgs |
|
|
Dimension |
1000*8*0.2mm ( with 3M adhesive at its back) |
|
|
package |
5m/roll in each Anti-static bag |
|

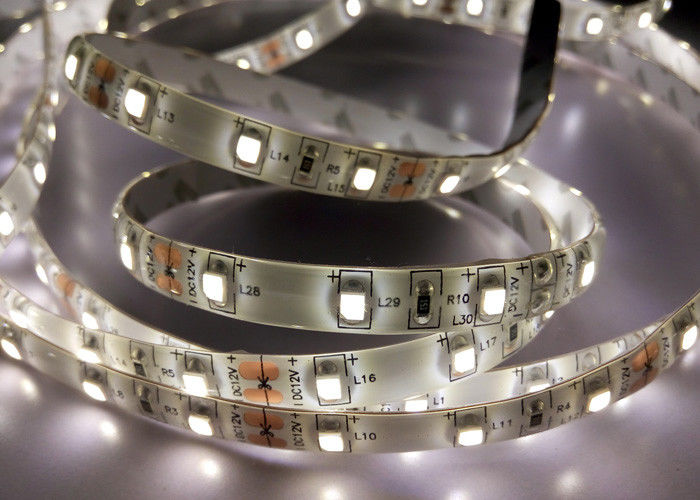

Picture:
