Product Details:
Payment & Shipping Terms:
|
LED Qty.: | 30leds/m | Voltage: | DC12V/24V |
---|---|---|---|
Certification: | CE, RoHS, FCC | LED Type: | SMD5630 |
Length: | 5M | Frequency: | 30leds |
Color Temperature: | Cool White | Power: | 14W |
High Light: | Flexibele LED Strip Light,warm white led strip |

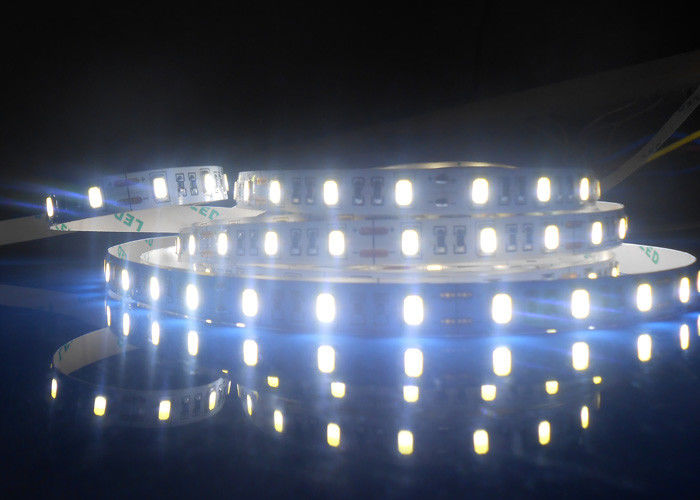

Cool white 30leds IP20 5630 SMD LED Strip Light For home deracotion
Features:
a. Connect with DC12V power supply
b. Adopt excellent flexible PCB material, high flexibility
c. Eco friendly, low power consumption
d. can be cut every 3 leds with mark
e. Rells packing and strong adhesive 3M tape
f. 50000 hours long lifespan with 3 years warranty.
Specifications:
Tech Date |
|
|
Model |
RM-F5630IP20-30P |
|
LED Qty |
30leds/m |
|
LED Type |
Sumsung |
|
LED Power |
14W/M |
|
LED Color |
NW |
|
Input Voltage |
12v / 24v dc |
|
Power Factor |
>98 |
|
Power Efficiency |
>85% |
|
Luminous Efficiency |
50LM-55LM/LED |
|
Color Temperature |
RED |
300-400mcd |
GREEN |
1000-1200mcd |
|
BLUE |
200-250mcd |
|
Lamp Efficiency |
>85% |
|
Beam Angle |
120° or 50° |
|
Working Temperature |
-40℃ ~ +55℃ |
|
Storage Temperature |
-25℃ ~ +65℃(25℃best) |
|
Life span |
>50000hrs |
|
Certification |
CE, RoHS, FCC |
|
IP Grade |
IP65/IP67/IP20/IP68 |
|
PCB Color |
White |
|
Net Weight |
0.3kgs |
|
Dimension |
1000*10*2.2mm ( with 3M adhesive at its back) |
|
package |
5m/roll in each Anti-static bag |
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting. Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things
4. We have very experienced R&D engineers and we have strong ability to do ODM projects
Product show:
