Product Details:
Payment & Shipping Terms:
|
| Name: | High Voltage Led Strip Light | Power: | 4.4W Per Meter |
|---|---|---|---|
| Light Source: | SMD3528 | Led Qty: | 60 Leds/M |
| Input Voltage: | AC 220V | Body Material: | PCB + PVC |
| High Light: | waterproof led strip lights,flexible led lighting strips |
||

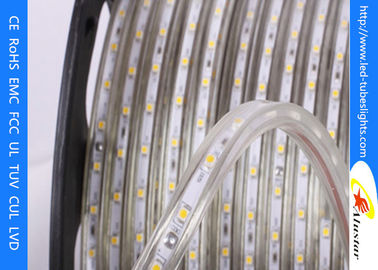

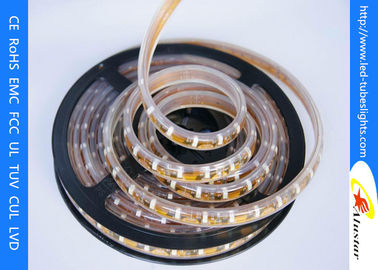

AC220V High Voltage Flexible LED Strip Light Waterproof 4.4W 3528smd For Outdoor Ornament
Quick Detail:
Specifications:
|
Type: |
AC220V High Voltage Flexible LED Strip Light Waterproof 4.4W 3528smd For Outdoor Ornament |
| Item No. : | ALS-SL21 |
|
Light Source: |
SMD3528 |
|
LED Qty: |
60 leds/M |
|
Power: |
4.4W |
| Luminous: | 420lm |
| Light Color: | WW / NW / CW |
| IP grade: | IP20 / IP44 / IP65 / IP68 |
| Lifespan: | 50000 hrs |
| Warranty: | 3 years |
| Certificate: | CE, RoHS |
|
Body Material: |
LED + White / Yellow PCB board |
|
Usage: |
home, car, store, stage, bar, KTV, hotel, bridge and so on. |
|
Market: |
Europe, America, Australia, Asia, all the world |
|
size: |
5m |
|
Packing: |
5m per reel, 40 reels per carton |
Product Description:
1. Can run in 220V or 110V without extra adaptor or power source.
2. Can be max run 100 meter and also be cut or connected in every meter.
3. PVC tube provides good waterproof and can be used both indoor & outdoor.
4.3528 & 5050 LED provide greater brightness compared to 3mm LED used in rope light.
5. Solid-state for high vibration resistance and good flexibility for any shape.
6. Independent LED, one LED broken will not affect next LEDs.
7. Long lifetime, over 50000 hours , 3 years warranty.
Applications:
Strip Connection:
Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)
1. Cut along the mark line, tear a little bit 3M tape from the mark. If 3M tape is not peeled off a little, it will be not easy to insert the strip into the connector.
2. Pull the black plastic lock out from the connector, insert strip.
3. Make sure the soldering pads fully touch the conjunction metal.
4. Push the plastic lock back towards the middle in the lock position.
5. Do not use too much strength while pulling the plastic lock, otherwise it can destroy the connector.
Attentions when operating:
1. Effective power for switch power is only 85% of power's label,so LED product's load power shoul be at least
more than 15% when user choose feeding power.
2. Make sure the right and stable anode and cathode when installing cables,and also attention to the driving
voltage in case to damage components and fire accident when circuit pass through voltage.
3. Forbidden to connect cables when power on,putting power in cool place,so that it ensures appropriate working
temperature.
4. Make sure strip's grade of waterproof.To install suitable conditions in accordance with practical IP.
5. This product is allowed to connect only 10PCS(0.5M/PCS)in seires wound. 2V differential voltage for the
beginning and the end.
6. This user manual is only applicable for our product.
7. If it is Crystal Glue,please don't crook 30 degree,otherwise, it easly happens glue cracking.
