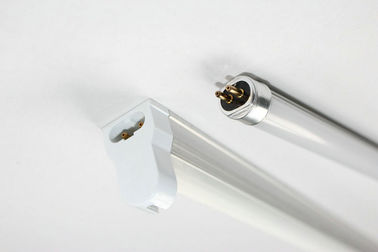

Environmental Friendly 1530 - 1710K 18W 4FT T5 LED Tube Light Fixture With Driver
18W 4FT T5 LED Tube Light Fixture, Epistar Everlight, 3 Years Warranty, AC85-265V, Fitting With driver or External Driver
18W 4FT T5 LED Tube Light Fixture Description:
This 18W 4 FT LED Tube Light Fixture can directly replace any T5 Fluorescent tube light.
The model comes with excellent aluminum housing and strong PC cover. Transparent, stripe and transparent cover are available. Fitting with internal driver and external diver are optional.
18W 4FT T5 LED Tube Light Fixture Features:
Special design of end-cap
Design of removable (rotatable is optional) end-cap provides easy replacement of driver by pressing the switch on the end caps easily. Different from other tubes which install the end-cap by glue, this new design enables customers to replace the defect parts in the tube easily.
Perfect design to avoid led failure in series
18W 4FT T5 LED Tube Light Fixture adopts a new technology to make all LEDs in the tube work independently. That is to say, if one led fails, no impact to other LEDs. However, most led tubes in the market designed with at least 7 LEDs in one series. If 1 led fails, all other 6leds or more will not work. Lumen of the whole tube will drop much, causing the whole tube too dark to be used.
Top quality PC cover
Clear, stripe and milky covers are available. For milky cover, no light spot on the cover can be seen, no dark area at the edge of the cover, giving higher beam angle and high optic uniformity. Light effect is very comfortable to human’s eyes, the same as traditional fluorescent light, rendering the actual color of objects. We realized 100% perfect replacement.
Great Lighting source
The LEDs are of high quality and bigger size and higher efficiency (7-8lm/pcs), which are supplied by Everlight, one of the most famous encapsulation plants for Epistar LED chips. It can resist higher anti-static and distribute more brightness. Failure rate is very small comparing with other lighting sources.
Low light attenuation
18W 4FT T5 LED Tube Light Fixture adopts new technology, less than 3% in 1000hrs, however, the traditional attenuation of white color at least 30%.
Super quality external driver
We have our own LED driver factory with the history over 10years. The driver we researched for our tube is double isolated and high PF≥93%, high power efficiency over 80%. Drivers are available as external or internal with Fitting, up to client’s requirements. High efficiency and high power factor can help user to save lots of cost of electricity.
More durable & robust
Over 50000 hours lifespan and 3 years warranty.
High safety performance
We have double isolation from our driver. For the most important part in the driver, electrolytic capacitor, we are always adopting Rubycon or Capxon, top ones in Japan and Taiwan. Not like many other plants in China, using low quality electrolytic capacitor, which will get dry easily, largely decrease the lifespan of drivers. There are fuses on tubes, which can protect the driver as well as the LEDs upon any shortcut occurs. Our tubes are CE, RoHS, SAA and Ctick approval.
Environmental Friendly
No UV or IR, lead free, no mercury or other toxic materials.
Tube package
High quality cylindrical package and pin protection avoids shipping damage.
18W 4FT T5 LED Tube Light Fixture Specification:
|
Rated Voltage |
AC85-140V/175-265V/ DC12/24V |
|
Power Factor |
>0.9 |
|
Power Efficiency |
>85% |
|
Withstand Voltage |
3000V one minute |
|
Power supply type |
Isolation Switching power or none-Isolation Switching power |
|
LED Chips |
Epistar(Everlight) |
|
LED Quantity |
276 pcs SMD3528 LEDs |
|
LED Power |
18W |
|
LED Efficiency |
80-100LM/W |
|
Light Efficiency |
>85% |
|
Uniformity |
>0.5 |
|
Led Initial Flux |
680-760LM |
|
Color Temp. |
1530-1710K |
|
Beam Angle |
Transparent diffuser 120° Stripe diffuser 150° Frosted diffuser 180° |
|
CRI |
CRI>78(cool white) CRI>68(warm white) |
|
Junction Temp. |
<70℃ |
|
Operation Temp. |
-40~+50℃ |
|
Storage Temp. |
-25~+65℃ |
|
Protection Grade |
IP42 |
|
Connector |
G5 |
|
Lamp Shell Color |
Silver |
|
Dimension |
Φ16 * 1200mm |
|
Net Weight |
550g |
|
Lifespan |
>50000H |
|
Warranty |
3 Years |
|
Certificate |
CE,RoHS,SAA,Ctick |
18W 4FT T5 LED Tube Light Fixture Packing Information:
Quantity of a standardizing box: 20 PCS
Weight of a standardizing box: 12.5kg
Size of standardizing box: 1290mm*210mm*215mm
Quantity of a 20'' container: 9300PCS
18W 4FT T5 LED Tube Light Fixture Applications:
1. Replace all kinds of conventional fluorescent lamp
2. Can be applied to residential, commercial and industrial buildings, such as supermarket, station, exhibition hall, library, closets, factory, subway, hotel, hospital restaurant, warehouse and etc.
18W 4FT T5 LED Tube Light Fixture Dimensions:
18W 4FT T5 LED Tube Light Fixture Caution:
1.Please do not look straight to the light
2.Please do not apply this product to electronic ballast
3.Please make sure it is installed by professional electricain with power off
4.Can not be applied to dimmer
18W 4FT T5 LED Tube Light Fixture User Guide
A. Lamp bracket of inductive ballast
B. Lamp bracket of electronic ballast
