Product Details:
Payment & Shipping Terms:
|
| LED Type: | SMD3014 | LED QTY: | 180 |
|---|---|---|---|
| Inout Voltage: | 100-277VAC | ||
| High Light: | fluorescent led tube,led tube lighting |
||

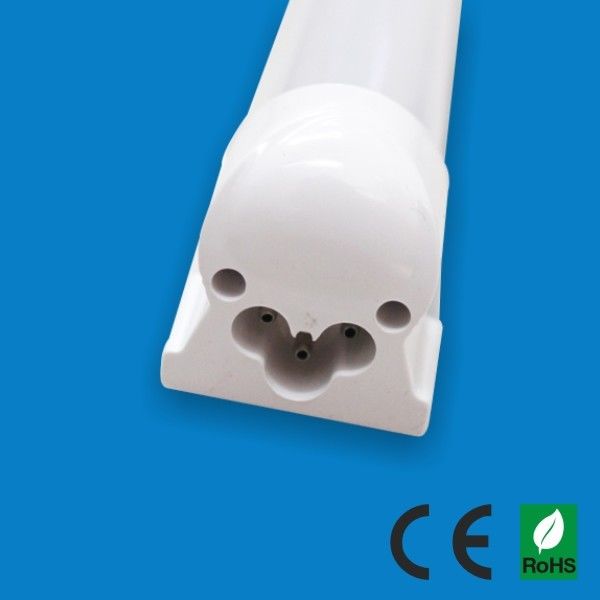

1200mm IP54 T5 LED Tube light SMD3014 with transparant / frosted cover
Quick Detail:
1. power: 18W
2. Size: D16*1200mm
3. LM: 1800
4. Color temp:2800-6500K
5. IP class:IP54
6. Life span: 50000H
7. Work Temp: -30-45℃
Description:
Size: D16*1200mm
LED quantity(pcs): 180
power- supply efficiency : 85%-87%
PF value: 0.97 above
LED angle: 120
color temp: 2800-6500K
cover type: transparant and frosted
lumen LM(per 6000k): 1800
life span: 50000H
work Temp: -30-45℃
Specification:
| Type | 1.2m(4 feet) |
| Size | D16*1200mm |
| Led type | Smd3014 |
| Led quantity | 180 |
| Voltage | 100-277 |
| PF | 0.97 |
| Power | 18W |
| Ra | 70-80 |
| Led brand | Epistar |
Our Package:
25pcs/carton
cartion Size: 690*25*25
volume weight:7.9KG
Gross weight:4.6KG
the install procedure as below:
1.Installation:
Above picture is the installation diagram of led tube light.
2,Warning Note
It’s normal that the device will delay starting 2 seconds due to carrier charging after the turning on
Applications:
This led tube has the widely use:
the most important use for the commercial lighting, just as the office, supermarket, parking, it will
supply us the same power but just use the one third of the traditional fluorescent tube, so it can help us
save the power.
Competitive advantages:
1. Al shell:
high quality aluminum Alloy ,safe and durable, sophisticated technology thermal conductivity is strong.
2. lamp base:
high quality PC material, good flam retardant performance, anti-aging do not change color, effectively
prevent oxidation of the electronic shock.
3. lamp shade:
Delicate and high quality PC lampshade, light transmittance as high as 98%, refraction light even high
degree of safety service life is long.
4. lamp bead:
led super bright light bead, avirulent environmental protection, high conversion rate, lamp bead uniform
distribution the heat better.
FAQ:
Q: Nearly all LED tube T5 are the same exterior,how to tell quality?
A: Price and exterior.
Though LED lighting products are with same or similar exterior,due to raw material cost difference is big,poor quality are all poor housing exterior with short FINs and light weight.So prices are also low.
Besides,the driver exterior is also low-end with poor IC,MOS and capacitances.
Q:Does LED tube T5 really have 50,000 hours lifespan?
A:50,000 or longer lifespan is only theroy from lab test.But due to working enviroments are different from in lab,actual lifespan is only <=30,000hours.
Especially for LED high bays and LED floods,the power is very huge,and lots of heat cause LEDs junction temperature very high.And light decay will be higher than low power LED products.
Our LED tubes are in the market over 7 years,and according to feedbacks from our clients,nearly no faluire in 4-5 years.
Q:What is CRI?
A:CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers write a high data to attract clients,please note.
Q:What is PF and efficiency?
A:PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher cost.
Q:Is there cheap shipping cost to import to our country?
A:For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q:Can we get support if we have our own market position?
A:Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
For any further information,please feel free to contact,we will send you PDF document to show full issues you care on LED business.
