Product Details:
Payment & Shipping Terms:
|
| Original: | Guangdong | Certification: | Ce.rohs |
|---|---|---|---|
| Power: | 18W | ||
| High Light: | led tube lighting,led light tubes |
||

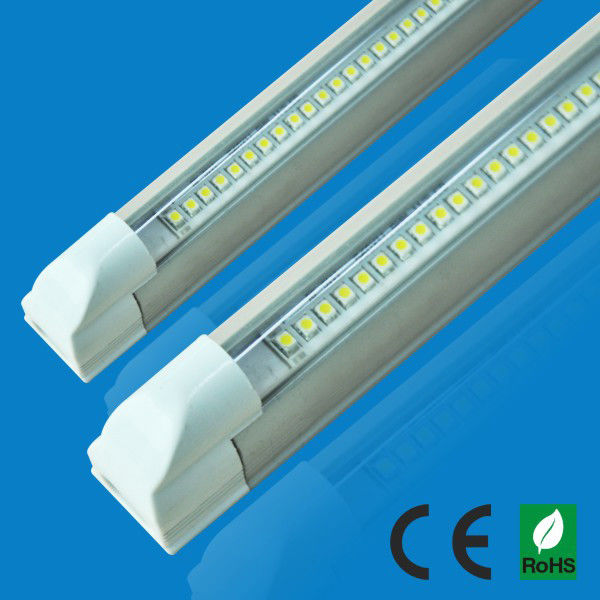

Bright 12W 900mm integrated T5 LED tube 1305LM SMD2835 for factoty
Quick Detail:
1. power: 12W
2. Size: D16*900mm
3. LM: 1305
4. Color temp:2800-6500K
5. IP class:IP54
Description:
Size: D16*900mm
LED quantity(pcs): 180
power- supply efficiency : 85%-87%
PF value: 0.97 above
LED angle: 120
color temp: 2800-6500K
cover type: transparant and frosted
lumen LM(per 6000k): 1305
life span: 50000H
work Temp: -30-45℃
Specification:
| Type | 0.9m(3 feet) |
| Size | D16*900mm |
| Led type | Smd3528 |
| Led quantity | 180 |
| Voltage | 85-277 |
| PF | 0.97 |
| Power | 12W |
| Ra | 70-80 |
| Led brand | Epistar |
Our Package:
25pcs/carton
cartion Size: 990*25*25
volume weight:11.5KG
Gross weight:6.5KG
Warning Note
It’s normal that the device will delay starting 2 seconds due to carrier charging after the turning on
Applications:
This led tube has the widely use:
the most important use for the commercial lighting, just as the office, supermarket, parking, it will supply us
the same power but just use the one third of the traditional fluorescent tube, so it can help us save the
power for the commercial environment,
Competitive advantages:
1. Al shell:
high quality aluminum Alloy ,safe and durable, sophisticated technology thermal conductivity is strong.
2. lamp base:
high quality PC material, good flam retardant performance, anti-aging do not change color, effectively
prevent oxidation of the electronic shock.
3. lamp shade:
Delicate and high quality PC lampshade, light transmittance as high as 98%, refraction light even high
degree of safety service life is long.
4. lamp bead:
led super bright light bead, avirulent environmental protection, high conversion rate, lamp bead uniform
distribution the heat better.
Certification:
FAQ:
Q: Nearly all LED tube T5 are the same exterior,how to tell quality?
A: Price and exterior.
Though LED lighting products are with same or similar exterior,due to raw material cost difference is big,poor quality are all poor housing exterior with short FINs and light weight.So prices are also low.
Besides,the driver exterior is also low-end with poor IC,MOS and capacitances.
Q:Does LED tube T5 really have 50,000 hours lifespan?
A:50,000 or longer lifespan is only theroy from lab test.But due to working enviroments are different from in lab,actual lifespan is only <=30,000hours.
Especially for LED high bays and LED floods,the power is very huge,and lots of heat cause LEDs junction temperature very high.And light decay will be higher than low power LED products.
Our LED tubes are in the market over 7 years,and according to feedbacks from our clients,nearly no faluire in 4-5 years.
Q:For same power,why different suppliers with different brightness?
A:Different chips,or same chip but different brightness version.The brightness will be different.But for same chip and same brightness version,the brightness will be slight difference.But please make clear the difference between LEDs and lamp fixture.
For example,18W LED tube light,LEDs brightness is 2200lm,true fixture brightness is only 1700-1900lm(even lower).but many suppliers type 2200lm in their data sheet,please note this.
Q:What is CRI?
A:CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers write a high data to attract clients,please note.
Q:What is PF and efficiency?
A:PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher cost.
