| High Light: | t5 led fluorescent tube,t5 led lamps |
||
|---|---|---|---|

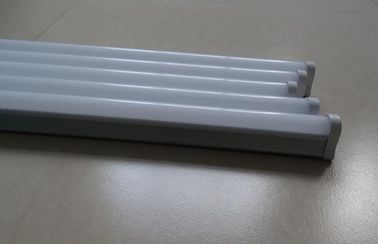

300mm 600mm 900mm 1200mm T5 LED Tube Light 5w 9w 12w 18w For Commercial Lighting
| Model | Power | Lumen | LED | Size | Weight | Packing (CTN) |
Box Size (mm) L x W x H |
Carton Size (mm) L x W x H |
| T5SL600-15W3 | 15W | 1500lm | 96pcs SMD2835 | 0.6M/2FT 549(L)x41(W)x36(H) |
430g | 20pcs | 655x49x40 | 710x260x180 |
| T5SL900-25W3 | 25W | 2500lm | 144pcs SMD2835 | 0.9M/3FT 853(L)x41(W)x36(H) |
688g | 20pcs | 960x49x40 | 1015x260x180 |
| T5SL1200-30W3 | 30W | 3000lm | 192pcs SMD2835 | 1.2M/4FT 1149(L)x41(W)x36(H) |
855g | 20pcs | 1255x49x40 | 1310x260x180 |
| T5SL1500-40W3 | 40W | 4000lm | 240pcs SMD2835 | 1.5M/5FT 1483(L)x41(W)x36(H) |
1022g | 16pcs | 1590x49x40 | 1645x210x180 |
| T5SL1800-44W3 | 44W | 4400lm | 288pcs SMD2835 | 1.8M/6FT 1782(L)x41(W)x36(H) |
1230g | 16pcs | 1890x49x40 | 1945x210x180 |
| T5SL2400-60W3 | 60W | 6000lm | 384pcs SMD2835 | 2.4M/8FT 2284(L)x41(W)x36(H) |
1519g | 12pcs | 2390x49x40 | 2445x160x180 |
| Note: | Power Factor: >0.93 | |||||||
| Power Efficiency: 88% | ||||||||
| Frequency: 50-60Hz | ||||||||
| Beam Angel: 120° | ||||||||
| Socket: lead in wire | ||||||||
| Lifespan: 50,000 hours | ||||||||
| Main Material: Aluminum Alloy & PC Optics | ||||||||
| Frosted, Clear, Milky, Transparent cover for selecting | ||||||||
| Directly install with 100, 120, 100~240, 120~277 Power | ||||||||
| Certification: Energry-Star,ETL,CE,RoHS,SAA,TUV,C-tick | ||||||||
| Colour Termperature: Warm White 2700-3000K Pure White 4000-4500k Cool White 6000-6500K | ||||||||
Advantages:
♠ We use the UL/ETL approved isolated drivers for our T5 tubes only. PF>0.95, THD<14%.
♠ 100% High-Pot test of AC3000v for all tubes.
♠ Comply for the latest new UL standards about led tubes for application.
♠ Specially meet Amercian,Canada, Europe Market with ETL UL SAA TUV CE RoHS Approval.
♠ Directly install with 100V 120V 220V 230V 240V 277V Power.
♠ With Europe Cable Plugs, America Cable Plugs, Australia Cable Plugs etc.
♠ China Patent No: 201120066365.6, 201130043458.2, had applied PCT patent.
♠ Internal Driver , Isolated Driver, Ensure Safety T5 double driver inside.
1). Features
1. Energy saving: low power consumption, low heat, high level of brightness, uniform light-emitting and energy-saving about 50%
2. Long lifespan: normal lifespan of LED tubes is above or equal to 50.000H
3. No twinkling: rapid start, steady work, no noise, no twinkling can effectively protect the eyes and conforming to CE
4. Green and environmentally-friendly: LED tube has no ultraviolet or infrared radiation, containing no mercury, lead and heavy metal
5. Special circuit design: ensuring that each LED to work independently,
the damage of single LED has no influence on the whole, conforming to RoHS Directive-compliant
2).Applications
1. Mainly used in indoor lighting and can be widely used in star hotel, shopping mall, conference room, office and opt thermal control relatively strong laboratory
2. To light requirements higher lighting places
4).Product Detail
