Product Details:
Payment & Shipping Terms:
|
| Size: | 1500mm/5ft | LED Chip: | SMD2835 |
|---|---|---|---|
| CRI: | 80 | Wattage: | 22w |
| Lumen: | 2000lm | Material: | Aluminum |
| Warranty: | 3 Year | ||
| High Light: | led tube lights for home,white tube light |
||

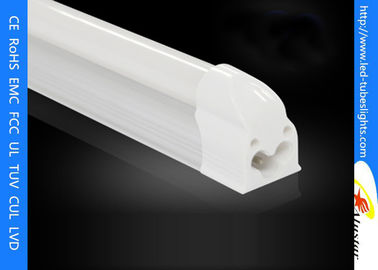

22 Watt LED T5 Tube 150cm 160 Degree Beam Angle With Chip SMD 2835 3 Year Warranty
Specifications:
|
Item Type |
LED Tube Light |
Size |
1500mm/5FT |
|
Item No. |
ALS-TL01/T5-9 |
Power Factor |
>0.98 |
|
Warranty(years) |
3 years |
CRI |
≥80 |
|
Power |
22W |
Light Efficiency |
90m/W |
|
LED Chip |
SMD 2835 |
Certificate |
CE,RoHS |
Model Number: ALS-TL01/T5-8 Power: 22W Size: D16*1480MM Input Voltage: AC100-240V Material: Alloy Aluminum housing & PC Color Temperature: 4000K-4500K
Application:
Can be used in office, conference room, lecture hall, reception room, supermarket, shops, exhibition hall, restaurant, hotel.
Can also be used in bublic places such as library, school, tunnel, metro, bus, train, bus station, railway station, airport etc.
Living room, bedroom, kitchen, washroom; school, university, hospital, hotel;
Conference room, meeting room, show room, showcase;
Commercial complexes; Factory, plant, warehouse, office.
Product Description:
⇔. Own complete production lines to ensure the best quality and cost control.Aluminum housing: Better heat dissipation&longer lifetime for the LED’s.
⇔. No flicking or dazzing during operating.
⇔. Patent design for structure,rotatable end cap and isolated power supply.
⇔. Lower constant current to drive the LED to insure the lifespan and light decay.
⇔. 3 years warranty.
⇔. Using imported good quality aluminum material for better heat dissipation and maintaining long life span.
Note:We can the CCT and Ra according to customer's demand.
Product Parameter:
|
Model NO. |
ALS-TL01/T5-9 |
|
|
Optical Parameters |
Light Source |
SMD LED3528 |
|
Luminous Flux(lm) |
2000Lm |
|
|
CCT(K) |
4000-4500 |
|
|
CRI(Ra) |
80 |
|
|
Beam Angle |
120°-160° |
|
|
Light Attenuation ratio (%) |
Less than 10% in 3 years |
|
|
LED Quantity |
324 |
|
|
Electrical Parameters |
Input Voltage(V) |
AC100-240V |
|
Frequency(Hz) |
50/60HZ |
|
|
Output Voltage(V) |
DC36-42V |
|
|
Total Power(W) |
22 |
|
|
Power Factor |
>0.9 |
|
|
Lifespan (Hrs) |
>50,000 |
|
|
Dielectric Voltage Withstand Test |
3750Vac/60s |
|
|
Structural Parameters |
Material |
Aluminum housing &PC cover |
|
Size(mm) |
Φ16×1480 |
|
|
Length(mm) |
1480 |
|
|
Net Weight(g) |
465 |
|
|
Integrated Parameters |
Operating Temperature |
-10°-40° |
|
Storage Humidity |
-40°-85° |
|
|
Safety Requirement |
/ |
|
|
Environmental Directives |
RoHS |
|
We Provide You With
> the best pricing
> the finest products
> the most complete warranties
The benefits of our products:
|
⇔. Accept OEM&ODM.
⇔. Instant start without flicker led tube light.
⇔. Wide voltage design (AC100-277V) universal applied in all countries. |
T5 LED Installation :
1. cut off the power supply before installation;
2. Install lamp stand and T5 lamp holder first with the same length;
3. Lamp working voltage is AC100-240V.
4. Connect the two wire terminals located at the side of the lamp to the electricity L and N respectively;
5. Do not supply the power to both pins on the same end simultaneously
FAQ(Questioned by our customers):
Mark(From US.):Main Product?
We are one of the biggest LED lighting manufacturer in China focus on T5/T8/T10
led tube light, IP65 Tri‐proof LED Light, LED Panels etc.
Jane(From Australian):What certifications do we have?
Available certificates: UL/TUV/PSE/REACH/CE/ROHS, VDE is supposed to be got in Mar. 20th, 2013.
DLC for American market,SAA for Australian market.
Helen(From German):What is the delivery time?
3‐5 working days for sample order <50pcs.
10‐12 working days for bulk order <1000pcs.
12~15 working days for bulk order 1000~3000pcs
15‐18 working days for bulk order 3000‐5000pcs.
18‐25 working days for bulk order 5000‐10000pcs.
Sam(From Brazil):What is your MOQ?
Led Tubes – 10pcs
IP65 Tri‐proof LED Lights-6pcs,
LED Panel Lights – 5pcs
Louis(From France):What is the light efficacy of your products?
LED Tubes: 100‐110LM/W
IP65 PC LED Tri‐proof Light: 80~90 LM/W
IP65 AL LED Tri‐proof Light: 90~110 LM/W
