Product Details:
Payment & Shipping Terms:
|
| Item Type: | LED Tube Light | Size: | 600mm(2ft) |
|---|---|---|---|
| Power: | 9w | Light Efficiency: | 100 |
| CRI: | ≥80 | LED Chip: | SMD 2835 |
| Input Voltage: | AC100-240V | POWER FACTOR: | >0.95 |
| Material: | PC+Aluminium | Color Temperature: | 3000K/4000K/6000K |
| Leds: | 72pcs | Beam Angle: | 120°-160° |
| High Light: | led light tube,energy saving tube light |
||
Isolated Driver LED Tube Au 9w LED T8 Tube Light SAA C-Tick Classified110lm/w PF 0.95
a. Energy saving,low power consumption, low heat, high level of brightness, uniform light-emitting, energy-saving about 80%.
b. Long lifespan: the normal lifespan of LED tubes is above or equal to 50.000H.
c. Using LED SMD2835 as the light source, which can ensure the brightness and long lifetime, also can reduce the light decay.
|
Item No. |
ALS-TU/ T8A30 |
||||
|
LED Tube |
T8 tube |
||||
|
LED Chip |
SMD2835 |
||||
| Cover | Frosted Oval | ||||
|
Power |
9W |
||||
|
Length |
600mm/2ft |
||||
|
Light output |
900-1100lm |
||||
| Leds | 72 | ||||
|
Body Material |
PC+aluminium |
||||
|
CRI |
≥80 |
||||
|
Color Tem |
3000K/4000K/5000K |
||||
|
Power Supply |
AC 100-240V |
||||
|
Working |
50/60Hz |
||||
|
Power Factor |
>0.98 |
||||
|
Working Temp. |
-20~35℃ |
||||
|
Working Lifetime |
50,000 hours |
||||
|
Certificate |
CE,RoHS,SAA,C-Tick |
||||
Marks:We can do the customer's demand,such as the color temperture ,power or luminous efficiency. Just tell us what you want!
Feature:

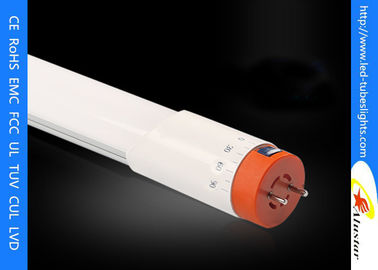

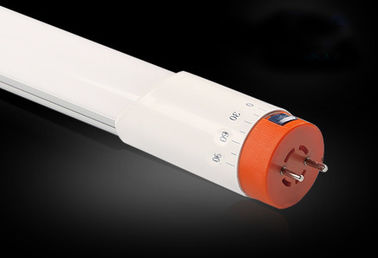

♦ LED Tube T8 2ft 9W Light Tube with SAA C-Tick featured by orange end caps.
♦ Single LEDs of 25-27 lumen with higher brightness.
♦ Adopting isolated power supply placed at the double ends of LED tube lights
♦ Frosted lens PC cover of 0.85-0.88 light emitting rate.
♦ Anodic techniques to protect alloyed aluminum housing surface from scratch
Application:
|
Replacemetn for conventional fluorescent tubes:
♦. Hotels |
The related products parameter:
|
Item No. |
ALS-TL01/T8A30 |
ALS-TL02/T8A30 |
ALS-TL03/T8A30 |
ALS-TL04/T8A30 |
|
LED Tube |
T8 tube |
T8 tube |
T8 tube |
T8 tube |
|
LED Chip |
SMD2835/SMD5630 |
SMD2835/SMD5630 |
SMD2835/SMD5630 |
SMD2835/SMD5630 |
|
Power |
14W |
19W |
22W |
24W |
|
Length |
900mm/3FT |
1200mm/4FT |
1200mm/4FT |
1500mm4FT |
|
Light output |
1400-1700lm |
1900-2200lm |
2200-2600lm |
2400-2900lm |
|
Body Material |
PC tube+aluminium |
PC tube+aluminium |
PC tube+aluminium |
PC tube+aluminium |
|
CRI |
≥80 |
≥80 |
≥80 |
≥80 |
|
Color Temp. |
3000K/4000K/5000K |
3000K/4000K/5000K |
3000K/4000K/5000K |
3000K/4000K/5000K |
|
Power Supply |
AC 100-277V |
AC 100-277V |
AC 100-277V |
AC 100-277V |
|
Working |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Power Factor |
>0.95 |
>0.95 |
>0.95 |
>0.95 |
| Driver | isolated | isolated | isolated | isolated |
|
Beam Angle |
160° |
160° |
160° |
160° |
|
Working Temp. |
-20~35℃ |
-20~35℃ |
-20~35℃ |
-20~35℃ |
|
Working Lifetime |
50,000 hours |
50,000 hours |
50,000 hours |
50,000 hours |
|
Certificate |
CE,RoHS,SAA |
CE,RoHS,SAA |
CE,RoHS,SAA |
CE,RoHS,SAA |
The product details:
The details:
