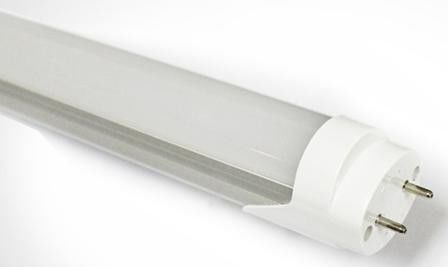

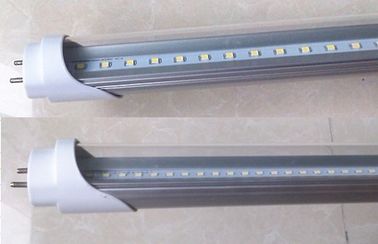

High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum

High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum
High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum

Large Image :  High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum

Product Details:
Place of Origin: Shenzheng,china
Brand Name: angelic lighting
Certification: CE, RoHs
Model Number: AGT8—600—9W
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: See following details
Delivery Time: Samples: 3days Mass order: 15-20days
Payment Terms: T/T, L/C
Supply Ability: 150000pcs per month
Detailed Product Description
Application: Hotels|Factories|Offices|Schools|Colleges Feature: 2 Foot|high Efficiency|high Brightness|easy Installation|heat Protection
Input Power: 9W Length: 1200mm|600mm|1212mm
Light Color: Warm White|cold White Material: AL6063|PC|Aluminum
Color Temperature: 3500±500K LED TYPE: SMD 3528
LED Luminous Efficiency: ≥120lm/W Defend Grade: IP20
High Light:

led tube lighting

,

led t8 tube

High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum





Quick details:



T8 tube 60cm length

Input power: 9W±15%

Input Voltage: 100~240VAC  50/60HZ

Light color: Warm white / cold white

Color Temperature: 3500±500K

CIR(Ra): ≥70

Lifespan: >30000 Hours

Material:AL6063+PC+Aluminum



1. Use PC cover for the whole lamp with light efficiency.

2. Stable performance; Uniform luminous, reasonable light distribution, good glare control.

3. Internal power driver in the lamp, light weight and beautifull appearance, easy installation and

maintenance.





Application



Hotels , Hospitals, Commercial Complexes

Conference / Meeting rooms

Factories & Offices

Residential / Institution Buildings, Schools, Colleges & Universities

Places where need energy saving and high color rendering index lighting



 Outline dimension drawing





High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum 0



Specification



 (Item 1) Power driver

 Parameter range

LED Driver

Internal power driver with 2 input wires

Input Voltage

100~240VAC  50/60HZ

Output Voltage

54~62VDC

Operating Current

140±5mA

Input power

9W±15%

(PF)Power Factor

≥0.9

(EFF)Power efficiency

≥88%

(Item 2) LED tube

Parameter range

LED tube

T8 tube 60cm length

Power

9W

LED

SMD 3528

LED quantity

126sleds in one line  18series,7 Parallels

Light color

Warm white / cold white

Color Temperature

3500±500K

Lamp Flux

630lm±10%

LED Luminous Efficiency (include power)

≥120lm/W

Lamp Luminous Efficiency



CIR(Ra)

≥70

Lifespan

>30000 Hours

Light failure

After 25000 hours , light failure ≤20%

Irritation Angle

120°±10°

Material

AL6063 PC cover,Light transmittance 90%

Cap-base

G13

Net Weight

0.19Kg±5%

Packing Dimension

Φ26 * 604 mm

Operating Temperature

-30℃ ~ 55 ℃

Relative Humidity

≤90% RH

Storage condition

-40℃~80℃

Defend Grade

IP20   CLASS1



Competitive Advantage:

1. Cheap price

2. Use PC cover for the whole lamp with light efficiency.

3. Stable performance; Uniform luminous, reasonable light distribution, good glare control.

4. Internal power driver in the lamp, light weight and beautifull appearance, easy installation and

 maintenance



Packing detail

Items with different length

 QTY/Carton

Carton Measure

GW / Carton

D26*L600mm

25

650*180*180mm

7.0-7.5Kgs

D26*L900mm

25

970*180*180mm

10.0-10.5.0kgs

D26*L1200mm

25

1260*180*180mm

12.5-13.0Kgs

D26*L1500mm

25

1560*180*180mm

17.5-18.0Kgs



Packing ways



High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum 1





High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum 2

Installation:

Caution: Cut off  the current first and follow the steps.

High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum 3



 Easy installation:

High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum 4



 Energy saving installation:

High Brightness 9 Watt Indoor T8 Led Tube Light Ra80 3800k , Aluminum 5

Note:

² Don’t take the tube apart

² Recommend indoor use

² The tube must work under the right voltage according

to the specification.

² Can be placed in conventional T8 or T10 fluorescent brackets

        (remove starter before replacement !)
