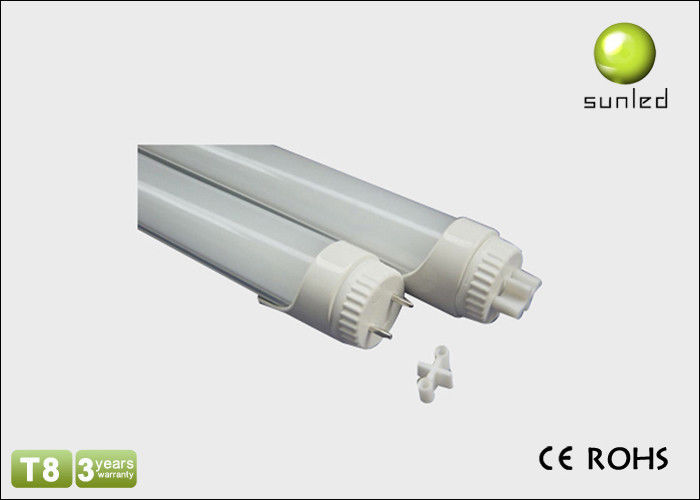

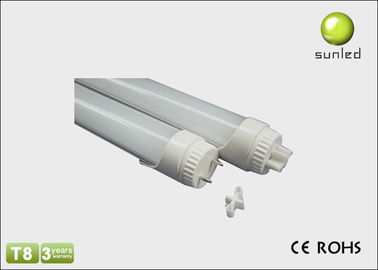

T8 Energy Saving Led Tubes

T8 Energy Saving Led Tubes

Quick Detail:

1. 150CM  T8 led tube
2. Watt : 22W
3. Dimension: 1500*26mm
4. Qty of led: 360pcs  SMD3528
5. Input  voltage: AC 85-265V

Specifications:

1. 150CM  T8 led tube
2. Watt : 22W
3. Dimension: 1500*26mm
4. Qty of led: 360pcs  SMD3528
5. Input  voltage: AC 85-265V
6. Luminou Flux:1900-2100LM
7. LED View Angle: 120degree
8. Material: AL+PC
9. Package: check drawing

Applications:

Replacement for conventional fluorescent tubes :
1. Hotels
2. Conference / Meeting rooms
3. Factories & Offices
4. Commercial Complexes
5. Residential / Institution Buildings
6. Schools,  Colleges & Universities

Competitive Advantage:

• Low lighting decay
• Over 60 percent energy saving
• Quiet without noise and flicker
• Adopt  good quality smd 3528 and 3014
• Low power consumption
• 3 years warranty
• No fluorescent flicker
• No RF interference,  no buzzing noise.
• Installation convenience

Attentions:
Have to use under the requirements of the manual.
1.Don’t look directly at the powerful light source for a long time.
2.Operation like installing and repairing should be done by professional staff. Prevent electric shock.
3.The height of the stack shouldn’t beyond 2m.
4.To prevent drench and strong mechanical vibration during the transportational process.

Installation:
Figure 1, Tubular fluorescent lamp shape picture

Figure 2, remove the tubular fluorescent lamp and starter

Figure 3, open the cover of the bracket,  change the method of connecting wires(right)

Figure 4, After setting up the bracket cover, install LED tube.

Operation complete Caution:

1. We advise customers to use the products with these requirements.
2. If the customers use the LED tube directly without removing the starter and ballast,
3. consequences may be caused as following: power consumption will add 2W more, shorten LED lifespan under normal usage, the ballast may be  hot, broken and so on.
4. The customers will be responsible for the damages which caused by improper usage as required.
