Product Details:
Payment & Shipping Terms:
|
| Light Source: | SMD2835 | Voltage: | AC85-265V |
|---|---|---|---|
| LED Driver: | CE Approved Driver | Installation Way: | Surface Mounted |
| Lamp Power: | 36W/45W | CCT: | 2700-6000K |
| High Light: | led flat panel lighting,Flat Panel LED Lights |
||

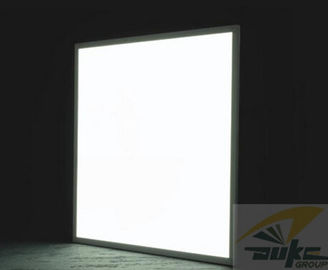

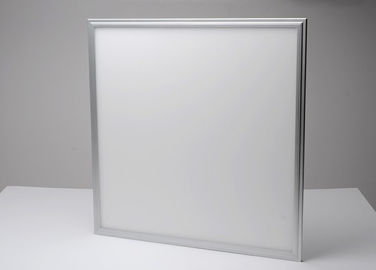

3600lm 45W Ultra Slim IP44 LED Flat Panel Lighting 600x600 For Shcool / Hospital
DK-FPN-6262-45W Technical Datasheet:
|
LED Type |
216 LEDs (SMD2835) |
|
Power Consumption |
45 W |
|
Color Temperature |
2700-6000K |
|
Luminous Flux |
3000-4000lm |
|
Color |
warm white / neutral white /cool white |
|
Dimension |
620x620x12mm |
|
Beam Angle |
120degree |
|
CRI |
>75 (Typically 75.6-76.8) |
|
Power Factor |
>0.95 |
|
Input Voltage |
AC 85v~270v |
|
Frequency Range |
50~60Hz |
|
Material of Body |
aluminum alloy frame and PMMA cover |
|
IP rating |
IP44 |
|
Operating Temperature |
-20~65 degrees Celsius |
|
Net Weight |
4.6KG |
|
Dimmable Feature |
Optional |
|
Life Span |
50,000hours |
|
Warranty |
5years |
Altair Series anti-glare led panel with high light efficiency also can completely avoid the problem of discomfort glare.
620x620mm panel size available 36W and 45W, for example, 36W general use to replacing 3x18W grille lamp.
External high PF constant current LED driver, instant start; 4mm PMMA diffuser and high transmittance LGP create more soft and comfortable brightness atmosphere.
Altair series led panels are available in several varieties, non-dimmable and dimmable with 1-10Vdc, PWM and DALI dimming system, also RGB and single colors.
Application:
1.Restaurant / Hotel / Supermarket
2.Showroom / Meeting rooms
3.Factories & Offices
4.Commercial complexes / exhibition hall
5.School, Colleges & Universities
6.Hospital / Classrooms / Underground Park
7.Places where need energy saving and high color rendering index lighting
Installaton Instructions:
Factory Producing Photos:
