Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4W LED Flat Panel Lighting | Power Factor: | >0.55 |
|---|---|---|---|
| Power: | 4W | Material: | AL+4T PMMA LGP+1.5mm Diffuser |
| Luminous Flux: | 310lm | Application: | Indoor |
| LED: | Epistar SMD 2835 | Feature: | Ultra Slim , Long Lifespan |
| High Light: | led ceiling panel lights,ultraslim led panel |
||

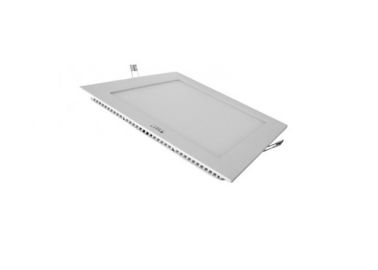

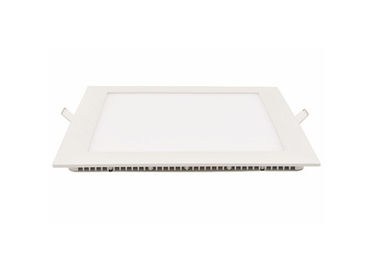

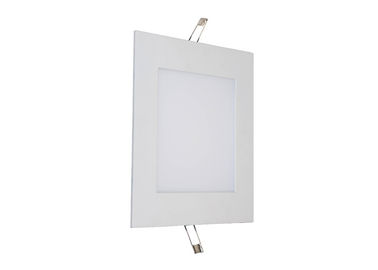

SMD 2835 Light Source 4W Super Thin LED Flat Panel Lighting Recessed For Mall
Specifications:
|
Model Number |
ISL-PLR-4WAL |
Power Factor |
>0.55 |
|
Power |
4W |
Beam Angle |
120° |
|
Luminous Flux |
310lm |
IP Rating |
IP44 |
|
Input Voltage |
AC 85-265V |
Lifespan |
50000H |
|
LED |
Epistar SMD 2835 |
Warranty |
3 years |
|
Driver |
Isolated constant current driver |
Certification |
CE/ RoHS/ SAA/ TUV/ SGS |
|
CRI |
>75 |
Size |
105*105*H12 MM |
|
CCT |
2700K-6500K |
Packing |
40PCS/CTN 400*370*235MM GW 8.5KG/CTN NW 8KG/CTN |
Features:
1. Ishinelux ultra thin panel light makes it easy to install and mount, featuring integral spring fixture retention clamps. The compact structure of the light makes it vibration-resistant and durable, thus free customers from after-sales maintenance.
2. Beautiful and clean appearance,easy installation; High light and high luminous efficiency SMD2835 LED as light source; Fully dimmable--Being able to fully dim LEDs makes for greater energy savings and extended lifetime.
3. High quality light guide plate and diffusion plate,ensure the light uniform and soft; Superior die casting aluminum makes good heat dissipation,no heavy metals and harmful gas, environmental friendly.

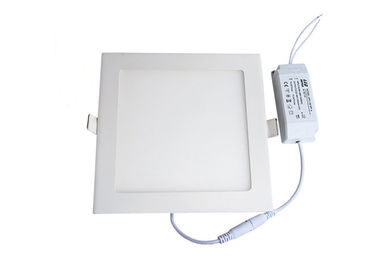

4. Adopting outside power supply with wide input voltage,no flicker,no glare,no radiation; Low power consumption,can save energy more 80% than traditional fluorescent lights; Reliable quality ensures long lifespan, up to 50,000 hours.
5. Applications: It is widely used in hotels, offices, conference rooms, restaurants, supermarkets, factories, hallway & lobbies and the other architectures or buildings .
Product Details:
Application:
Why Us:
1. High quality:
As a company in LED field for over 9 years with certificates like ISO9001:2008, ISO14001, CE, RoHS, SAA, TUV, SGS, etc., ISHINELUX implements the strict procedures in daily production. We only select the best quality raw material for our product such as CREE, BRIDGELUX, EPISTAR LED chips, MEANWELL driver, RUBYCON capacitor, etc. We use the newest heat dissipation technology such as active cooling, cooling fan, and fins heat sink to ensure stability and durability of the products. ISHINELUX always implement its production strictly abide by the strict quality control system. And every product has to go through 24 hours aging test before shipment to ensure high stability.
2. Most Competitive Price:
We believe future development is based on any possible cooperation today, no matter how big the order is. Therefore, we control the profit at a very limited level. We believe the future development lies in the current cooperation. Our target is to produce high quality goods with very limited profit margin for the mutual benefits of both of us.
3. Fast delivery:
Lead time only 3-5 working days for sample order after payment confirmed, 15-20 working days for bulk orders.
4. 100% Satisfaction Service:
Any question regarding products raised by customers will be replied within 24 hours. For any after-sales complaint, ISHINELUX absolutely shoulders the responsibility to solve it based on customer-oriented solution; this is why our business is skyrocketing.
5. Continuous R&D Investment:
To keep advantages in LED manufacturing, ISHINELUX continuously invests10 to15% of its profit on R&D of core technologies like heat dissipation, driver, optics, etc. And all the 15 engineers has education background above bachelor, further education mechanism is another driving force of ISHINELUX’S development.
6. OEM&ODM service available.
Quality Warranty:
1. We offer 3 years warranty for ISHINELUX LED lights.
2. All products are gone through strict test by our experienced QC before shipment. For any after-sales compliant, ISHINELUX shoulders the responsibility to solve it properly till customer is satisfied.
3. Quality guarantee is based on storing, installing, operating and maintaining correctly in the normal operation conditions. It is not included in our maintaining range when installing inappropriately, breaking the operating rules, and leading to the products damaging. But ISHINELUX will try every effort to help customers under these circumstances.
4. ISHINELUX will maintain the right to either repair, parts replacing, or products exchange during the quality warranty period.
