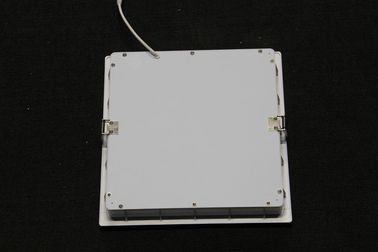

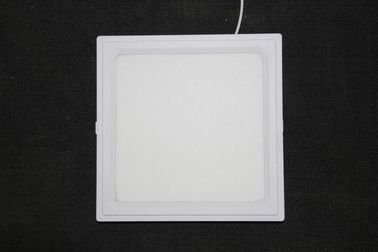

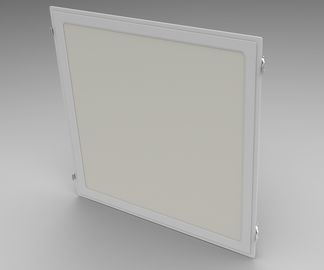

Square Slim LED Panel Light 300 x 300

Square Slim LED Panel Light 300 x 300
Square Slim LED Panel Light 300 x 300 Square Slim LED Panel Light 300 x 300 Square Slim LED Panel Light 300 x 300

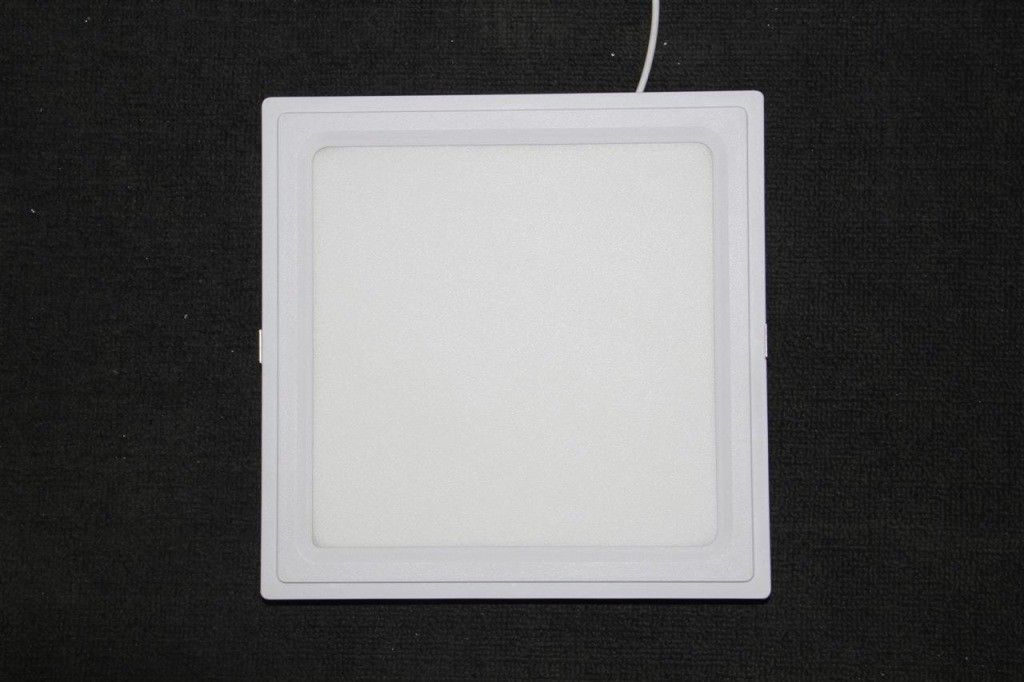

Large Image :  Square Slim LED Panel Light 300 x 300

Product Details:
Place of Origin: China
Brand Name: Ground Halo
Certification: TUV, CE, RoHs
Model Number: GH-PLB-3030-15W
Compatible: SAA, UL
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: EXW / FOB / CNF / CIF
Packaging Details: Packing with foam and bubble wrap
Delivery Time: 7 Days
Payment Terms: T/T, PayPal, Western Union,
Supply Ability: 10,000PCS Per Month
Detailed Product Description
High Light:

led panel lights for home

,

slim LED Panel Light

Square Slim LED Panel Light 300 x 300



Quick Detail:



  1. Product Model: GH-PLB-3030-15W
  2. Luminous Way: Backlit
  3. Product Size: 295mm x 295mm x 42mm
  4. Led Brand: Epistar
  5. LED Source: SMD3014
  6. Color Temperature: Warm White / Nature White / Cold White
  7. Life Span: 50,000Hours
  8. Voltage: AC85V-265V 50/60HZ
  9. Warranty: 3 Years
  10. Wattage: 15W
  11. Diffuser: Japanese Import
  12. Lighting Transmittance Efficiency: Up to 93%
  13. Driver: Isolated Constant Current Driver (GS/SAA/CE approval)
  14. Protection Rate: IP50
  15. Certificate: CE, RoHs, TUV, GS
  16. Compatible: SAA, UL





Description:



GH-PLB-3030-15W Backlit LED Panel Light Fixture with 121 PCS 3014SMD LEDs, produces up to 1,500 lumens, available in Cool White, Natural White, or Warm White. It equip with Japanese Imported High Quality Diffuser, Optical Lens, Aluminum Heat Sink, Italian Design along with Isolated Constant Current LED driver and Taiwanese Super Bright Epistar Chip. We are boast to have plastic frame with outstanding heat dissipation. Designed for residential and commercial conventional suspended grid ceilings for new construction applications or retrofitting existing fluorescent troffer light fixtures. With stable high lumen, 120-degree beam angle, it's typically designed for Commercial Lighting. Moreover, this product is TUV, SAA, CE approved.





More Details:



Backlit, Japanese Imported Diffuser, integrate our engineers’ dedicated development, compose a remarkable LED Panel Lighting fixture.



Benefit from White polish plastic frame, this Backlit LED Panel Light still is easy to be suspended although it’s backlit (thickness: 42mm). Moreover, the whole panel is looked more upmarket.



Elegant and Elaborately design. Every detail is in result of our engineers' delicate workmanship and continuing efforts.



The luminous flux has been dramatically improved, compare to side lit LED Panel Light. It’s great to apply as commercial Lighting, and those other places need bright light.







Specification:



A: Technical Parameter

Item  No.

GH-PLB-3030-15W

Dimension

295x295x42mm

Voltage

AC85V-265V  50/ 60HZ

Power

15W

LED  Type

SMD3014

LED  Quantity

121PCS



Luminous Flux

Warm  white

> 1125 lm

Neutral  white

> 1200 lm

Pure White

> 1275lm



Color  Temperature

(CCT)

Warm  white

2800-3500K

Neutral  white

3800-4500K

Pure White

5500- 6500K

Beam Angle

120°

Color  Rendering  Index  (CRI)

Ra 80

Power  Supply  Efficiency

>90%

LED  Luminous  Efficiency

Up  to  110 lm/W

Power  Factor  (PF)

>0.95

Total Harmonic Distortion  (THD)

≤15%

IP Rank

IP  50

Net weight

0.56kgs

Certificate

TUV/CE/RoHS



B: Mechanical Specifications

LED Driver

Isolated Constant Current LED Driver

Connection  to  Power

2X1.0mm 2PVC Cable

Housing  Processing

White  Paint  Coating

Material

PMMA, Plastic  housing

Cover

Frosty  Front Cover



Installation  Component Set

1. Recessed Installation, YES

2.Suspend Installation, Optional



C: Environmental

Temperature  Range  Operating

-20℃ to 40℃

Humidity  Range  Operating

20 % to 95 %

Temperature  Range Storage

-40℃ to 75℃

Humidity  Range Storage

10 % to  80 %





Dimension:

Square Slim LED Panel Light 300 x 300 0







Light Distribution Curve & Max CD Distribution Curve:



Square Slim LED Panel Light 300 x 300 1





Illumination  Diameter:



Square Slim LED Panel Light 300 x 300 2





Electrical Connection:



Square Slim LED Panel Light 300 x 300 3





Installation:



Warning: Before installation, please make sure the power is turned off.



A. The standard False Ceiling Installation

Square Slim LED Panel Light 300 x 300 4

Step1:Opening the false ceiling





Square Slim LED Panel Light 300 x 300 5



Step2:Install the panel light








Square Slim LED Panel Light 300 x 300 6

Step3:Connect the wire for panel










B . The embedded installation

Square Slim LED Panel Light 300 x 300 7

Step1.To Saw a hole according the panel holing demension





Square Slim LED Panel Light 300 x 300 8



Step2.Install the panel in the hole of ceiling








Square Slim LED Panel Light 300 x 300 9

B . The embedded installation










C.The suspended installation

Square Slim LED Panel Light 300 x 300 10

1.To drill the holes on the Ceiling,Fix the components with screws on the Ceiling.

Square Slim LED Panel Light 300 x 300 11

2.To fix the steel rope at the panel suspended  components








Square Slim LED Panel Light 300 x 300 12

3.To adjust the panel height.

Square Slim LED Panel Light 300 x 300 13

C.The suspended installation












Packing Information:



Material

QTY/ CTN

Carton  Size

G.W.

Carton

1pcs

348X305X60mm

0.82kg



Material

QTY/ CTN

Carton  Size

G.W.

Carton

10pcs

630X360X334mm

8.5kg



Packing Details:



Square Slim LED Panel Light 300 x 300 14





Drop and Impact Test:



  1. Each edge (as chart below) has been  tested.
  2. The appearance and Performance of the LED Panel Light  has  been rechecked  after the Test.



Square Slim LED Panel Light 300 x 300 15





Application:





Shopping Mall, Supermarket, Office, School, Library, Bathroom, Kitchen, Department Store, Restaurant, Cafeteria, Hospital, Laboratory, and Conference Room etc.



Square Slim LED Panel Light 300 x 300 16

Square Slim LED Panel Light 300 x 300 17

Square Slim LED Panel Light 300 x 300 18





Warranty:



3-year warranty since the date of purchase is offered for all Backlit Panel Light.





Term of Warranty:



  • Under terms of this warranty, if the product has a failure occurring under normal usage within warranty period, Ground Halo will provide free maintenance service based on the proof- documents and invoice (copy) of failure product.
  • Ground Halo will not provide paid maintenance service by under conditions within warranty.
    • Failure or damage due to force majeure.
    • Failure or damage due to transport or unloading.
    • Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
    • Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
  • Please deliver the failure product by original packing for maintenance service, Ground Halo will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
  • Ground Halo reserves the right for final explanation of aforesaid terms.



Caution : Ground Halo will not be responsible for any other failure or damage by incorrectly usage.





Term of Trade:



1. Payment: T/T 30% deposit, 70% before shipment ,L/C ,western union or paypal.
2. Lead time : Within 7-20 working days after receiving the deposit
3. Samples: Can be ready in 5 working days once payment received
4. Shipping port: Shenzhen, China
5. Discounts : We offer discount for large quantity
6. Packaging: Neutral package, also can be customized according to customer requirements of Logo, Brand etc.
