Product Details:
Payment & Shipping Terms:
|
| High Light: | LED flat panel ceiling lights,LED flat panel lighting |
||
|---|---|---|---|

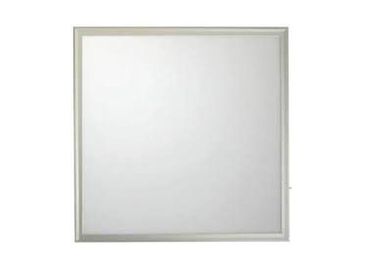

595x595mm 3050lm Slim LED Flat Panel Lights CRI 85 For Office Decoration
Quick Detail:
1. Slim boarder design, elegant appearance, 9.5mm thickness only
2. Mitsubishi light guidance plate
3. Laser engraving treatment
4. Even light and no dark spot, efficacy > 80 LM/W
5. CE RoHS TUV UL compliant
6. 3 years warranty
7. Up to 70% energy savings
Features:
Pure aluminum frame, bright silver processing, good heat dissipation, high-grade appearance
Imported LGP from Japan, even and soft light, the light guide light rate is 85% above
High efficiency constant current driver can reach more than 90%, PF>0.92
No infrared and ultraviolet radiation, low heat radiation
AC90V ~ 265V voltage, external constant current drive power, safe and reliable
Easy and concise installation
Even light & no dark spot
Lifespan over 45,000 hrs
Specifications:
|
Product name |
Wattage |
Voltage |
Size |
Power Factor |
CRI |
Luminous Flux |
CCT |
Lifetime |
|
FLT-PS-L0306-18 |
18 |
90~265 |
295*595 |
>0.9 |
>80 |
1650 |
2700~6800 |
45,000 |
|
FLT-PS-L0306-25 |
25 |
90~265 |
295*595 |
>0.9 |
>80 |
2150 |
2700~6800 |
45,000 |
|
FLT-PS-L0606-36 |
36 |
90~265 |
595*595 |
>0.9 |
>80 |
3050 |
2700~6800 |
45,000 |
|
FLT-PS-L0606-48 |
48 |
90~265 |
595*595 |
>0.9 |
>80 |
4050 |
2700~6800 |
45,000 |
|
FLT-PS-L0312-36 |
36 |
90~265 |
295*1195 |
>0.9 |
>80 |
3050 |
2700~6800 |
45,000 |
|
FLT-PS-L0612-72 |
72 |
90~265 |
595*1195 |
>0.9 |
>80 |
6100 |
2700~6800 |
45,000 |
Connection diagram
Installation of the super slim LED panel light has to be done by professional electrician to ensure the
lifting strength to prevent the LED panel light falling from ceiling.
Cautions:
1,The lamps must be used with the manufacturer appointed power driver
2,You have to cut off electricity to avoid electric shock before installation.
3,Do not use the product in the high humidity or dust environment, including but not limited to
the following environment: bathroom, sauna room, polishing workshop.
Applications:
General Lighting of Offices, Schools, Factory, Hospitals, Library, Supermarkets, Shopping Malls, Amusement Casinos, Art Galleries, Display and Residential Applications...
