Product Details:
Payment & Shipping Terms:
|
| Housing Material: | Aluminum 6063 +PMMA | LED Quantity: | 80 Pcs (3014 SMD LED) |
|---|---|---|---|
| Input Voltage: | AC85-265V | Power Factor:: | ≥ 0.95 |
| CRI: | > 75Ra (white Warm White) | Color Temperature: | 2800K-7000K, Or Customized |
| Beam Angle: | 155° | Life Span: | 50000hours |
| High Light: | led flat panel light,led recessed panel lights |
||
Specifications :
| Housing Material: aluminum 6063 +PMMA | Dimension: Φ300mm*600mm*11mm |
| Power Supply: 18 W | CRI: > 75Ra (white warm white) |
| LED Quantity: 160pcs (3014 SMD LED) | Power Factor: ≥ 0.95 |
| Efficacy: 110LM/W | Color Temperature: 2800K-7000K, or customized |
| Input Voltage: AC85-265V | Environment Temperature: -20 ℃~ +40℃ |
| Life Span: 50000hours | Net Weight : 3300g/pcs |
| Work Frequency: 50-60Hz | Gross Weight /Size: 308*612*15mm 3.45g/pcs |
| Installation: embedded ceiling | carton/Weight(pcs/kg): 312*615*68mm 4pcs/15.2kg |
| Beam angle: 155° | Certification: CE, RoHs |
| Luminous Flux: 1080-1180 LM | warranty: 3 years |
Quick Detail:

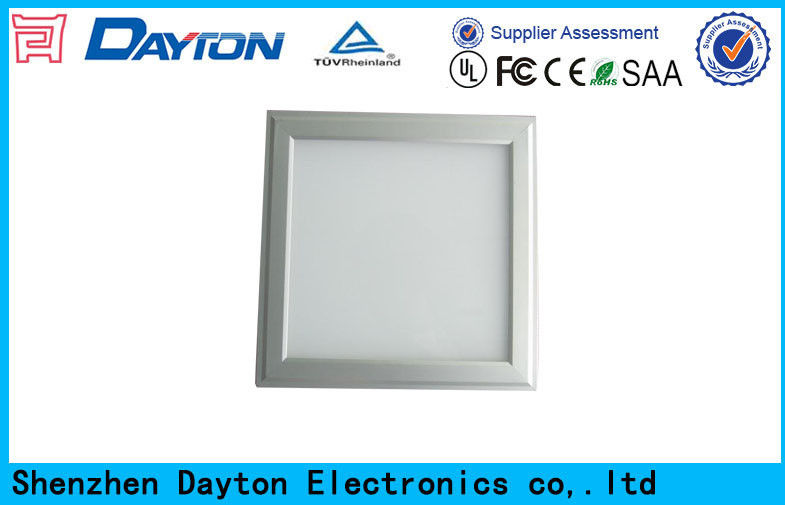

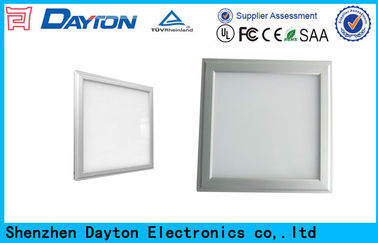

Description:
LED panel light is a high-end interior lighting, its external borders formed by the aluminum alloy pass by anodic
oxidation. The light source is LED, the panel light with simple and beautiful design, atmosphere deluxe, good
lighting effects, but also brings US feelings. LED panel lights with special design, the light through high
transmittance light panel lead to form a uniform surface glow, good illumination uniformity, soft lighting,
comfortable yet bright, can relieve eye fatigue
150x150mm 200x200mm 300x300mm 600x600mm 300x600mm 300x1200mm 600x1200mm
10w 12w 18w 27w 36w 54w 72w LED PANEL LIGHT for your choose
Applications:
Commercial Lighting, such as supermarket, shopping mall, etc…
