Product Details:
Payment & Shipping Terms:
|
| High Light: | Square LED Panel Light,led recessed panel lights |
||
|---|---|---|---|

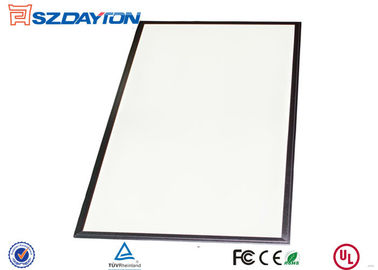

Modern Home 72 Watt White Led Suspended Ceiling Light Panel / Led Flat Panel Lights
Quick Detail:
1) Power:60W
2) Size : 600*1200*12mm
3) Voltage : AC85-265V
4) Work Frequency:50-60Hz
5) Lumen flux: 5400±50lm
6) CCT:2700K-3300K 4000K-4500K 5500K-7000K
7) Beam angle : 155°
8) Certificate : CE , RoHS , TUV , UL
9) CRI: ≥75
10) Lifespan : 50000hrs
11) Warranty : 3 years
12) Main material : Aluminum+PMMA
13) Power Factor: ≥ 0.95
Description:
1. Heat-sink , ultr-thin fixture design with 12mm thickness
2. Optical PMMA diffusion plate make the light soft and uniform
3. High quality imported light guide plate make high light transmission
4. Aluminum frame make no light leaking
5. CE approved driver with open circuit , short circuit , overland protection
6. Female and male lockable connectors
7. Elegant and superior appearance
8. Contains no lead, glass or mercury -RoHS compliant
9. Working temperature:-20℃-40℃ ,IP44
10. Triac dimmable , 0-10V dimmable , DALI dimmable
11. 3 years warranty
Technical Specifications:
|
Housing Material: aluminum 6063 +PMMA |
Dimension: Φ600mm*1200mm*11mm |
|
Power Supply: 72W |
CRI: > 75Ra (white warm white) |
|
LED Quantity: 480 pcs (3014 SMD LED) |
Power Factor: ≥ 0.95 |
|
Efficacy: 110LM/W |
Color Temperature: 2800K-7000K, or customized |
|
Input Voltage: AC85-265V |
Environment Temperature: -20 ℃~ +40℃ |
|
Life Span: 50000hours |
Net Weight : 1300g/pcs |
|
Work Frequency: 50-60Hz |
Gross Weight /Size: 1220*608*15mm 9340g/pcs |
|
Installation: embedded ceiling |
carton/Weight(pcs/kg): 1228*610*32mm 2pcs/19.3kg |
|
Beam angle: 155° |
Certification: CE, RoHS |
|
Luminous Flux: 5400-5760lm |
warranty: 3 years |
Competitive Advantage:
1) NO hazardous material
2) Soft and uniform light , good for eyes
3) Leading power source design and long lifespan.
4) Environmental protection and high brightness
5) Instant lighting when switch is on , no flicker , no dark side
6) Without infrared, ultraviolet and no heating effect.
7) Ultra-thin & ultra light with fine circuit design.
Single dead LED won't affect overall lighting effect and lifespan.
8) Side lighting is homogeneous & soft and comfortable&bright.It can alleviate eyes' fatigue
with wider lighting angle.
9) Concise , vogue , pretty , elegant performance
10) Fast&convenient installation.
11) The constant-current drive can still guarantee the normal operation of panel lamp during unstable voltage.
12) CE RoHS FCC TUV approved
13) New Wifi dimmable , Android or iOS
Production view :
Package :
Applications :
1. Office Lighting
2. Commercial lighting
3. Warehouse lighting
4. Home lighting
5. Hotel Lighting
5. School lighting
6. Super market
7. Corrider
