Product Details:
Payment & Shipping Terms:
|
| LED Chip: | Epistar 3014/2835 | Voltage: | AC85-265V |
|---|---|---|---|
| Power: | 54W | Size: | 620*620*12mm |
| Beam Angle: | 155° | Certificate: | CE RoHS TUV |
| High Light: | Square LED Panel Light,led recessed panel lights |
||

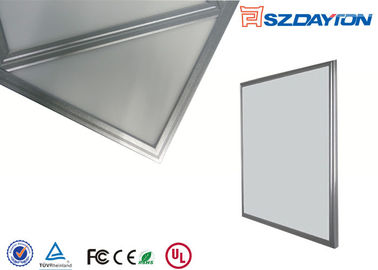

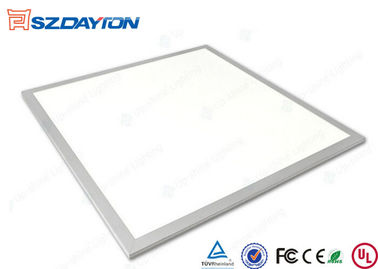

High Power Bedroom Led Flat Panel Ceiling Lights 620 x 620 mm German Standard Size
Quick Detail:
1) Size : 600*600*12mm
2) Power:54W
3) Voltage : AC85-265V
4) Work Frequency:50-60Hz
5) CCT:2700K-3300K 4000K-4500K 5500K-7000K
6) Lumen flux: 27500±50lm
7) Beam angle : 155°
8) Certificate : CE , RoHS , TUV , UL
9) CRI: ≥75
10) Lifespan : 50000hrs
11) Warranty : 3 years
12) Main material : Aluminum frame+PMMA cover
13) Power Factor: ≥ 0.95
Description:
1. Ultra-thin profile with 12mm
2. Diffused lens gives an evenly illuminated appearance
3. Professional thermal design, its life span up to 50,000hours
4. Special processing for surface aluminum frame with rounded corner, make sure safety
5. High brightness, the maximum light output can reach 85lm/w
6. Low maintenance & Easy installation
7. Elegant and superior appearance
8. Contains no lead, glass or mercury -RoHS compliant
9. Working temperature:-20℃-40℃ ,IP44
10. Triac dimmable , 0-10V dimmable , DALI dimmable
11. 3 years warranty
Technical Specifications:
|
Housing Material: aluminum 6063 +PMMA |
Dimension: Φ300mm*300mm*11mm |
|
Power Supply: 54 W |
CRI: > 75Ra (white warm white) |
|
LED Quantity: 480 pcs (3014 SMD LED) |
Power Factor: ≥ 0.95 |
|
Efficacy: 110LM/W |
Color Temperature: 2800K-7000K, or customized |
|
Input Voltage: AC85-265V |
Environment Temperature: -20 ℃~ +40℃ |
|
Life Span: 50000hours |
Net Weight : 1300g/pcs |
|
Work Frequency: 50-60Hz |
Gross Weight /Size: 608*608*15mm 1330g/pcs |
|
Installation: embedded ceiling |
carton/Weight(pcs/kg): 612*612*49mm 3pcs/16.2kg |
|
Beam angle: 155° |
Certification: CE, RoHs |
|
Luminous Flux: 3850-4150 LM |
warranty: 3 years |
Competitive Advantage:
1) NO hazardous material
2) Soft and uniform light , good for eyes
3) Leading power source design and long lifespan.
4) Environmental protection and high brightness
5) Instant lighting when switch is on , no flicker , no dark side
6) Without infrared, ultraviolet and no heating effect.
7) Ultra-thin & ultra light with fine circuit design.
Single dead LED won't affect overall lighting effect and lifespan.
8) Side lighting is homogeneous & soft and comfortable&bright.It can alleviate eyes' fatigue
with wider lighting angle.
9) Concise , vogue , pretty , elegant performance
10) Fast&convenient installation.
11) The constant-current drive can still guarantee the normal operation of panel lamp during unstable voltage.
12) CE RoHS FCC TUV approved
13) New Wifi dimmable , Android or iOS
Production view :
Package :
Applications :
1. Office Lighting
2. Commercial lighting
3. Warehouse lighting
4. Home lighting
5. Hotel Lighting
5. School lighting
6. Super market
7. Corrider
